GE AEM06LVQ1 Room Air Conditioner Portable

Model: AEM06LVQ1

Back To Assemblies

Save Part Not Listed?
product name

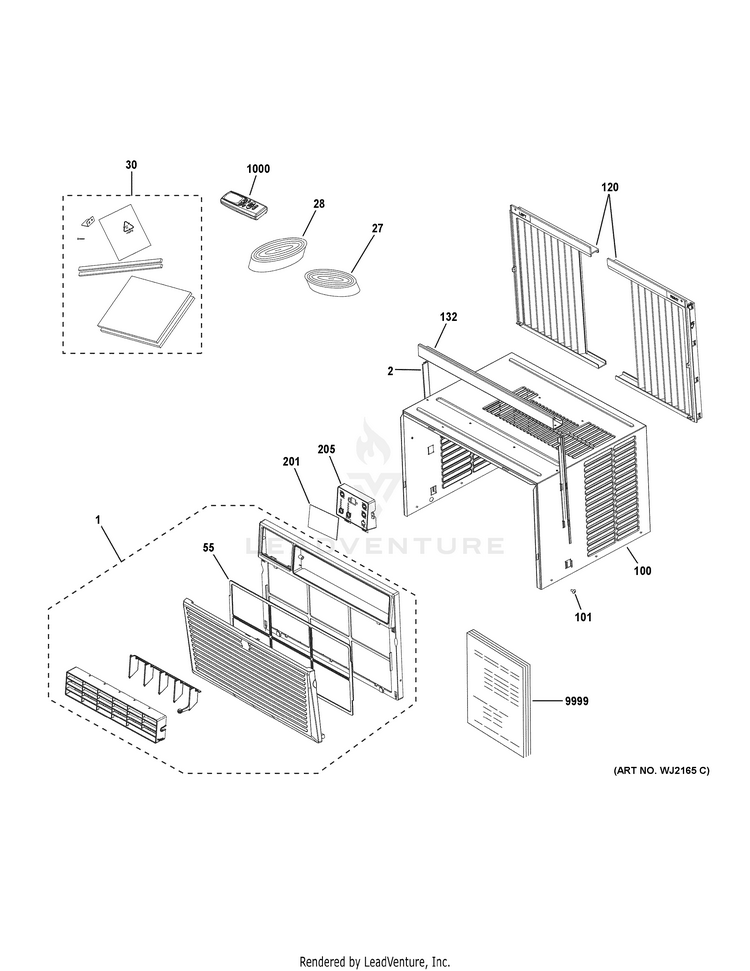

GRILLE & CHASSIS PARTS

...
...
1
PANEL ASM, FRONT GEH-WJ82X10084
...
2
CONNECTION BAR TO CABINE GEH-WJ66X10084
...
27
GASKET SEAL 1 GEH-WJ43X10073
...
28
GASKET SEAL 2 GEH-WJ43X10074
...
30
HARDWARE ASM, INSTALL GEH-WJ01X10349
...
55
FILTER SUB-ASSY GEH-WJ71X10657
...
100
CABINET ASM GEH-WJ90X10123
...
101
SCREW ST4.2X9.5 TC GEH-WJ01X20240
...
120
CURTAIN ASM GEH-WJ01X10353
...
132
TOP RAIL GEH-WJ66X10083
...
201
ESCUTCHEON GEH-WJ07X20239
...
205
ELECTRIC CONTROLLER BOX GEH-WJ07X20251
...
1000
REMOTE CONTROL GEH-WJ26X20522
...
9999
PM OWNERS MANUAL GEH-49-7751-1
...
9999
PM MINI-MANUAL GEH-31-30769
