GE AEL24DXL1 Room Air Conditioner Built In

Model: AEL24DXL1

Back To Assemblies

Save Part Not Listed?
product name

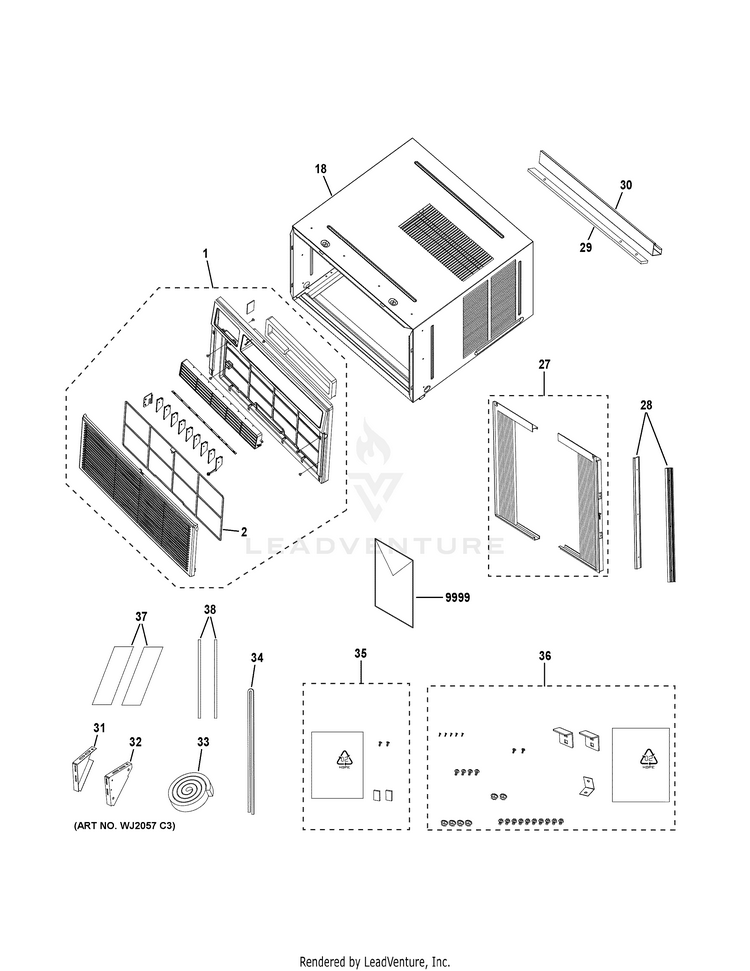

GRILLE & CHASSIS PARTS

...
...
1
PANEL ASM, FRONT GEH-WJ82X10085
...
2
FILTER GEH-WJ71X10710
...
18
CABINET ASSY GEH-WJ90X20542
...
27
CURTAIN ASM GEH-WJ69X10017
...
28
SUPPORT, CABINET GEH-WJ68X10064
...
29
TOP GUIDE GEH-WJ82X10069
...
30
FORM GASKET GEH-WJ43X10082
...
31
BRKT, CASE MOUNT LH GEH-WJ67X20197
...
32
BRKT, CASE MOUNT RH GEH-WJ67X20198
...
33
FORM GASKET 1 GEH-WJ43X10079
...
34
FORM GASKET 2 GEH-WJ43X10080
...
35
HARDWARE KIT GEH-WJ01X10415
...
36
INSTALLATION HARDWARE GEH-WJ01X21257
...
37
R1 SEALING SPONGE GEH-WJ43X21258
...
38
ACCORDIAN PANEL SEAL GEH-WJ43X21200
...
9999
PM USE & CARE GEH-49-7799
