GE AEG18DZL1 Room Air Conditioner Built In

Model: AEG18DZL1

Save Part Not Listed?
product name

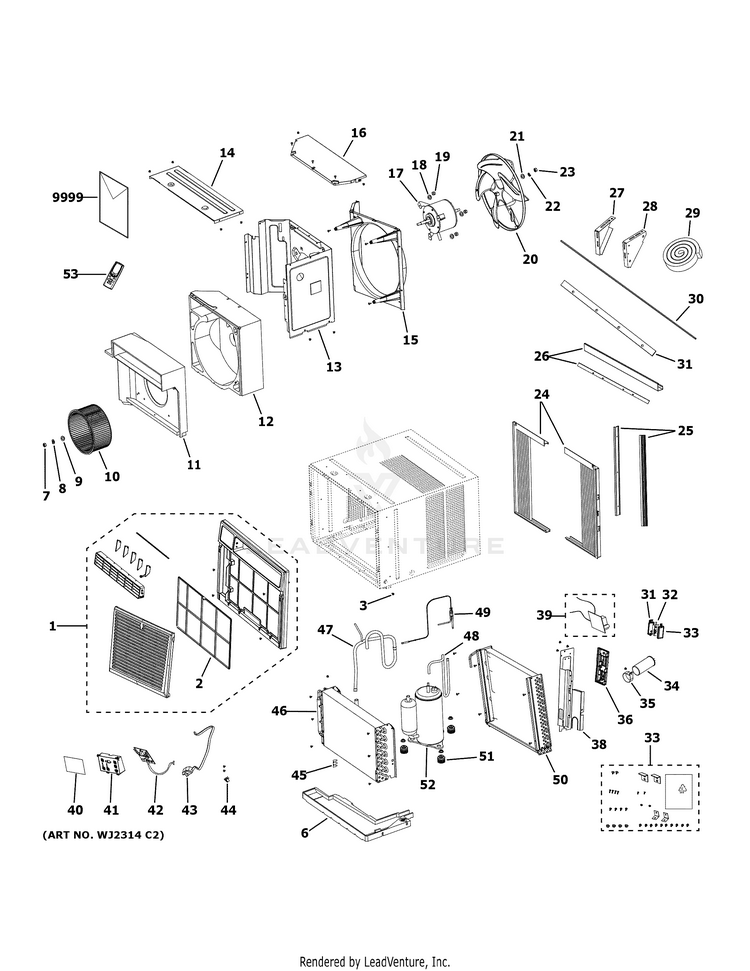

ROOM AIR CONDITIONER

...
...
1
FRONT PANEL ASSY GEH-WJ82X30608
...
2
FILTER GEH-WJ85X25180
...
3
SCREW ST4.2X9.5 TC GEH-WJ01X25815
...
6
FOAM (WATER TRAY) GEH-WJ05X20192
...
7
WASHER(DIA 6MM) GEH-WJ01X10347
...
8
WASHER GEH-WJ01X10313
...
9
NUT WITH WASHER GEH-WJ01X10314
...
10
CENTRIFUGAL FAN GEH-WJ73X25853
...
11
FOAM (AIR OUTLET) GEH-WJ76X10307
...
12
PROPELLER HOUSING GEH-WJ76X10308
...
13
SUPPORT BRACKET, MOTOR GEH-WJ66X10104
...
14
TOP COVER GEH-WJ79X10274
...
15
CONDENSER COVER GEH-WJ79X10216
...
16
TOP COVER (REAR) GEH-WJ79X10217
...
17
MOTOR, FAN GEH-WJ94X10331
...
18
SPRING WASHER(DIA 6MM) GEH-WJ01X10373
...
19
NUT GEH-WJ01X10329
...
20
AXIAL FLOW FAN GEH-WJ73X10190
...
21
GASKET (DIA 8MM) GEH-WJ43X10076
...
22
GASKET (DIA 8MM) GEH-WJ43X10077
...
23
NUT (M8)(LEVO) GEH-WJ01X10374
...
24
FIXING FRAME SUB ASSY GEH-WJ65X30609
...
25
CURTAIN QUICKSET GEH-WJ69X30610
...
26
TOP GUIDE GEH-WJ65X30604
...
27
SUPPORT TRIANCLE LEFT GEH-WJ65X30606
...
28
SUPPORT TRIANCLE RIGHT GEH-WJ65X30605
...
29
FORM GASKET 1 GEH-WJ43X10079
...
30
HARDWARE ASM, INSTALL GEH-WJ01X10376
...
31
WIFI BOX GEH-WJ26X21302
...
32
WiFi MODULE GEH-WJ26X25774
...
33
WIFI BOX COVER GEH-WJ76X21303
...
34
CAPACITOR CLAMP GEH-WJ02X10034
...
35
CAPACITOR GEH-WJ20X10207
...
36
BOARD MOUNT GEH-WJ26X24833
...
38
FRONT CLAPBOARD 2 GEH-WJ05X20553
...
39
MAIN BOARD GEH-WJ26X25855
...
40
MEMBRANE GEH-WJ01X25834
...
41
ELECTRIC CONTROLLER BOX GEH-WJ26X25854
...
42
DISPLAY BOARD GEH-WJ26X25776
...
43
POWER CORD GEH-WJ35X10167
...
44
CABLE CLAMP GEH-WJ01X25833
...
45
SENSOR INSERT GEH-WJ01X10330
...
46
EVAPORATOR ASSY GEH-WJ88X20554
...
47
SUCTION TUBE SUB-ASSY GEH-WJ57X20556
...
48
DISCHARGE TUBE GEH-WJ49X20551
...
49
CAPILLARY SUB-ASSY GEH-WJ53X20552
...
50
CONDENSER ASM GEH-WJ26X10355
...
51
RUBBER GROMMET GEH-WJ01X10380
...
52
COMPRESSOR AND FITTINGS GEH-WJ98X20555
...
53
REMOTE CONTROL GEH-WJ26X24768
...
9999
PM OWNERS MANUAL GEH-49-5000434
...
9999
PM MINI MANUAL AND WIRING GEH-31-5000456
