GE AEE23DNL1 Room Air Conditioner Built In

Model: AEE23DNL1

Save Part Not Listed?
product name

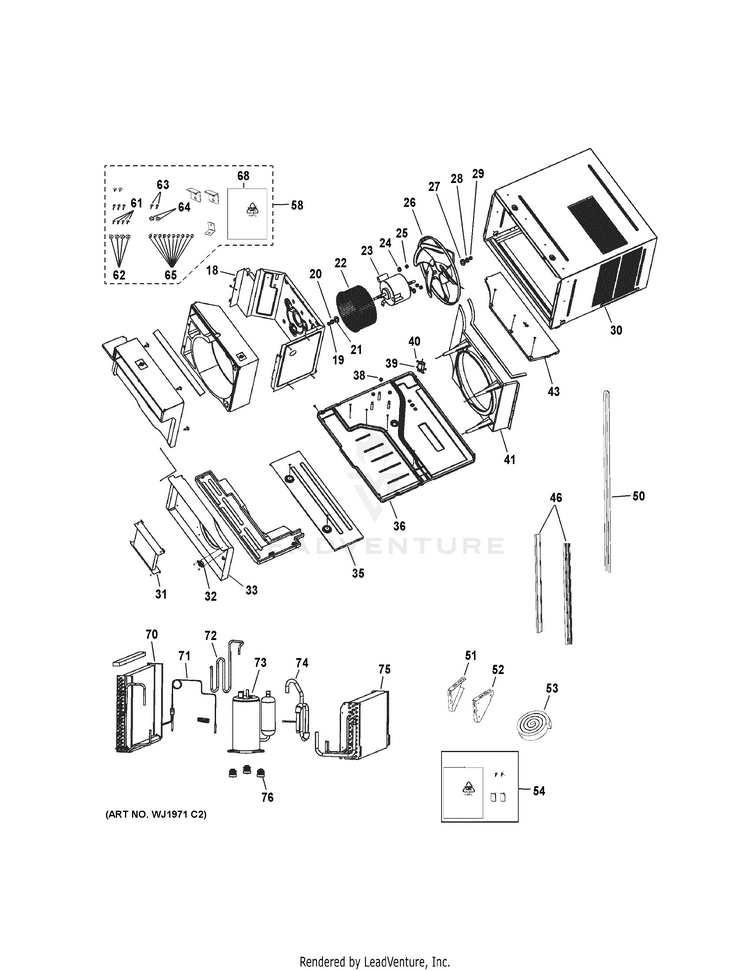

CABINET & COMPONENTS

...
...
18
MOTOR SUPPORTING GEH-WJ82X10068
...
19
NUT - WASHER GEH-WJ01X10265
...
20
WASHER GEH-WJ01X10266
...
21
GASKET (DIA 10MM) GEH-WJ43X10075
...
22
CENTRIFUGAL FAN GEH-WJ73X10189
...
23
FAN MOTOR GEH-WJ95X10028
...
24
SPRING WASHER(DIA 6MM) GEH-WJ01X10373
...
25
NUT GEH-WJ01X10329
...
26
AXIAL FLOW FAN GEH-WJ73X10190
...
27
GASKET (DIA 8MM) GEH-WJ43X10076
...
28
GASKET (DIA 8MM) GEH-WJ43X10077
...
29
NUT (M8)(LEVO) GEH-WJ01X10374
...
30
CABINET ASM GEH-WJ90X10135
...
31
ELECTRIC HEATER GEH-WJ27X10118
...
32
TCO GEH-WJ26X10331
...
33
ELEC HEATER COVER GEH-WJ79X10243
...
35
TOP PLATE GEH-WJ79X10244
...
36
SELF-TAPPING SCREW GEH-WJ01X10352
...
38
NUT WITH WASHER M8 GEH-WJ01X10335
...
39
DRAIN VALVE GEH-WJ58X10042
...
40
SCREW ST4.2X6.5 GEH-WJ01X10370
...
41
CONDENSER COVER GEH-WJ79X10245
...
43
TOP PLATE GEH-WJ79X10246
...
46
CABINET SUPPORT GEH-WJ66X10092
...
50
FORM GASKET 2 GEH-WJ43X10080
...
51
BRKT, CASE MOUNT LH GEH-WJ67X10002
...
52
BRKT, CASE MOUNT RH GEH-WJ67X10003
...
53
FORM GASKET 1 GEH-WJ43X10079
...
54
HARDWARE KIT GEH-WJ01X10415
...
58
INSTALLATION H\W GEH-WJ01X10416
...
61
BOLT M5X13 GEH-WJ05X10057
...
62
NUT M5X5 GEH-WJ01X10377
...
63
BOLT M6X19 GEH-WJ05X10056
...
64
NUT M6X6 GEH-WJ01X10378
...
65
SCREW M4.8X8 GEH-WJ01X10379
...
68
PLASTIC BAG GEH-WJ01X10350
...
70
CONDENSER ASM GEH-WJ87X10259
...
71
CAPILLARY ASM GEH-WJ53X10229
...
72
DISCHARGE PIPE GEH-WJ62X10015
...
73
COMPRESSOR GEH-WJ98X10292
...
74
SUCTION PIPE GEH-WJ57X10027
...
75
EVAP ASM GEH-WJ88X10239
...
76
RUBBER GROMMET GEH-WJ01X10417

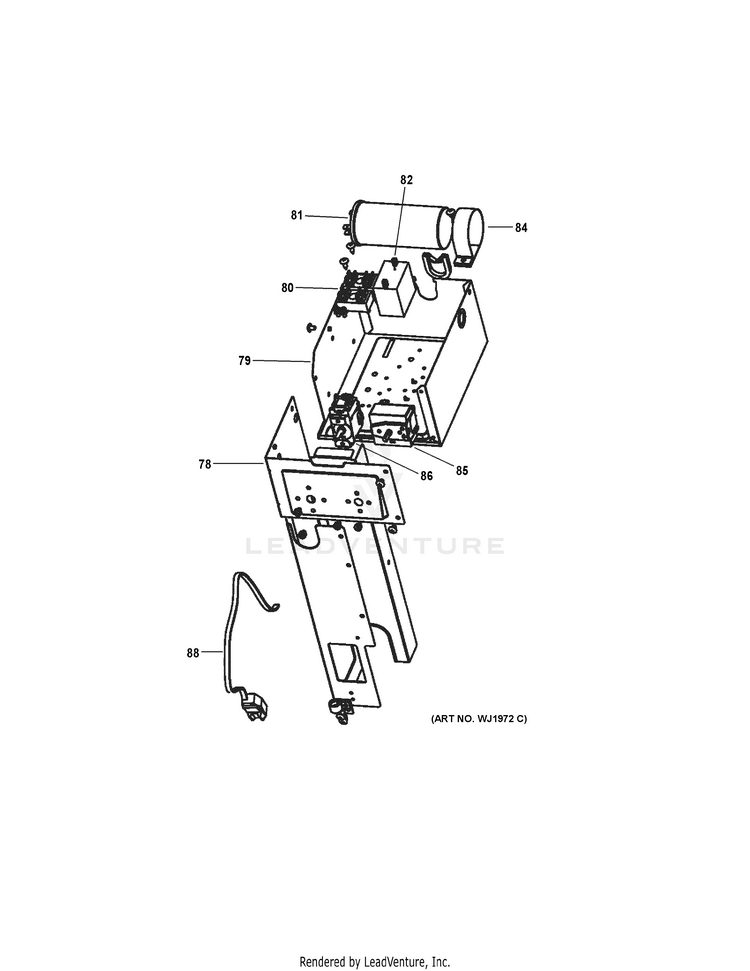

CONTROL PARTS

...
...
78
ELECTRIC BOX SUPPORT GEH-WJ01X10418
...
79
ELECTRIC BOX 1 GEH-WJ07X10256
...
80
TERMINAL BOARD GEH-WJ26X10310
...
81
COMPRESSOR CAPACITOR 45 GEH-WJ20X10163
...
82
FAN CAPACITOR GEH-WJ20X10183
...
84
CAPACITOR CLAMP GEH-WJ02X10034
...
85
MAIN SWITCH GEH-WJ26X10278
...
86
THERMOSTAT GEH-WJ28X10056
...
88
POWER CORD GEH-WJ26X10343

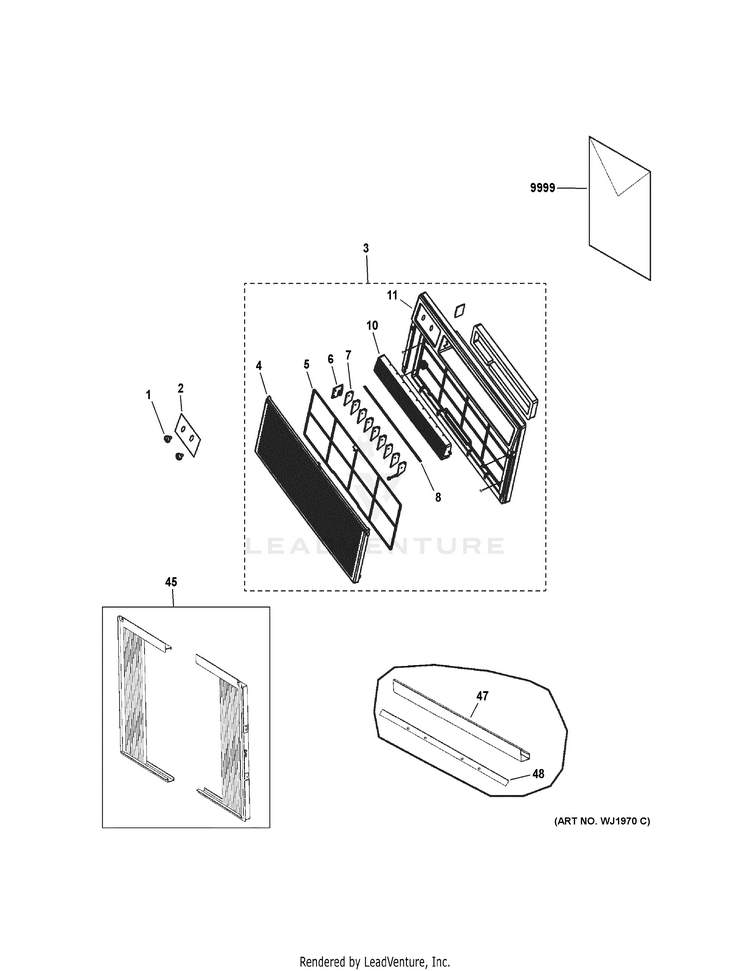

FRONT PANEL, FILTER & FRAME

...
...
1
KNOB ASM GEH-WJ12X10100
...
2
ESCUTCHEON GEH-WJ07X10255
...
3
FRONT PANEL ASM GEH-WJ71X10708
...
4
FRONT PANEL GEH-WJ71X10709
...
5
FILTER GEH-WJ71X10710
...
6
SUPPORT OF LOUVER GEH-WJ01X10310
...
7
SWING LOUVER GEH-WJ71X10711
...
8
LINK VERTICAL LOUVER GEH-WJ71X10712
...
10
AIR GUIDE GEH-WJ70X10065
...
11
FRONT PANEL FRAME GEH-WJ71X10713
...
45
CURTAIN ASM GEH-WJ71X10714
...
47
TOP GUIDE GEH-WJ82X10069
...
48
FORM GASKET GEH-WJ43X10082
...
9999
MINI MANUAL GEH-31-61590
...
9999
PM OWNERS MANUAL GEH-49-7624
