G4318030 Murray - Lawn Tractor (1997)

Model: G4318030

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

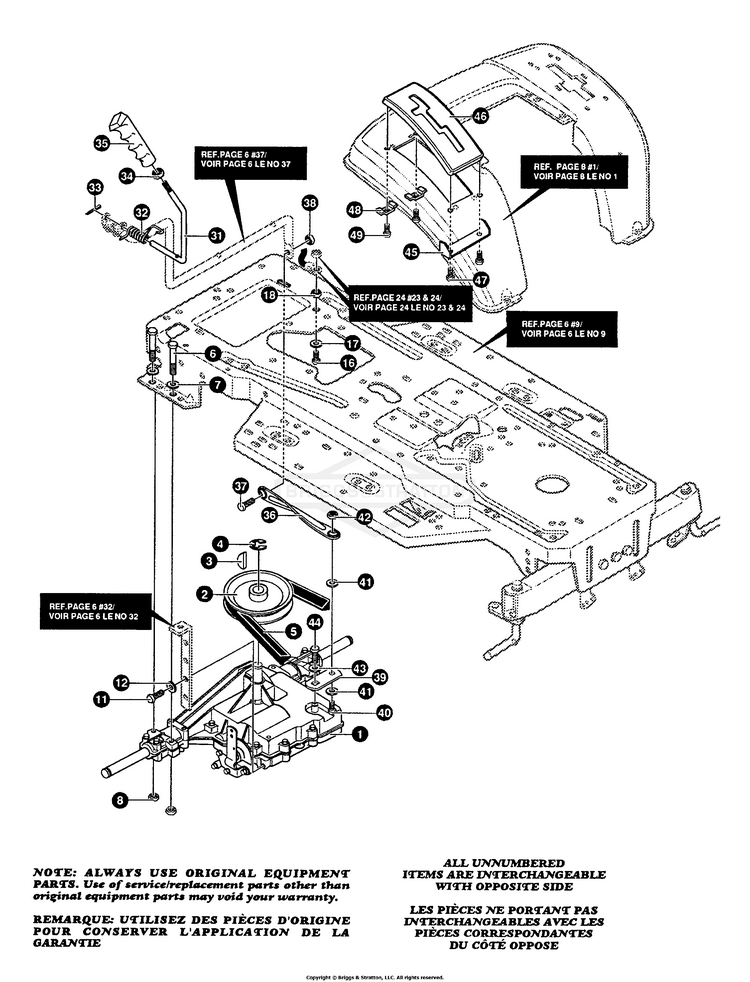

Motion Drive Assembly (part 1)

...
...
2
PULLEY BS-302745MA
...
3
KEY, HI-PRO 606 .75D BS-50795MA
...
4
FITTING, 9/16" O-Ring Straight Swivel BS-5022053
...
5
BELT, V BS-314120MA
...
6
SCREW BS-180091
...
7
WASHER BS-120393
...
8
NUT BS-1498
...
11
SCREW BS-35498
...
12
WASHER BS-120638
...
16
BOLT, 5/16-18 X 3/4" BS-5025011X6SM
...
17
WASHER BS-138538
...
18
NUT BS-1498
...
31
LEVER, SHIFT UPPER BS-324798
...
32
SPRING, TORSION BS-310265
...
33
PIN, COTTER BS-137185MA
...
34
NUT BS-120238
...
35
HANDLE BS-306690MA
...
36
LINK, TIE ROD SHIFT BS-314965
...
37
SCREW BS-180124
...
38
NUT, 3/8-16 BS-703333
...
39
BRACKET, SHIFT BS-309637
...
40
SCREW BS-180124
...
41
WASHER BS-120394
...
42
NUT, 3/8-16 BS-703333
...
43
WASHER BS-57157MA
...
44
SCREW BS-56255
...
45
BRACKET COVER BS-311257-853
...
46
COVER, PLASTIC BS-311209
...
47
SCREW BS-300303MA
...
48
CLAMP, SPRING BS-1341
...
49
SCREW BS-311331
