G4318030 Murray - Lawn Tractor (1997)

Model: G4318030

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

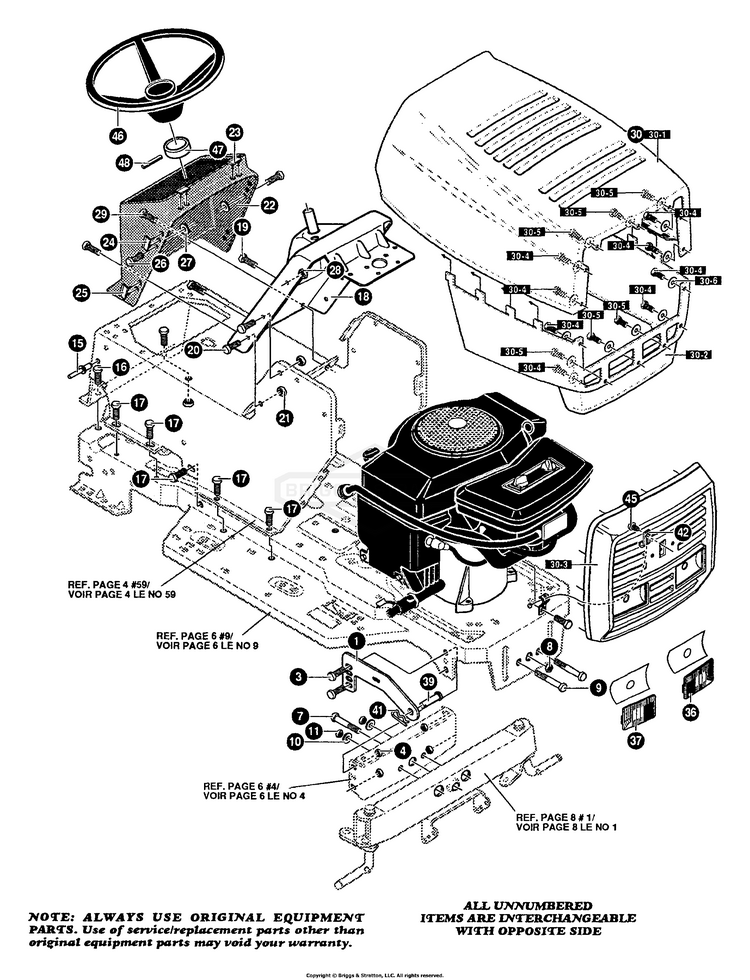

Front Chassis & Hood Assembly

...
...
1
BRACKET, HOOD BS-323068-853
...
3
SCREW BS-56030
...
4
NUT BS-55273MA
...
7
BOLT BS-308207
...
8
NUT BS-309008
...
9
SCREW BS-180138MA
...
10
WASHER BS-2483
...
11
NUT, 3/8-16 BS-703333
...
18
DASH BS-324111-853
...
19
SCREW BS-995346
...
20
SCREW BS-44811MA
...
21
NUT BS-50352
...
22
DASH BS-331891
...
23
BUMPER, HOOD BS-324491
...
24
BUMPER, HOOD BS-324491
...
25
BUMPER, HOOD BS-324492
...
26
SCREW BS-318139
...
27
WASHER BS-996307MA
...
28
NUT BS-1502
...
29
SCREW BS-318304
...
30
HOOD ASSY BS-336500
...
30-1
HOOD BS-331889
...
30-2
SKIRT, HOOD BS-331890
...
30-3
GRILLE BS-331892
...
30-4
SCREW BS-316043
...
30-5
SCREW BS-316881
...
30-6
WASHER BS-1501
...
36
LENS, LH BS-314967
...
37
LENS, RH BS-314968
...
39
PIN, CLEVIS BS-323044
...
41
PIN, HAIR BS-8260
...
42
LANYARD, HOOD BS-328042
...
45
SCREW BS-49050
...
46
STEERING WHEEL BS-330848MA
...
47
SPACER, STEER SHAFT BS-301413MA
...
48
PIN, SPRING BS-456378MA
...
--
OP MANUAL BS-340133
