G4318030 Murray - Lawn Tractor (1997)

Model: G4318030

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

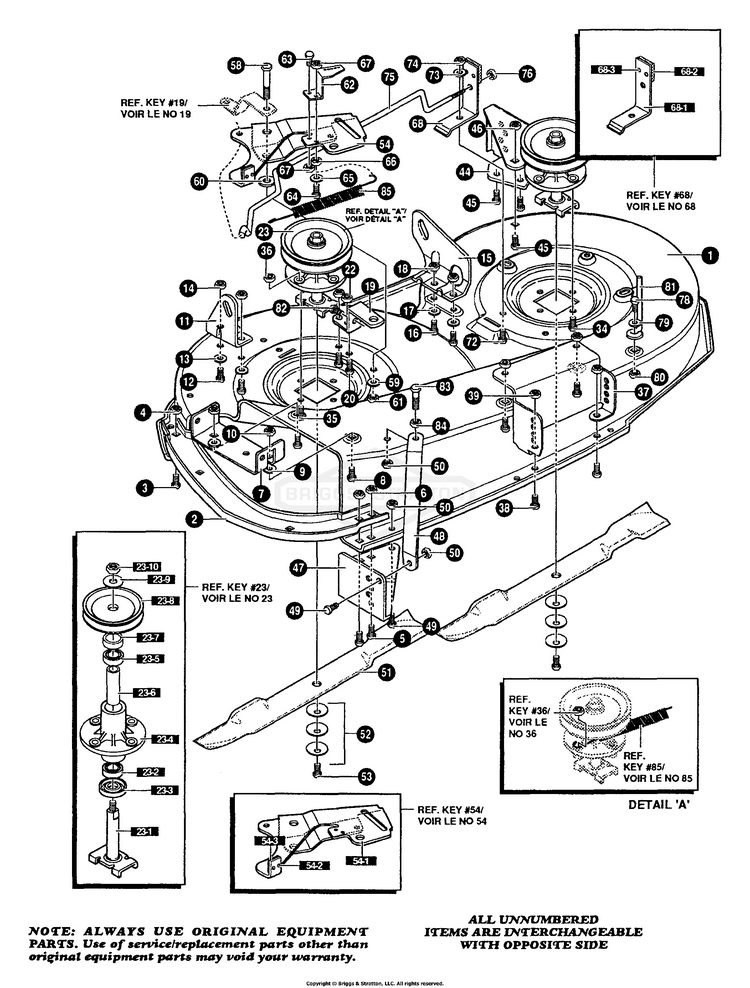

Pre-painted Deck Assembly

...
...
1
43" DECK KIT BS-325116
...
2
TOE GUARD BS-326480
...
3
BOLT, 5/16-18 X 3/4" BS-5025011X6SM
...
4
NUT BS-1498
...
5
BOLT, 5/16-18 X 3/4" BS-5025011X6SM
...
6
NUT BS-1498
...
7
BRKT, CHUTE BS-317017MA
...
8
BOLT, 5/16-18 X 3/4" BS-5025011X6SM
...
9
WASHER BS-120393
...
10
NUT BS-1498
...
11
BRKT, RH, REAR BS-313929MA
...
12
BOLT, 5/16-18 X 3/4" BS-5025011X6SM
...
13
WASHER BS-120393
...
14
NUT BS-1498
...
15
BRKT, LH, REAR BS-310667MA
...
16
BOLT, 5/16-18 X 3/4" BS-5025011X6SM
...
17
WASHER BS-120393
...
18
NUT BS-1498
...
19
BRACE, IDLER BS-326893
...
20
BOLT, 5/16-18 X 3/4" BS-5025011X6SM
...
22
NUT BS-336171
...
23
QUILL ASSY BS-337734
...
23-1
SHAFT BS-56425MA
...
23-2
BEARING, BALL 11/16X1 BS-1705897SM
...
23-3
DUST SHIELD BS-50616MA
...
23-4
QUILL CASTING BS-055547MA
...
23-5
BEARING, BALL 11/16X1 BS-1705897SM
...
23-6
SPACER BS-50818MA
...
23-7
SPACER BS-331067MA
...
23-8
PULLEY BS-333132
...
23-9
WASHER BS-56365MA
...
23-10
NUT BS-1282MA
...
34
SCREW BS-35498
...
35
SCREW BS-300345MA
...
36
NUT BS-1498
...
37
BRACKET FRONT BS-317040MA
...
38
BOLT, 5/16-18 X 3/4" BS-5025011X6SM
...
39
NUT BS-1498
...
44
BRKT, WHEEL, LH BS-317041MA
...
45
BOLT, 5/16-18 X 3/4" BS-5025011X6SM
...
46
NUT BS-1498
...
47
BRKT, WHEEL, RH BS-322464
...
48
BRKT, STABILIZER BS-314282
...
49
BOLT, 5/16-18 X 3/4" BS-5025011X6SM
...
50
NUT BS-1498
...
51
BLADE, 43" BS-330278MA
...
52
WASHER BS-2483
...
53
SCREW BS-47665MA
...
54
IDLER ARM ASSY BS-320576
...
54-1
ARM IDLER BS-322116
...
54-2
RIVET BS-41601
...
54-3
BRAKE PAD BS-306973MA
...
58
BOLT BS-304420MA
...
59
WASHER BS-996416
...
60
WASHER BS-996307MA
...
61
NUT BS-45171MA
...
62
BRKT, EXT IDLER BS-326249
...
63
BOLT, 5/16-18 X 3/4" BS-5025011X6SM
...
64
SCREW BS-180083
...
65
WASHER BS-446363MA
...
66
NUT BS-271184
...
67
NUT BS-1498
...
68
BLADE BRAKE ASSY BS-321828
...
68-1
RIVET BS-135624
...
68-2
BRAKE ARM BS-304119
...
68-3
BRAKE PAD BS-306973MA
...
72
BOLT, 5/16-18 X 3/4" BS-5025011X6SM
...
73
WASHER BS-120393
...
74
NUT BS-1498
...
75
ROD, BRAKE BS-314079
...
76
NUT BS-1502
...
78
SCREW BS-180079
...
79
WASHER BS-120393
...
80
NUT BS-1498
...
81
BELT GUIDE BS-325965MA
...
82
SCREW BS-308231
...
83
SCREW BS-311104
...
84
NUT BS-271184
...
85
SPRING BS-35410
