G4318030 Murray - Lawn Tractor (1997)

Model: G4318030

Back To Assemblies

Save Part Not Listed?
product name

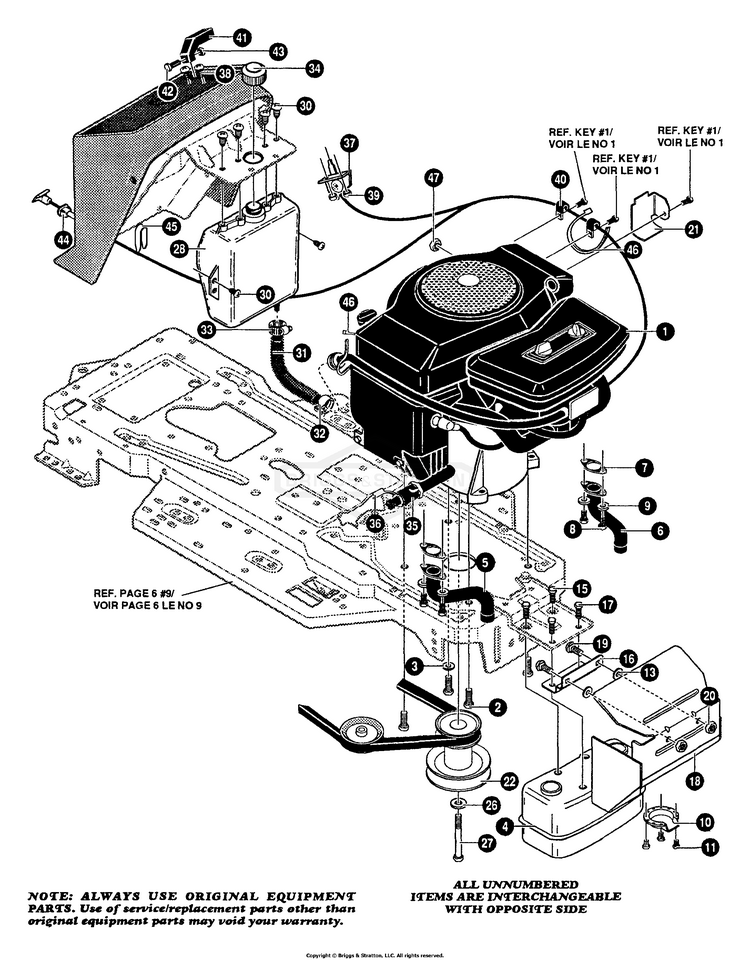

Engine & Control Assembly

...
...
2
SCREW BS-50947
...
3
WASHER BS-138489MA
...
4
MUFFLER BS-305550MA
...
5
EX. TUBE, RH BS-305552
...
6
EX. TUBE, LH BS-305551
...
7
GASKET, MUFFLER BS-056640
...
8
SCREW BS-180020
...
9
SLW, .256X.487X.062 Z BS-7090052SM
...
10
DEFLECTOR, Muffler BS-795036
...
11
SCREW BS-35287
...
13
PUSHNUT BS-309436MA
...
15
SCREW BS-300314
...
16
BRKT, TRANSAXLE BS-9796
...
17
SCREW BS-44811MA
...
18
HEAT SHIELD BS-327938-853
...
19
BOLT, 5/16-18 X 3/4" BS-5025011X6SM
...
20
NUT BS-55273MA
...
21
DEFLECTOR BS-56470-853
...
22
PULLEY, ENGINE BS-328029
...
26
WASHER BS-120383
...
27
SCREW BS-428644MA
...
28
TANK, FUEL BS-314992MA
...
30
SCREW BS-300303MA
...
31
SUSPENSION ARM ASSEMBLY - RH, Complete BS-5047452
...
32
CLAMP, SCREW TYPE BS-47345MA
...
33
CLAMP, SCREW TYPE BS-47345MA
...
34
CAP, GAS BS-46704MA
...
35
OIL DRAIN ASSY BS-325547MA
...
36
CAP, OIL DRAIN BS-327422
...
37
THROTTLE, CONTROL BS-309092MA
...
38
SCREW BS-320553
...
39
NUT BS-308459MA
...
40
RETAINER BS-57569
...
41
KNOB, THROTTLE BS-300508MA
...
42
SCREW BS-159585
...
43
NUT BS-120622
...
44
CHOKE, CONTROL BS-327986MA
...
45
CLIP BS-314522
...
46
TIE, CABLE BS-57444
...
47
NUT BS-124918
