G4318030 Murray - Lawn Tractor (1997)

Model: G4318030

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

Frame Assembly

...
...
1
GUIDE, BELT BS-327376
...
2
NUT BS-124824
...
3
NUT BS-271190
...
4
BRKT, FRONT AXLE BS-313541
...
5
SCREW BS-56030
...
6
NUT BS-55273MA
...
7
GUIDE, BELT BS-300440MA
...
8
NUT BS-1498
...
9
FRAME, MAIN BS-335697-884
...
10
BRKT, LEVER BS-320075
...
11
SCREW BS-180079
...
12
WASHER BS-120393
...
13
NUT BS-1498
...
14
ASSY, CLUTCH LEVER BS-338048
...
17
NUT, 1/4-20, JAM BS-50148GS
...
18
PIN, HAIR BS-8260
...
19
BRACKET, SWITCH BS-9400
...
20
SCREW BS-35498
...
21
BRKT, CABLE BS-300698
...
22
SCREW BS-180020
...
23
NUT BS-1502
...
24
LIFT ASSY, LH BS-300158
...
25
LIFT ASSY, RH BS-300169MA
...
26
SCREW BS-180079
...
27
NUT BS-58247MA
...
28
NUT BS-1498
...
29
WHEEL & TIRE ASSY BS-1734013SM
...
30
BOLT BS-57072
...
31
NUT BS-1498
...
32
BRKT, STABILIZER BS-323739
...
33
SCREW BS-50947
...
34
SCREW BS-180079
...
35
WASHER BS-120393
...
36
NUT BS-1498
...
37
LEVER, SHIFT BS-319111
...
38
CLIP, SHIFT LEVER BS-310347
...
39
BOLT, 5/16-18 X 3/4" BS-5025011X6SM
...
40
WASHER BS-996416
...
41
NUT BS-1498
...
42
CLIP- SHIFT LEVER BS-310347
...
43
GUIDE, BELT BS-57259MA
...
44
WASHER BS-996416
...
45
NUT BS-1498
...
46
BRKT, SHIFT LEVER BS-310356
...
47
SCREW BS-180020
...
48
NUT BS-1502
...
49
GUIDE, BELT, RH BS-304016
...
50
NUT BS-1498

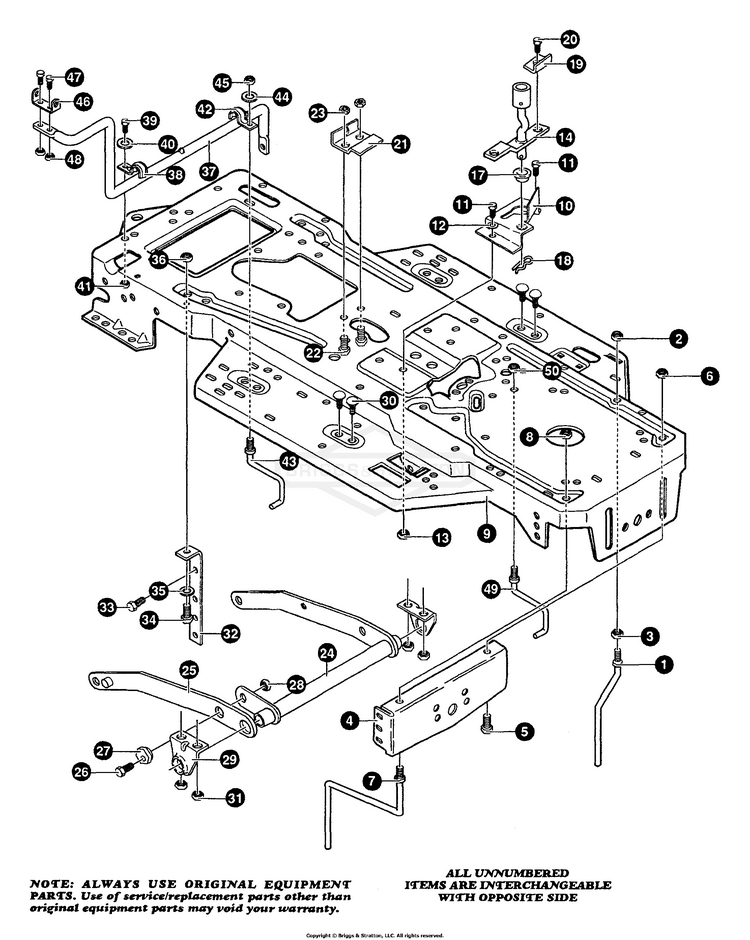

Schematic Image Zoomed
