G4318030 Murray - Lawn Tractor (1997)

Model: G4318030

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

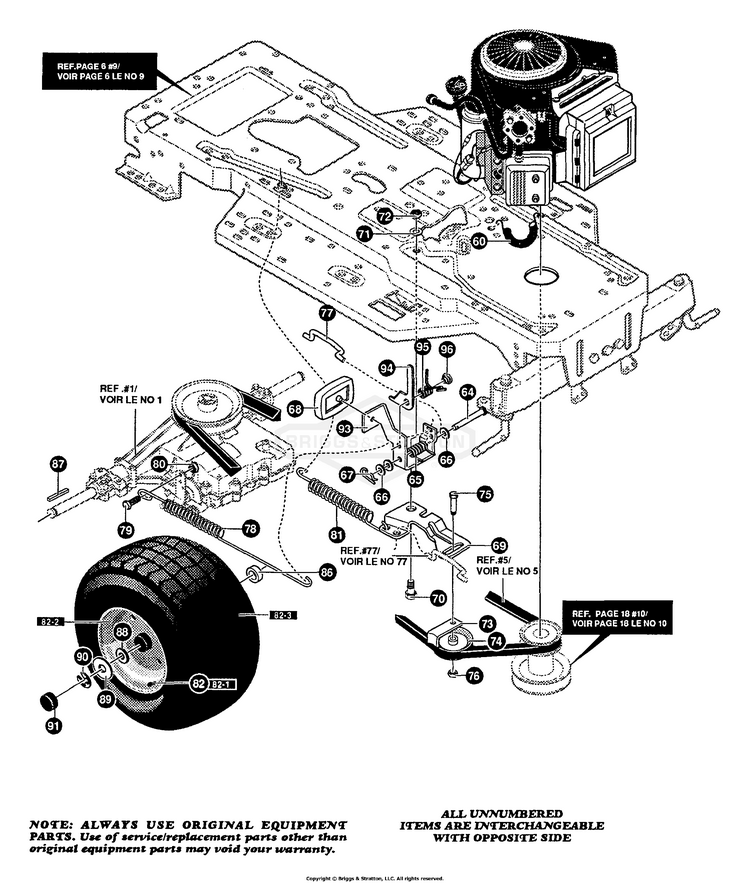

Motion Drive Assembly (part 2)

...
...
60
SPRING BS-321514
...
64
PIN, CLEVIS BS-319675
...
65
DRIVEN DISC ASSY BS-7057847YP
...
66
WASHER BS-2968
...
67
PIN, HAIR BS-56180MA
...
68
PAD, CLUTCH BRAKE BS-48160MA
...
69
ARM, IDLER TRAC BS-320381
...
70
BOLT BS-329989MA
...
71
WASHER BS-45602MA
...
72
NUT BS-1498
...
73
RETAINER, BELT BS-39659MA
...
74
PULLEY, IDLER BS-35374
...
75
BOLT BS-45892MA
...
76
NUT, 3/8-16 BS-703333
...
77
ROD, CLUTCH BS-57204MA
...
78
SPRING, BRAKE BS-325937
...
79
BOLT BS-326131
...
80
NUT BS-1498
...
81
SPRING, CLUTCH BS-330505MA
...
82
TIRE & RIM 20" BS-692291
...
82-1
VALVE STEM BS-338512
...
82-2
RIM, WHEEL BS-338524
...
82-3
TIRE, 20" BS-338528
...
86
SPACER BS-338184
...
87
KEY, SQUARE BS-52928MA
...
88
WASHER BS-642
...
89
WASHER BS-42815MA
...
90
RING, RETEX BS-36625
...
91
HUB CAP BS-40394MA
...
93
PEDAL CLUTCH/BRAKE BS-325941-853
...
94
LEVER, PARK BRAKE BS-9016
...
95
SPRING, BRAKE BS-57828MA
...
96
RIVET BS-57829
