G4318030 Murray - Lawn Tractor (1997)

Model: G4318030

Back To Assemblies

Save Part Not Listed?
product name

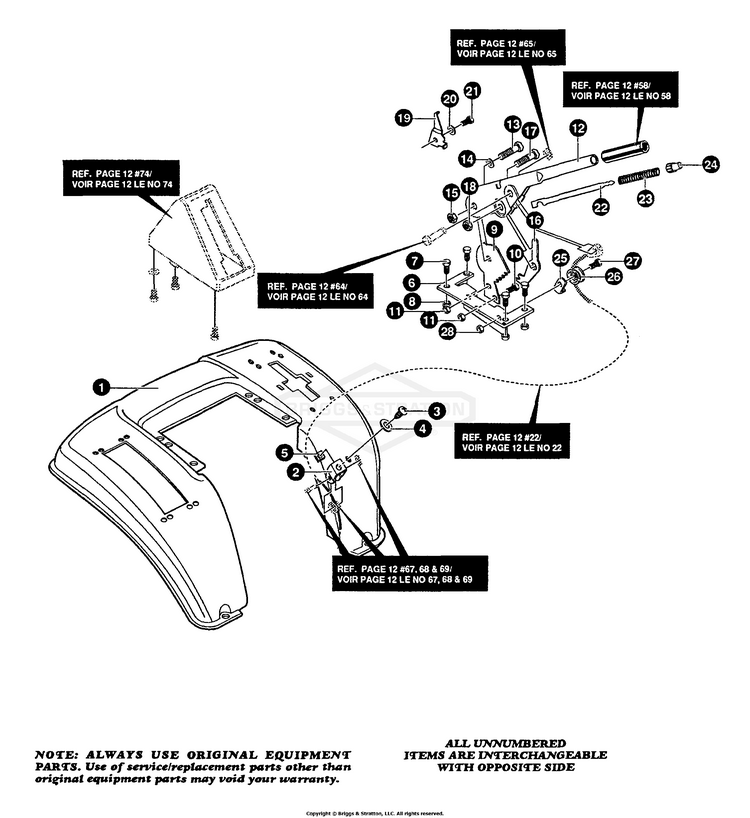

Fender Assembly

...
...
1
FENDER BS-308653-884
...
2
CLEVIS BS-9239
...
3
SCREW BS-439455
...
4
WASHER BS-301551
...
5
NUT BS-120373
...
6
BRKT, HEIGHT ADJUST BS-313926
...
7
BOLT, 5/16-18 X 3/4" BS-5025011X6SM
...
8
NUT BS-1498
...
9
QUADRANT BS-301238
...
10
BOLT, 5/16-18 X 3/4" BS-5025011X6SM
...
11
NUT BS-1498
...
12
HANDLE, LIFT BS-322292
...
13
BOLT BS-300171MA
...
14
WASHER BS-996418
...
15
NUT BS-336171
...
16
PAWL, SQUARE BS-301239MA
...
17
BOLT BS-300171MA
...
18
NUT BS-336171
...
19
POINTER BS-9435MA
...
20
WASHER BS-138479
...
21
SCREW BS-35287
...
22
ROD, ACTUATOR BS-303027MA
...
23
SPRING, HEIGHT ADJUST BS-58326MA
...
24
KNOB BS-58325MA
...
25
CABLE BRACKET BS-9149
...
26
PULLEY BS-48306MA
...
27
BOLT BS-58336
...
28
NUT BS-1502
