G4318030 Murray - Lawn Tractor (1997)

Model: G4318030

Back To Assemblies

Save Part Not Listed?
product name

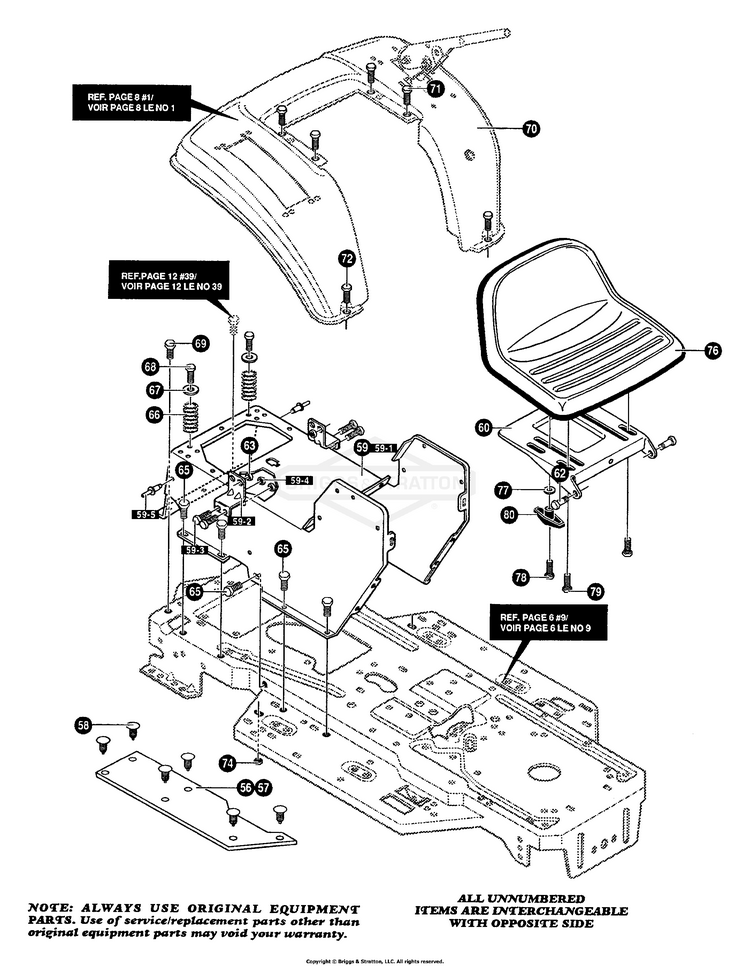

Rear Chassis & Hood Assembly

...
...
56
FOOT PAD, LH BS-310005
...
57
FOOT PAD, RH BS-310006
...
58
FASTENER BS-309235MA
...
58
FASTENER BS-309235MA
...
59-1
CONSOLE BS-308665-884
...
59-2
BRKT, SEAT SUPPORT BS-310660-853
...
59-3
SCREW 5/16-18 X 0.63 WAHHC BS-48901MA
...
59-4
NUT BS-1498
...
59-5
SPINDLE PULLEY, 52" BS-5046763
...
60
PLATE, SEAT BS-331535-853
...
62
BOLT BS-20507
...
63
NUT BS-1498
...
65
SCREW BS-995346
...
66
SPRING, SEAT BS-337427
...
67
WASHER BS-120392
...
68
SCREW BS-995346
...
69
SCREW BS-35497
...
71
SCREW BS-995346
...
72
BOLT BS-126358
...
74
NUT BS-55273MA
...
76
SEAT BS-331527
...
77
WASHER BS-120393
...
78
SCREW BS-180079
...
79
BOLT BS-331637
...
80
HANDLE BS-643958
