G4315140 Murray - Lawn Tractor (1997)

Model: G4315140

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

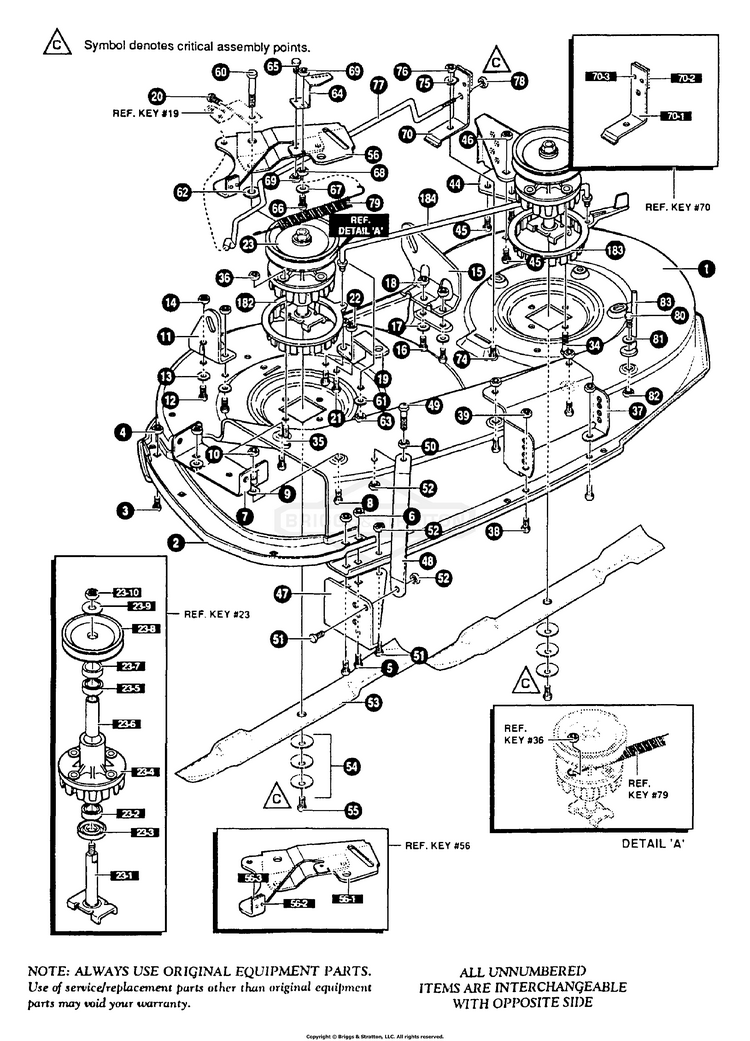

Pre-painted Deck Assembly

...
...
1
43" DECK KIT BS-325116
...
2
TOE GUARD BS-326480
...
3
BOLT, 5/16-18 X 3/4" BS-5025011X6SM
...
4
NUT, 5/16-18 BS-1498
...
5
BOLT, 5/16-18 X 3/4" BS-5025011X6SM
...
6
NUT, 5/16-18 BS-1498
...
7
BRACKET, CHUTE MOUNT BS-317017MA
...
8
BOLT, 5/16-18 X 3/4" BS-5025011X6SM
...
9
WASHER, FLAT .344 X .69 X .065 BS-120393
...
10
NUT, 5/16-18 BS-1498
...
11
BRACKET, RH LIFT REAR BS-313929MA
...
12
BOLT, 5/16-18 X 3/4" BS-5025011X6SM
...
13
WASHER, FLAT .344 X .69 X .065 BS-120393
...
14
NUT, 5/16-18 BS-1498
...
15
BRACKET, LH LIFT REAR BS-310667MA
...
16
BOLT, 5/16-18 X 3/4" BS-5025011X6SM
...
17
WASHER, FLAT .344 X .69 X .065 BS-120393
...
18
NUT, 5/16-18 BS-1498
...
19
BRACE, IDLER SUPPORT BS-326893
...
20
SCREW, 1/4-20 X 1.25 BS-308231
...
21
BOLT, 5/16-18 X 3/4" BS-5025011X6SM
...
22
SPRING RETURN ## BS-7044108YP
...
23
QUILL ASSEMBLY BS-337735
...
23-1
SHAFT/SADDLE BS-56425MA
...
23-2
BEARING, BALL 11/16X1 BS-1705897SM
...
23-3
DUST SHIELD BS-50616MA
...
23-4
QUILL BS-330335MA
...
23-5
BEARING, BALL 11/16X1 BS-1705897SM
...
23-6
SPACER, SLEEVE BS-50818MA
...
23-7
SPACER, QUILL BS-331067MA
...
23-8
PULLEY BS-333132
...
23-9
WASHER, SPECIAL QUILL BS-56365MA
...
23-10
NUT, 7/16-20 BS-1282MA
...
34
SCREW, 5/16-18 x 2.00 BS-333474MA
...
35
SCREW, 5/16-18 x 2.25 BS-333473
...
36
NUT, 5/16-18 BS-1498
...
37
BRACKET FRONT BS-317040MA
...
38
BOLT, 5/16-18 X 3/4" BS-5025011X6SM
...
39
NUT, 5/16-18 BS-1498
...
44
BRACKET, GAGE WHEEL, LH BS-317041MA
...
45
BOLT, 5/16-18 X 3/4" BS-5025011X6SM
...
46
NUT, 5/16-18 BS-1498
...
47
BRACKET, GAGE WHEEL, RH FRONT BS-322464
...
48
BRACKET, STABILIZER BS-314282
...
49
SCREW, 5/16-18 X 5.00 BS-311104
...
50
NUT, 5/16-18 BS-271184
...
51
BOLT, 5/16-18 X 3/4" BS-5025011X6SM
...
52
NUT, 5/16-18 BS-1498
...
53
BLADE, 21.70 BS-330278MA
...
54
WASHER, .39ID X 1.25D X .07 BS-2483
...
55
SCREW, 3/8-24 X 1.25 BS-47665MA
...
56
IDLER ARM ASSEMBLY BS-320576
...
56-1
ARM IDLER BS-322116
...
56-2
RIVET, OVSET BS-41601
...
56-3
BRAKE PAD - HARD BS-306973MA
...
60
BOLT, .500 X 2.15 BS-304420MA
...
61
WASHER, FLAT .391 X 1.00 X .125 BS-996416
...
62
WASHER, FLAT .391 X 1.00 X .209 BS-996307MA
...
63
NUT, 3/8-16 BS-45171MA
...
64
BRACKET, EXTENSION IDLER BS-326249
...
65
BOLT, 5/16-18 X 3/4" BS-5025011X6SM
...
66
SCREW, 5/16-18 x 1.50 BS-180083
...
67
WASHER, FLAT .375 X .88 X .082 BS-446363MA
...
68
NUT, 5/16-18 BS-271184
...
69
NUT, 5/16-18 BS-1498
...
70
BLADE BRAKE ASSEMBLY BS-321828
...
70-1
RIVET, TRSET BS-135624
...
70-2
BRAKE ARM BS-304119
...
70-3
BRAKE PAD - HARD BS-306973MA
...
74
BOLT, 5/16-18 X 3/4" BS-5025011X6SM
...
75
WASHER, FLAT .344 X .69 X .065 BS-120393
...
76
NUT, 5/16-18 BS-1498
...
77
ROD, BRAKE BS-314079
...
78
NUT, 1/4-20 BS-1502
...
79
SPRING BS-35410
...
80
SCREW 5/16-18 X 1.00 BS-180079
...
81
WASHER, FLAT .344 X .69 X .065 BS-120393
...
82
NUT, 5/16-18 BS-1498
...
83
BELT GUIDE, UPSTOP BS-325965MA
...
182
COVER-TURBO VENT BS-330406
...
183
COVER-TURBO VENT W/HANDLE BS-330329
...
184
LINK, TURBO VENT BS-330412
