G4315140 Murray - Lawn Tractor (1997)

Model: G4315140

Back To Assemblies

Save Part Not Listed?
product name

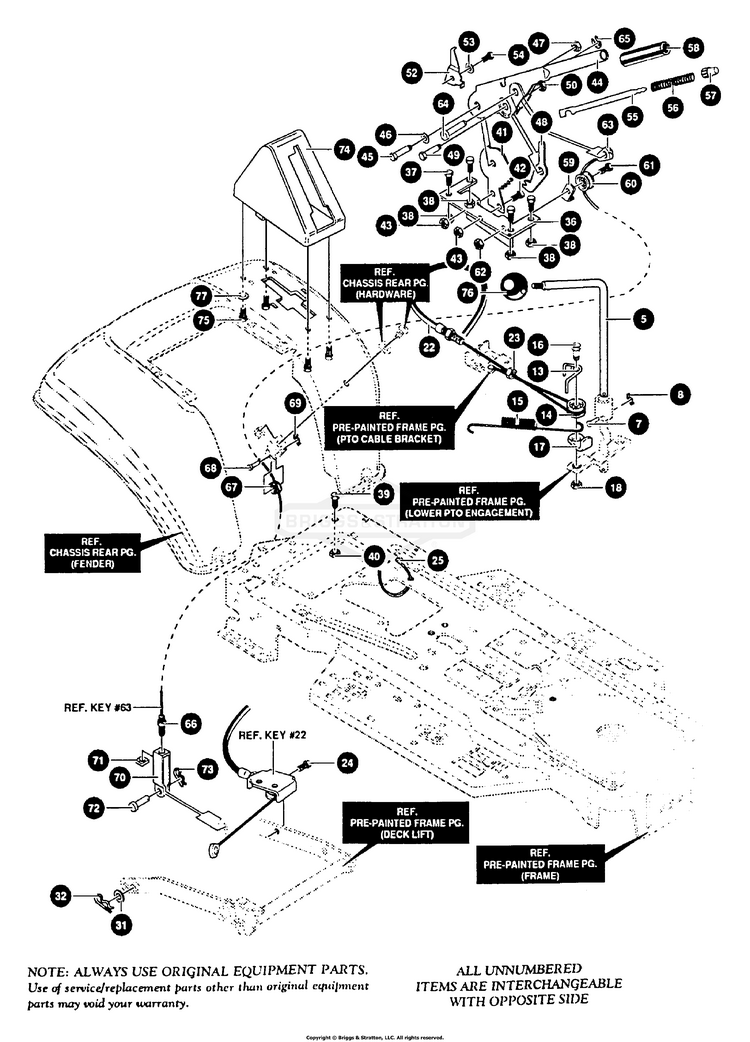

Mower Suspension Assembly

...
...
5
LEVER, PTO UPPER BS-338049
...
7
PIN, CLEVIS .25D X 1.094 BS-304877
...
8
PIN, HAIR BS-36368MA
...
13
SPRING, CABLE KEEPER BS-324032MA
...
14
PULLEY, METAL BS-48306MA
...
15
SPRING BS-316648MA
...
16
BOLT, .375 X .565 BS-324045
...
17
BRACKET, CABLE RETAINER BS-1288MA
...
18
NUT, 1/4-20 BS-1502
...
12
ASSEMBLY, CABLE PTO ENGAGE BS-324055MA
...
23
NUT, 1/4-28 BS-120613
...
24
SCREW, 5/16-18 x 0.62 BS-335639
...
25
TIE, CABLE BS-57444
...
31
WASHER, FLAT .531 X 1.06 X .063 BS-417098MA
...
32
PIN, HAIR BS-8260
...
36
BRACKET, HEIGHT ADJUST BS-313926
...
37
BOLT, 5/16-18 X 3/4" BS-5025011X6SM
...
38
NUT, 5/16-18 BS-1498
...
39
BOLT, 5/16-18 X 3/4" BS-5025011X6SM
...
40
NET, 5/16-18 BS-1498
...
41
QUADRANT, HEIGHT ADJUST BS-301238
...
42
BOLT, 5/16-18 X 3/4" BS-5025011X6SM
...
43
NUT, 5/16-18 BS-1498
...
44
HANDLE, LIFT SHORT BS-322292-853
...
45
BOLT, .500 X .170 BS-300171MA
...
46
WASHER, FLAT .506 X .75 X .024 BS-996418
...
47
SPRING RETURN ## BS-7044108YP
...
48
PAWL, SQUARE BS-301239MA
...
49
BOLT, .500 X .270 BS-300171MA
...
50
SPRING RETURN ## BS-7044108YP
...
52
POINTER, HEIGHT ADJUST BS-9435MA
...
53
WASHER, .195 X .41 X .03 BS-138479
...
54
SCREW, #8-32 X .38 BS-35287
...
55
ROD, ACTUATOR-SHORT BS-303027MA
...
56
SPRING, HEIGHT ADJUST BS-58326MA
...
57
KNOB, HEIGHT ADJUST BS-58325MA
...
58
GRIP, W/ HOLE BLACK BS-58329MA
...
59
BRACKET, CABLE RETAINER BS-9149
...
60
PULLEY, METAL BS-48306MA
...
61
BOLT, .375 X .375 BS-58336
...
62
NUT, 1/4-20 BS-1502
...
63
ASSEMBLY, CABLE LIFT BS-314177MA
...
64
PIN, CLEVIS BS-300310MA
...
65
RING, RET E BS-300311MA
...
66
NUT, 1/4-20 BS-120375
...
67
PULLEY, METAL BS-48306MA
...
68
PIN, CLEVIS BS-300317
...
69
PIN, HAIR BS-8260
...
70
CLEVIS, LIFT CABLE BS-9405
...
71
NUT, 1/4-20 BS-120372
...
72
PIN, CLEVIS BS-39522MA
...
73
PIN, COTTER BS-121222
...
74
LIFT COVER BS-333903MA
...
75
SCREW, #10 X .75 BS-300340
...
76
KNOB BS-321837MA
...
77
WASHER, FLAT .281 X .63 X .065 BS-120392
