G4315140 Murray - Lawn Tractor (1997)

Model: G4315140

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

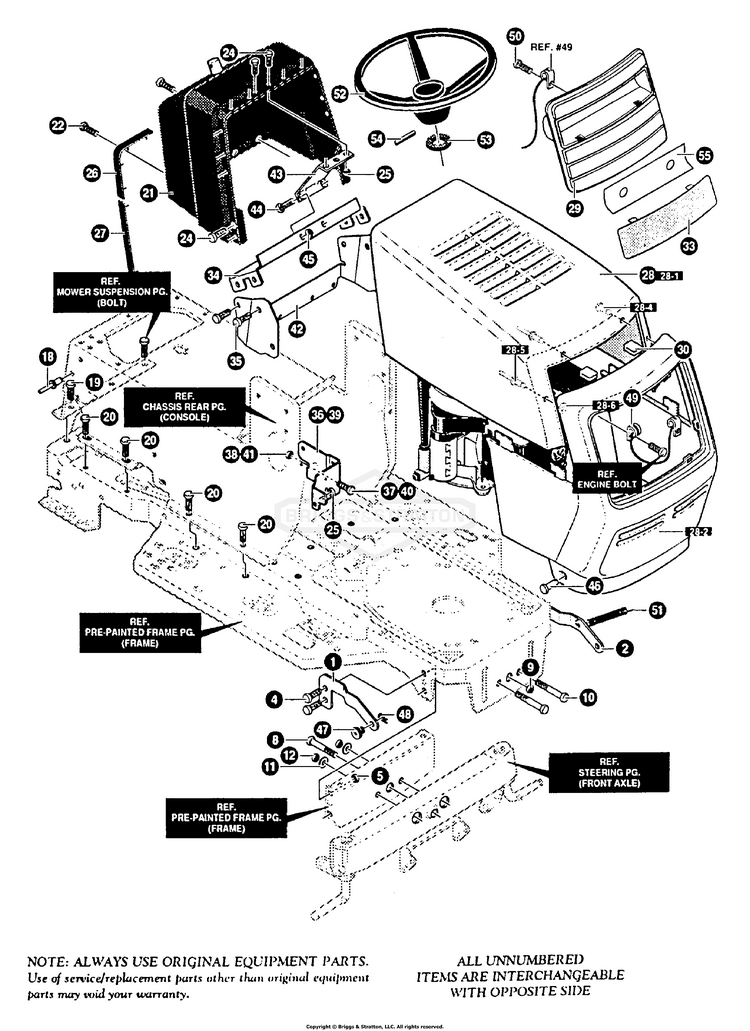

Front Chassis & Hood Assembly

...
...
1
BRACKET, HOOD BS-326203-853
...
2
BRACKET, HOOD BS-326204-853
...
4
SCREW, 5/16-18 x 0.75 BS-56030
...
5
NUT, 5/16-18 BS-55273MA
...
8
BOLT, .625 X 2.18 BS-308207
...
9
NUT, 1/2-13 BS-309008
...
10
SCREW, 3/8-16 x 3.00 BS-180138MA
...
11
WASHER, .39ID X 1.25D X .07 BS-2483
...
12
NUT, 3/8-16 BS-703333
...
18
SPINDLE PULLEY, 52" BS-5046763
...
19
SCREW BS-35497
...
20
SCREW, 1/4-20 X .50 BS-995346
...
21
DASH BS-334797
...
22
SCREW, 1/4-14 X .75 BS-318304
...
24
SCREW, 10-24 X .63 BS-155941
...
25
NUT, #10-24 BS-308459MA
...
26
BUMPER, HOOD/DASH BS-328141
...
27
BUMPER, HOOD/DASH BS-328142
...
28
HOOD ASSEMBLY BS-336508
...
28-1
KIT, HOOD BS-337110
...
28-2
HOOD KIT FOR K-MART BS-334109
...
28-4
RIVET, POP BS-329238
...
28-5
RIVET, POP BS-333225
...
28-6
WASHER, FLAT .203 X .56 X .040 BS-1501
...
29
INSERT, GRILLE BS-332616
...
30
CLIP, TINNERMAN BS-306857MA
...
33
LENS BS-325194
...
34
SUPPORT, STEERING PTO BS-324909-853
...
35
SCREW, 1/4-20X.38 BS-40886MA
...
36
BRACKET, DASH/TANK, RH BS-326320-853
...
37
SCREW, 1/4-20 X .75 BS-180020
...
38
NUT, 1/4-20 BS-1502
...
39
BRACKET, DASH/TANK, LH BS-326321-853
...
40
SCREW, 1/4-20 X .75 BS-180020
...
41
NUT, 1/4-20 BS-1502
...
42
SUPPORT, LOWER DASH BS-326640-853
...
43
DASH, SUPPORT BRACKET BS-327039-853
...
44
SCREW, 1/4-20 X .75 BS-180020
...
45
NUT, 1/4-20 BS-1502
...
46
PIN, CLEVIS BS-323044
...
47
BEARING HOOD BS-326522MA
...
48
PIN, HAIR BS-8260
...
49
LANYARD, HOOD 11.75 BS-311094
...
50
SCREW, 1/4-10 X .75 BS-49050
...
51
SPRING, HOOD LATCH BS-304784
...
52
STEERING WHEEL BS-330848MA
...
53
SPACER, SLEEVE BS-317509
...
54
PIN, SPRING BS-456378MA
...
55
FOIL, LENS REFLECTOR BS-333275
...
--
OWNER'S MANUAL BS-339629
