product name

G4315110 Murray - Lawn Tractor (1997)

Model: G4315110

Back To Assemblies

Save Part Not Listed?
product name

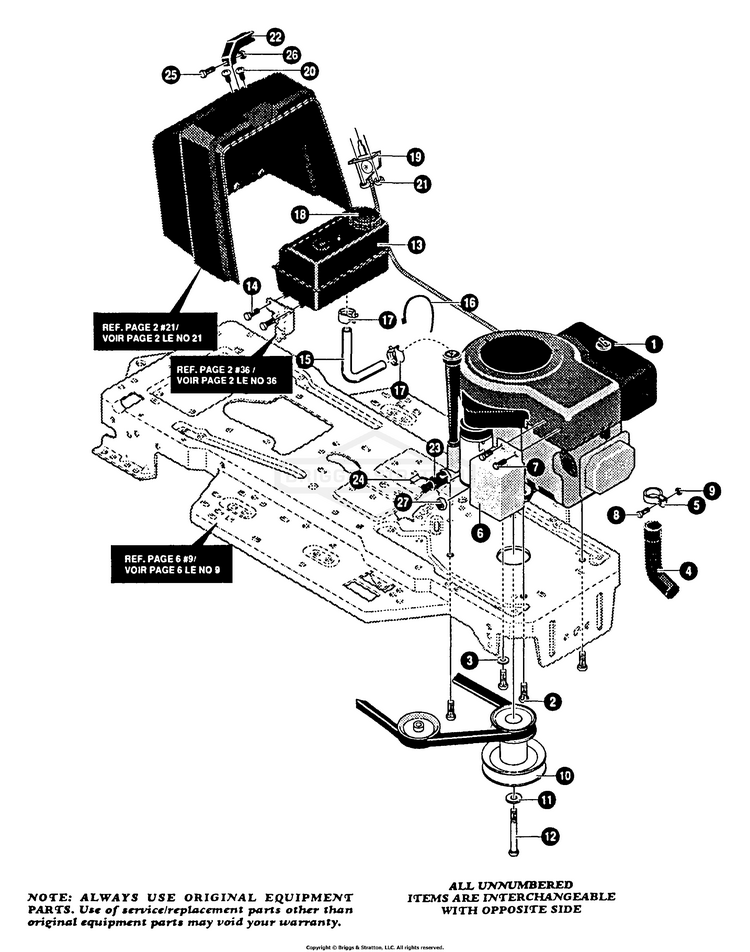

Engine & Control Assembly

...
...
2
SCREW BS-50947
...
3
WASHER BS-138489MA
...
4
EXHAUST TUBE BS-327868
...
5
CLAMP EXHAUST BS-328024
...
6
HEAT SHIELD BS-327785-853
...
7
SCREW BS-995346
...
8
SCREW BS-180083
...
9
NUT BS-120376
...
10
PULLEY, ENGINE BS-328029
...
11
WASHER BS-120383
...
12
SCREW BS-428644MA
...
13
TANK, FUEL BS-309853MA
...
14
SCREW BS-300303MA
...
15
TUBING, GAS LINE BS-42258
...
16
TIE, CABLE BS-57444
...
17
CLAMP, SCREW TYPE BS-47345MA
...
18
CAP, FUEL BS-12501MA
...
19
THROTTLE BS-329148MA
...
20
SCREW BS-155941
...
21
NUT BS-308459MA
...
22
KNOB, THROTTLE BS-300508MA
...
23
OIL DRAIN ASSY BS-325547MA
...
24
CAP, OIL DRAIN BS-327422
...
25
SCREW BS-159585
...
26
NUT BS-120622
...
27
NUT BS-124818
