G4315110 Murray - Lawn Tractor (1997)

Model: G4315110

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

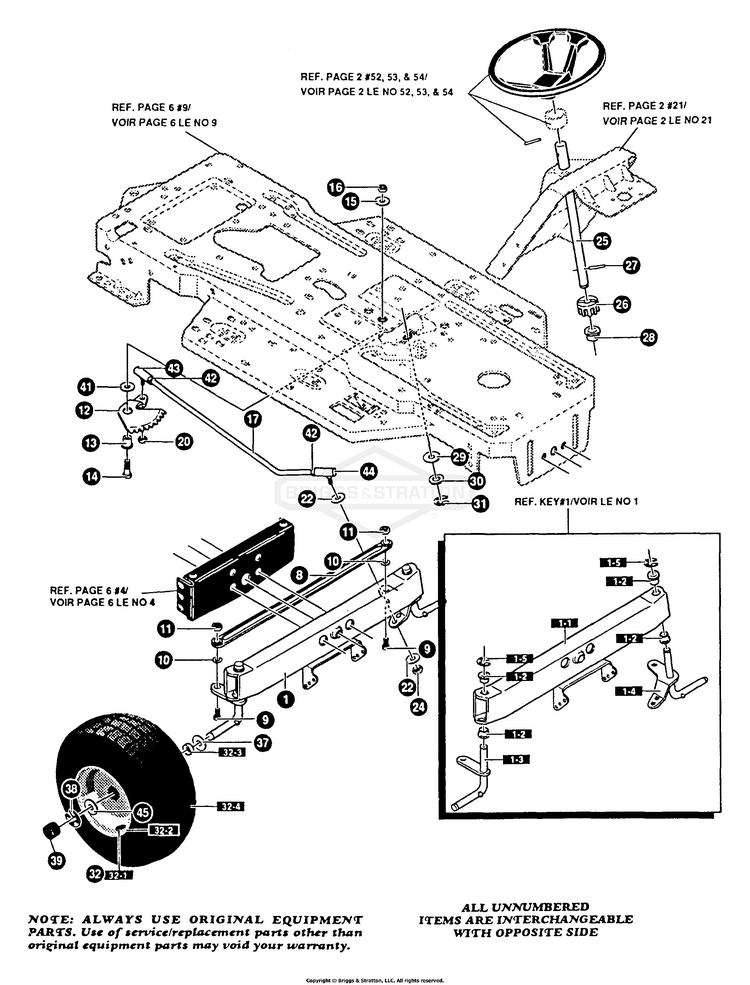

Steering Assembly

...
...
1-1
FRONT AXLE BS-300272
...
1-2
SPINDLE BEARING BS-52407MA
...
1-3
ASSY, SPINDLE, RH BS-9180
...
1-4
ASSY, SPINDLE, LH BS-314088
...
1-5
RING, RETEX BS-36625
...
8
TIE ROD ASSY BS-304590MA
...
9
SCREW BS-180128MA
...
10
WASHER BS-120382
...
11
NUT, 3/8-16 BS-703333
...
12
SECTOR, STEER BS-58289MA
...
13
BEARING BS-52406MA
...
14
SCREW BS-180177
...
15
WASHER BS-22265MA
...
16
NUT BS-1500
...
17
STEERING LINK BS-58291MA
...
20
NUT BS-412349MA
...
22
WASHER BS-996416
...
24
NUT BS-412349MA
...
25
SHAFT, STEERING BS-332528
...
26
PINION, STEER BS-58244MA
...
27
PIN,DOWEL BS-58274MA
...
28
BEARING BS-301410MA
...
29
WASHER BS-301398MA
...
30
WASHER BS-021682
...
31
RING, RETEX BS-36625
...
32
TIRE & RIM BS-692287
...
32-1
VALVE STEM BS-338512
...
32-2
RIM, WHEEL BS-338517MA
...
32-3
BEARING BS-338513
...
32-4
TIRE BS-338516
...
37
WASHER BS-642
...
38
RING, RETEX BS-36625
...
39
HUB CAP BS-40394MA
...
41
WASHER BS-49998
...
42
NUT BS-124925MA
...
43
BALL JOINT BS-57158
...
44
BALL JOINT BS-21275MA
...
45
WASHER BS-42815MA
