G4315010 Murray - Lawn Tractor (1997)

Model: G4315010

Save Part Not Listed?

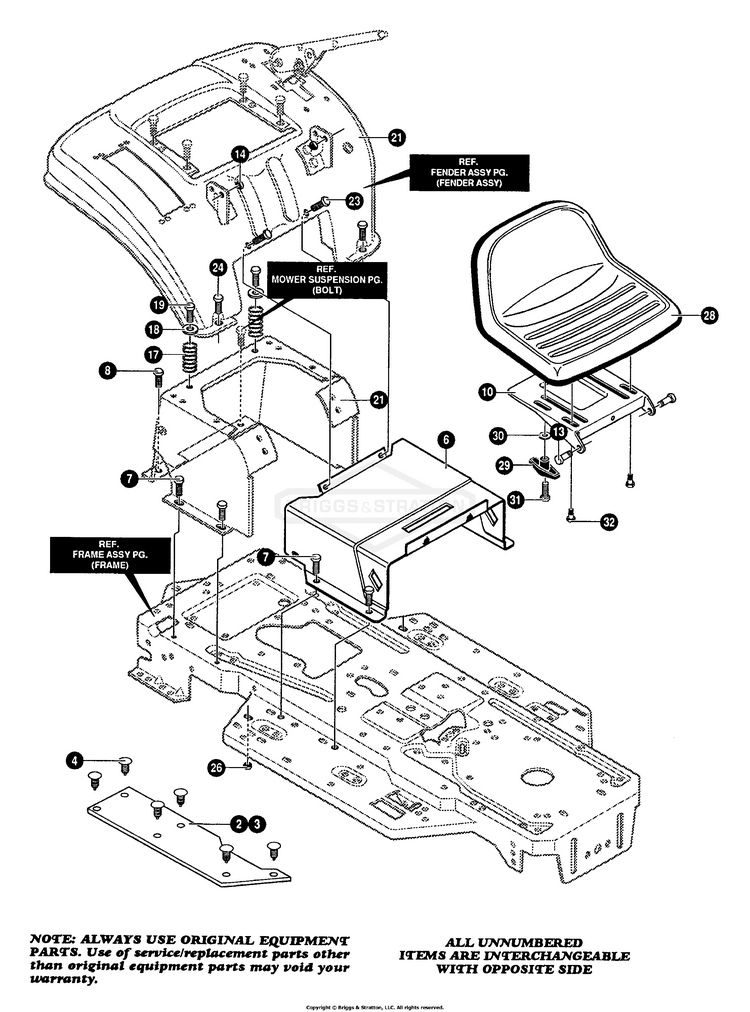

Rear Chassis Assembly

FOOT PAD, LH BS-310005

FOOT PAD, RH BS-310006

FASTENER, RATCHET BS-309235MA

CONSOLE, WALK-THRU BS-330865-830

SCREW, 1/4-20 x .50 BS-995346

SCREW, 5/16-18 x 0.50 BS-35497

PLATE, SEAT BS-331535-830

BOLT, .437 x .156 BS-20507

NUT, 5/16-18 BS-1498

SPRING, SEAT BS-337427

WASHER, FLAT .281 x .63 x .065 BS-120392

SCREW, 1/4-20 x .50 BS-995346

SCREW, 5/16-18 x 0.50 BS-35497

BOLT, 5/16-18 x 1.00 BS-126358

NUT, 5/16-18 BS-55273MA

SEAT BS-338622

HANDLE, WING NUT BS-643958

WASHER, FLAT .344 x .69 x .065 BS-120393

SCREW, 5/16-18 x 1.00 BS-180079

BOLT, .500 x .10 BS-331637
