G4315010 Murray - Lawn Tractor (1997)

Model: G4315010

Back To Assemblies

Save Part Not Listed?
product name

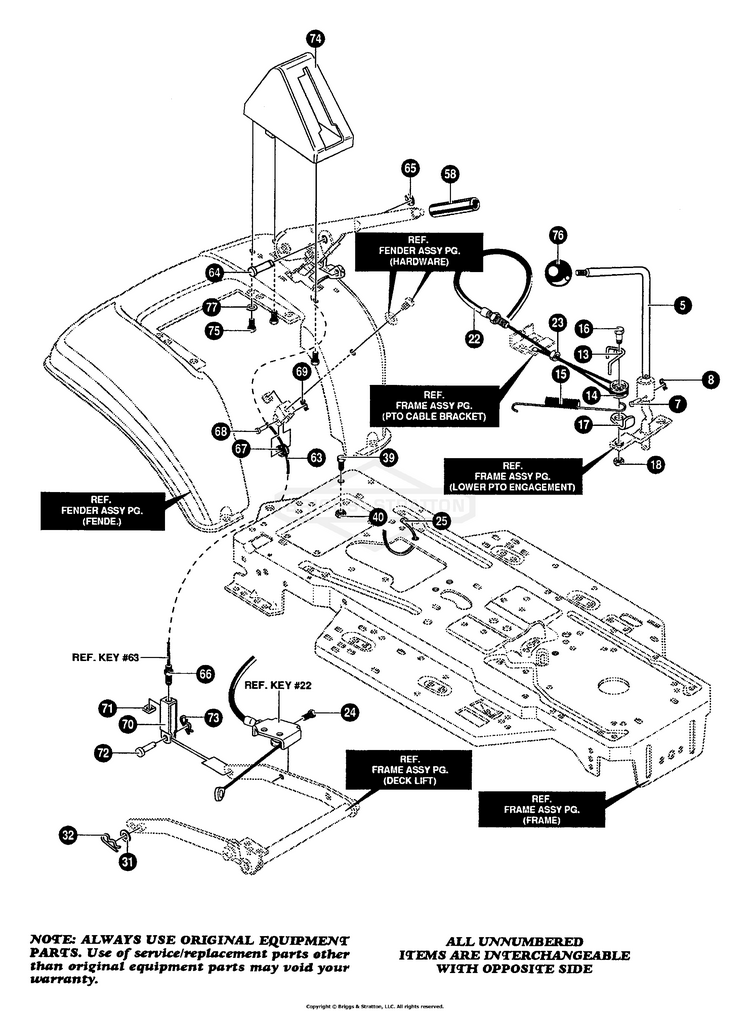

Mower Suspension Assembly

...
...
5
LEVER, PTO UPPER BS-338049
...
7
LF PIN, CLEVIS .25DX BS-578309MA
...
8
PIN, HAIR BS-36368MA
...
13
SPRING, CABLE KEEPER BS-324032MA
...
14
PULLEY, METAL BS-48306MA
...
15
SPRING BS-316648MA
...
16
BOLT, .375 x .565 BS-324045
...
17
BRACKET, CABLE RETAINER BS-1288MA
...
18
NUT, 1/4-20 BS-1502
...
22
ASSEMBLY, CABLE PTO ENGAGE BS-324055MA
...
23
NUT, 1/4-28 BS-120613
...
24
SCREW, 5/16-18 x 0.75 BS-35498
...
25
TIE, CABLE BS-57444
...
31
WASHER, FLAT .531 x 1.06 x .063 BS-417098MA
...
32
PIN, HAIR BS-8260
...
39
BOLT, 5/16-18 X 3/4" BS-5025011X6SM
...
40
NUT, 5/16-18 BS-55273MA
...
58
GRIP, W/HOLE BLACK BS-58329MA
...
63
ASSEMBLY, CABLE LIFT BS-314177MA
...
64
PIN, CLEVIS BS-300310MA
...
65
RING, RET E BS-300311MA
...
66
NUT, 1/4-20 BS-120375
...
67
PULLEY, METAL BS-48306MA
...
68
PIN, CLEVIS BS-300317
...
69
PIN, HAIR BS-8260
...
70
CLEVIS, LIFT CABLE BS-9405
...
71
NUT, 1/4-20 BS-120372
...
72
PIN, CLEVIS BS-39522MA
...
73
PIN, COTTER BS-121222
...
74
LIFT COVER BS-333903MA
...
75
SCREW, #10 x .75 BS-300340
...
76
KNOB, ROUND BS-321837MA
...
77
WASHER, FLAT .281 x .63 x .065 BS-120392
