01. Cap, Dome Complete, Black
FQ-4073000
02. Gasket, Cap Dome FQ-7610
03. Pad, Cap Felt FQ-1812
04. Motor Support, Upper FQ-3180
05. Connector, Plastic Dome Cap Black FQ-7510
06. Screw, 8 X 1/2" FQ-8888000900
07. Screen, Upper Plastic Black FQ-7505
08. Gasket, Top Motor FQ-350059
09. Holder, Attachment Black FQ-5702
10. Screw, Attachment Holder FQ-2888008100
11. Spring & Pin Complete FQ-7201
12. Motor Complete 2 Speed 1 Stage 3 Wire FQ-6036
12. Motor Complete, 2 Speed 2 Stage 3 Wire FQ-6010
13. Gasket, Bottom Motor FQ-350060
14. Gasket, Black Dome FQ-31775
15. Circuit Board, 112C, 75th FQ-3610
15. Circuit Board 2 Speed W/Relay M360SS FQ-3660
16. Screw, 4 X 1/2" FQ-8888003800
17. Screw,10-32 X 3/4" FQ-8888000700
18. Lower Motor Support Complete FQ-6201
19. Filter, Secondary Disc FQ-95450
20. Filter, Retainer Disc FQ-95798
21. Cone, Perforated Black FQ-31770
22. Screw, Thumb Cone Perforated FQ-350712
23. Dome Assy Complete FNLA
24. Handle, Complete Black FQ-9966
25. Screw, 8 X 3/4" FQ-31319P
26. Switch, 2 Speed 3 Terminal Red Rocker FQ-34007
26. Switch, 2 Speed 6 Terminal Rocker M360SS FQ-3460
27. Grille, Text W/Heat Trans Black FQ-7535
28. Dome FNLA
29. Outlet, Snap In Black FQ-33321M
30. Cord, 20 Ft 2 Wire Black FNLA
30. Cord 23', M360SS FQ-3060
31. Strain Relief FQ-3266
32. Filter Ring FQ-1800
32. Filter ring FQR-1815
33. Filter, Cardboard Support FQ-31791
34. Labels, Dome Filter FQ-2419500000
35. Label, Warning FQ-2419400000
36. Lead Wire, Black FQ-2029000201
37. Lead Wire, Red FQ-2029000203
38. Lead Wire, Blue FQ-2029000207
39. Lead, Terminated, 12", Yellow FQ-2029000105
40. Lead, Terminated, 12", Blue FQ-2029000107
41. Lead, Terminated, 12", White FQ-2029000110
42. Lamp, Dome FQ-95835
43. Dirt Container Complete FNLA
44. Clamp, Dirt Container, Silver FQ-7519
44. Clamp, Dirt Container, Chrome FQ-7520
45. Rivet, Clamp FQ-8888000300
46. Spring, Clamp FQ-2231000100
47. Bracket, Clamp Dirt Container FQ-500778
48. Gasket, Dirt Container Black FQ-200430
49. Deflector, Stainless FQ-200451
50. Washer FQ-11246
51. Inlet FQ-35043
52. Gasket, Inlet 1/16" FQ-2430000200
53. Dolly Complete, Silver FQ-4062000701
53. Dolly Complete, Chrome FQ-4062000101
54. Shield, Caster FQ-95905
55. Bumper, Black FQ-99783
56. Caster & Plate, Black Silver FQ-7112
56. Caster & Plate, Black Chrome FQ-7115
57. Filter Cone, 12 Pk FQR-1450
57. Filter cone, Paper Dvc 12 Pk FQR-1400
57. Filter cone, Paper env 12 Pk FQR-1450
58. Filter Cone Kit - 6 Pre Filters, 1 Medipure, 1 Flat Filter FQ-1827
01. Wand Complete Plastic, Black
FNLA
01. Wand Complete, Stainless
FQ-5001
02. Crevice Tool Complete
FQ-5412
03. Upholstery Tool Without Brush, W/Curved Neck
FQ-5205
04. Upholstery Brush Only, Black
FQ-5210
05. Bare Floor Brush Complete, W/Curved Neck
FQ-5510
06. Dusting Brush Complete
FQ-5300
07. Seal O Ring, Attachments
FQ-7605
08. Upholstery Tool With Brush With Curved Neck Complete
FQ-5200

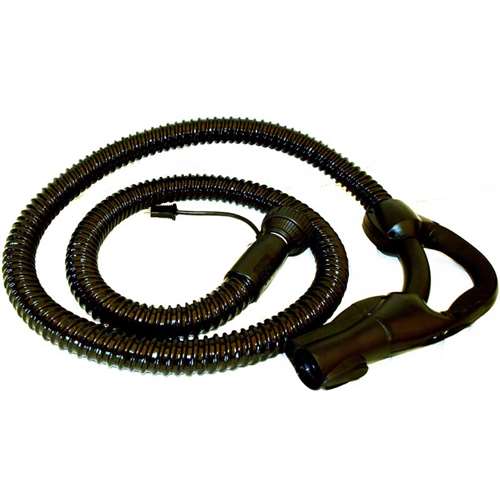

09. Hose With Gas Pump Handle, Complete
FQ-4005
10. Insert, Dusting Brush Only
FQ-33806
11. Cord Pigtail, Male/Female, 10.5" Black
FQ-96821
12. Swivel Connector, Machine End
FQ-96803
13. Gasket, Machine End
FQ-3407
14. Button & Spring, Wand End
FQ-4505
15. Insert, Bare Floor Brush Only
FQ-2200
16. Upper Housing Power Nozzle, Black
FQ-7212
17. Grille, Motor Filter, Nozzle
FQ-7220
18. Filter, Motor PN
FQ-1810
19. Screw, #6-19
FQ-7888008804
20. Bracket, Swivel Adapter, (2) Req.
FQ-7225
21. Seal, Felt, Upper Nozzle
FQ-1855
22. Swivel Adapter, Complete
FQ-7210
23. Crimp Connector
FQ-7240
24. Swivel Adapter, Lock
FQ-1210000600
25. Motor, PN, Geared Shaft
FQ-6060
26. Brushroll, Complete
FQ-2025
27. Bracket, Circuit Breaker
FQ-3450
28. Circuit Breaker
FQ-8831
29. Bumper, Power Nozzle
FQ-7410
30. Belt, Geared
FQ-1075
31. Bottom Wear Plate, Power Nozzle
FQ-7612
32. Screw, Flat #6-32
FQ-7888012400
33. Lower Housing, Black
FQ-7515
33. Lower Housing, Silver
FQ-7216
34. Wheel, Front
FQ-7110
35. Wheel, Rear
FQ-7100
-
xx. = Not shown on schematic.
