Ferris 5901391 - IS2100Z Series w/ 61" Mower Deck & ROPS (IS2100ZBV2661 CAL) Zero-Turn Riding Mower

Model: 5901391-IS2100ZSeriesw&ROPS(IS2100ZBV2661CAL)

Back To Assemblies

Save Part Not Listed?
product name

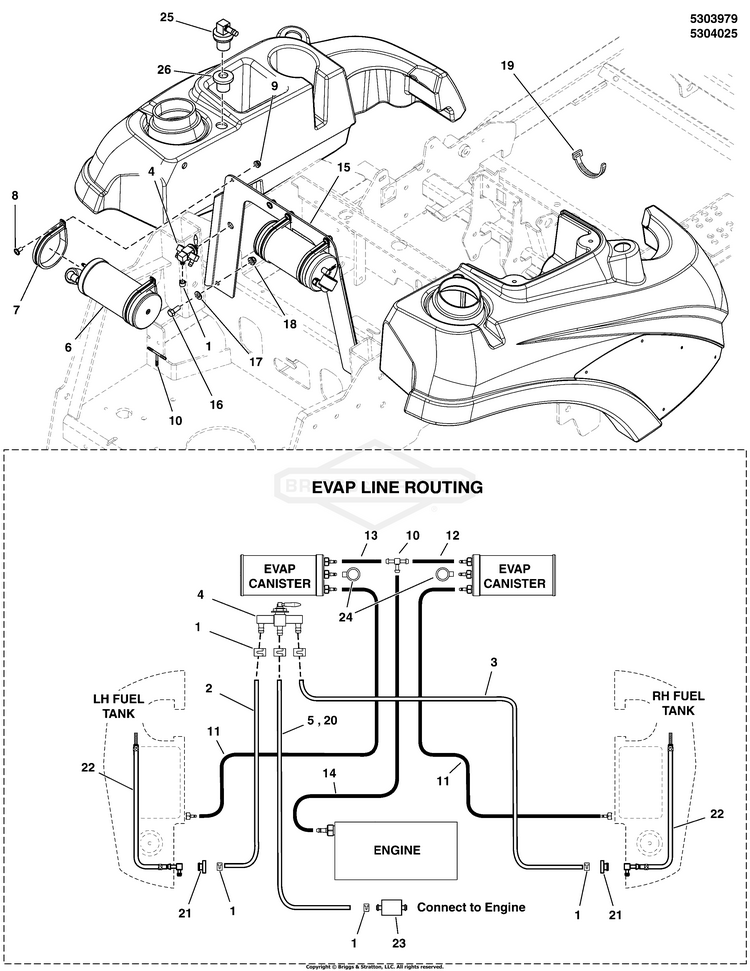

Fuel Supply Hose, Tank Replacement Parts, and EVAP Canister Group - CAL Models

...
...
1
CLAMP, Hose BS-691038
...
2
HOSE, 1/4" FUEL, 9.00 BS-5050831X9YP
...
3
HOSE, FUEL BS-84008223
...
4
VALVE, FUEL, 90 DEG. BS-5023359SM
...
5
HOSE, FUEL (Briggs & Stratton 49R977) BS-5050831X19P5FS
...
6
CANISTER-CARB0N BS-313036GS
...
7
CLAMP, 3" ID, CUSHION BS-5103055YP
...
8
SCREW BS-84003668
...
9
NUT BS-5025391FS
...
10
FITTING, 3/16" TEE, B BS-5103062YP
...
11
HOSE, VAPOR, 5MM ID, 10.50 LG BS-7700552X10P5
...
12
HOSE, VAPOR BS-7700552X18FS
...
13
HOSE, VAPOR,5MM ID,12 BS-7700552X12YP
...
14
HOSE BS-315826GS
...
15
PLATE, MOUNT, CANISTER, IS2100Z - BLK BS-5411958A
...
16
BOLT, 5/16-18 X 3/4" BS-5025011X6SM
...
17
WASHER BS-703350
...
18
NUT BS-703115
...
19
TIE, Cable 11" Long BS-5021029SM
...
20
HOSE, 1/4" FUEL, 12.0 (Kawasaki) BS-5050831X12SM
...
21
BUSHING BS-1726400FS
...
22
PICKUP TUBE ASM, FUEL TANK (SV) BS-5101144SM
...
23

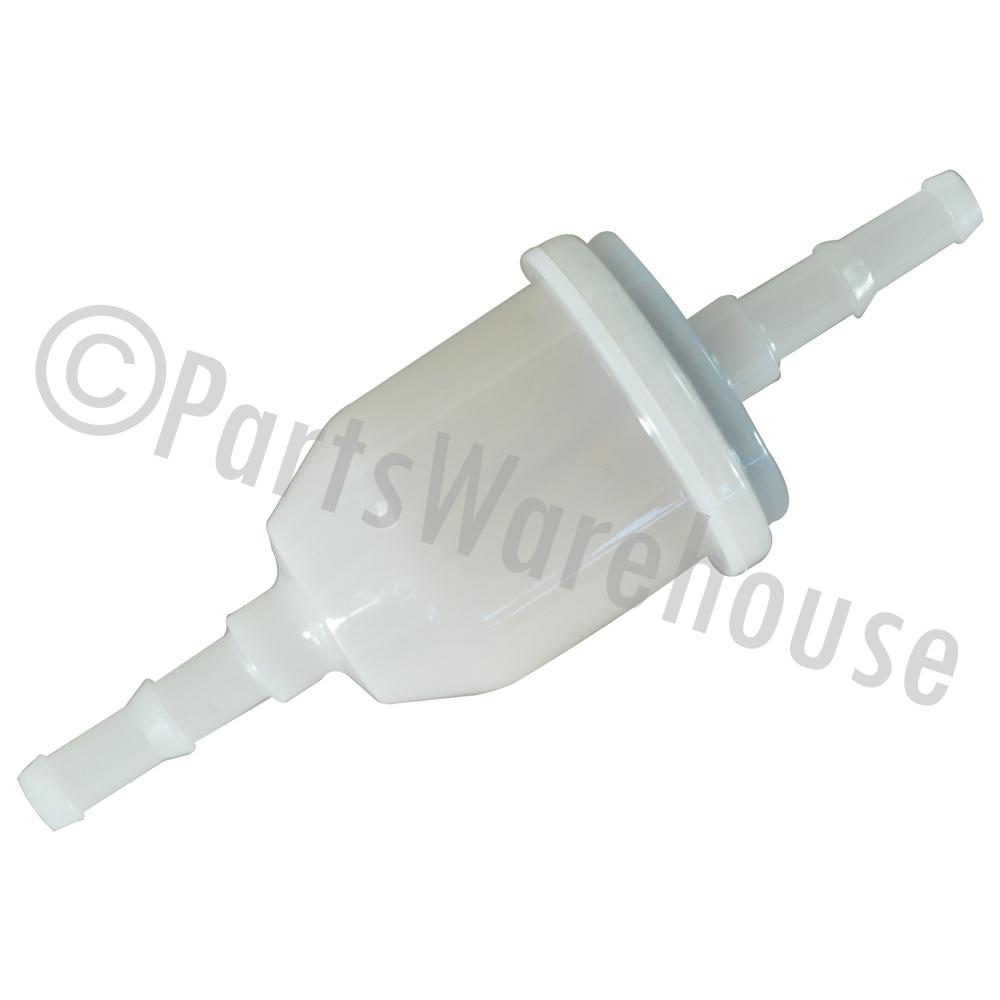

FILTER, FUEL BS-5021178X3FS
...
24
FILTER, Dust BS-1752800YP
...
25
REMOTE VENT ASSEMBLY BS-770046
...
26
GROMMET BS-799624
