Ferris 5901391 - IS2100Z Series w/ 61" Mower Deck & ROPS (IS2100ZBV2661 CAL) Zero-Turn Riding Mower

Model: 5901391-IS2100ZSeriesw&ROPS(IS2100ZBV2661CAL)

Back To Assemblies

Save Part Not Listed?
product name

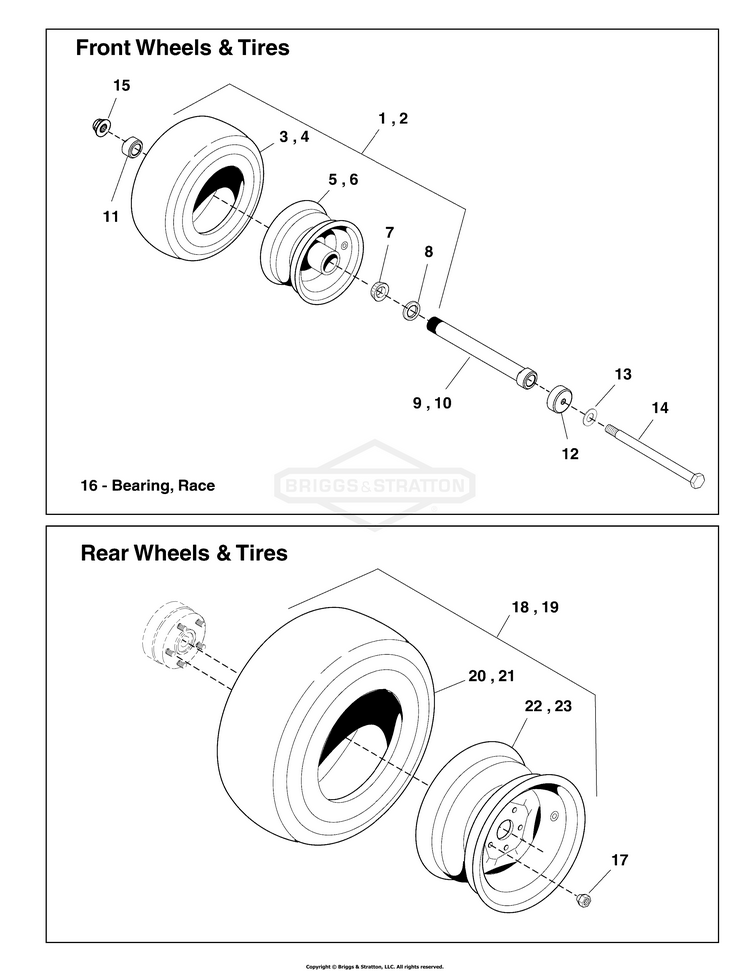

Wheel & Tire Group

...
...
1
TIRE ASSY, 13 X 6.5 S (61" Models Only) BS-5023136YP
...
2
WHEEL & TIRE ASSEMBLY, 13 x 5.0 - 6, Complete (52" Models Only) BS-5022631SSM
...
3
TIRE (61" Models Only) BS-84010374
...
4
WHEEL & TIRE ASSEMBLY, 13 x 5.0 - 6, Complete (52" Models Only) BS-5022631SSM
...
5
WHEEL ASSEMBLY (61" Models Only) BS-5023136X1YP
...
6
WHEEL ASSEMBLY, for 13 x 5.0 - 6 Tire, Complete (52" Models Only) BS-5022631SX1SM
...
7
BEARING, TAPERED CONE (2 per tire) BS-5022631SX2SM
...
8
SEAL, GREASE (2 per tire) BS-5022631SX3SM
...
9
BEARING ADJUSTER (61" Models Only) BS-5103649YP
...
10
SPACER (52" Models Only) BS-5103648FS
...
11
NUT, BEARING BS-5103650YP
...
12
DEBRIS, COVER, WHEEL BS-5103594YP
...
13
WASHER, 1/2" SAE BS-5025158SM
...
14
BOLT, 1/2-13 X 8" GD5 (52" Models Only) BS-5025017X64SM
...
14
BOLT, 1/2-13 X 9 GD5 (61" Models Only) BS-5025017X72YP
...
15
NUT BS-770225
...
16
BEARING, RACE (Not illustrated) BS-5022631SX4SM
...
17
NUT, 1/2-20, FOR WHEEL BOLT SILVER (Torque tire lug nuts to 90 ft-lbs (122 Nm) BS-5020601SM
...
18
TIRE/WHEEL ASM, 24X12.00-12, TURF SMART (61" Models Only) BS-5104029YP
...
19
TIRE ASSEMBLY (52" Models Only) BS-5108104FS
...
20
TIRE 24 X 12 X 12 (61" Models Only) BS-5023240X1YP
...
21
TIRE (52" Models Only) BS-84010357
...
22
WHEEL, 12 X 8.5 (61" Models Only) BS-5023364YP
...
23
WHEEL (52" Models Only) BS-84010746
