Ferris 5901391 - IS2100Z Series w/ 61" Mower Deck & ROPS (IS2100ZBV2661 CAL) Zero-Turn Riding Mower

Model: 5901391-IS2100ZSeriesw&ROPS(IS2100ZBV2661CAL)

Back To Assemblies

Save Part Not Listed?
product name

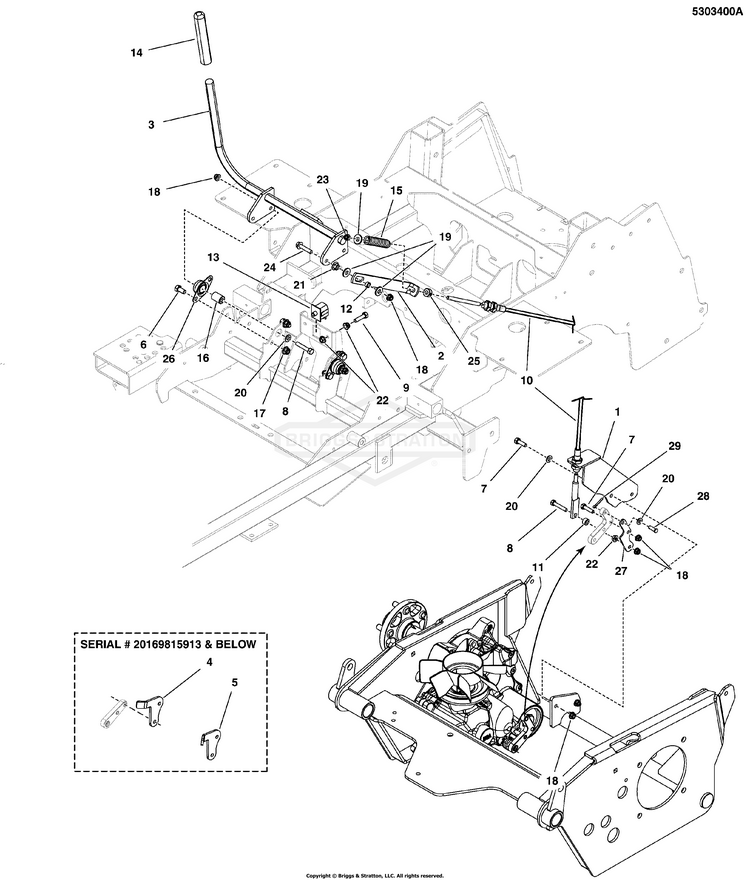

Parking Brake Group

...
...
1
BRACKET, Mounting BS-5413066AYP
...
2
ARM, Link BS-5413063AYP
...
3
WELD, BRAKE SHAFT, 2100 - BLK BS-5413061A
...
4
PLATE, RIGH BRAKE, 2100 - BLK (S/N: 2016981593 & BELOW) BS-5412848A
...
5
PLATE, LEFT BRAKE, 2100 - BLK (S/N: 2016981593 & BELOW) BS-5412847A
...
6
BOLT, 3/8-16 X 3/4" G BS-5025013X6SM
...
7
BOLT (QTY:6 S/N: 2016981593 & BELOW) BS-5025011X8FS
...
8
BOLT, 5/16-18 X 1-3/4 BS-5025011X14SM
...
9
BOLT, 5/16-18 X 1-1/4 BS-5025055X10YP
...
10
CABLE, PARKING BRAKE BS-5104235YP
...
11
SPACER, .33X.625X.360 BS-5103767YP
...
12
SPACER, .33 X .50X.25 BS-5102463YP
...
13
SWITCH, LOW PROF, NC/ BS-5101280YP
...
14
GRIP, FOAM BS-5101038SM
...
15
SPRING, COMP. 1/2 ID BS-5100385YP
...
16
SPACER, .32 X .75 X 1 BS-5042134SM
...
17
NUT, 3/8-16 HEX NYLOCK BS-5025394SM
...
18
NUT (QTY:14 S/N: 2016981593 & BELOW) BS-703115
...
19
WASHER BS-5025337FS
...
20
WASHER BS-703350
...
21
NUT, 5/16-18 HEX SERR BS-5025139SM
...
22
NUT, 5/16-18 HEX SERR (QTY:4 S/N: 2016981593 & BELOW) BS-5025127SM
...
23
NUT, 5/16-24 HEX NYLO BS-5025045SM
...
24
BOLT - 5/16-18 BS-5023157SM
...
25
COLLAR, 5/16" SET BS-5020047SM
...
26
BEARING, BRONZE FLANG BS-5021098SM
...
27
PLATE, BRAKE ARM (S/N: 2016981594 & ABOVE) BS-5413575AYP
...
28
PIN, CLEVIS (S/N: 2016981594 & ABOVE) BS-84003641
...
29
PIN - COTTER (S/N: 2016981594 & ABOVE) BS-5025203X6SM
