Ferris 5901391 - IS2100Z Series w/ 61" Mower Deck & ROPS (IS2100ZBV2661 CAL) Zero-Turn Riding Mower

Model: 5901391-IS2100ZSeriesw&ROPS(IS2100ZBV2661CAL)

Back To Assemblies

Save Part Not Listed?
product name

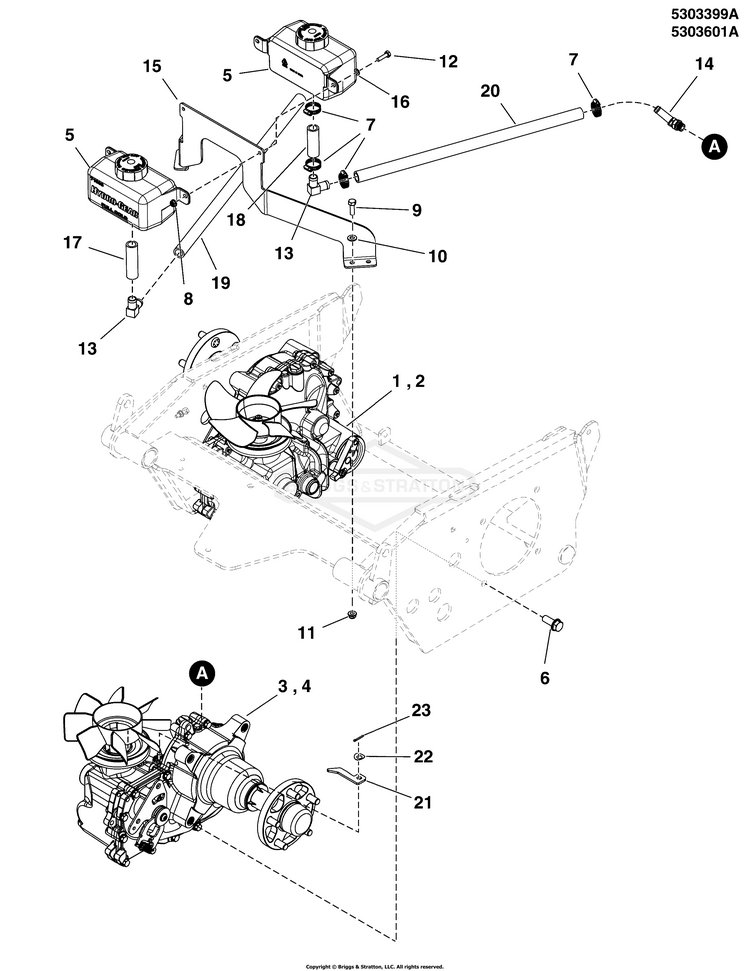

Hydraulic Group

...
...
1
TRANSAXLE (Right side)(61" Models Only) BS-84008006
...
2
TRANSAXLE (Right side)(52" Models Only) BS-84008007
...
3
TRANSAXLE (Left side)(61" Models Only) BS-84007999
...
4
TRANSAXLE (Left side)(52" Models Only) BS-84008000
...
5
HYDRO TANK, HYDRO-GEA BS-5101998YP
...
6
BOLT,HEX FLG,SER,GD8 BS-5025535YP
...
7
CLAMP, #10 HOSE, STAI BS-5021164SM
...
8
NUT BS-5025391FS
...
9
BOLT BS-5025011X8FS
...
10
WASHER BS-703350
...
11
NUT BS-703115
...
12
BOLT, 1/4-20 X 1", GD BS-5025010X8SM
...
13
FITTING, ELBOW, 5/8" BS-5023119SM
...
14
FITTING BS-5104409YP
...
15
PLATE, TANK MOUNT, 2100 - BLK BS-5413062AYP
...
16
WASHER BS-703332
...
17
HOSE, 5/8, PUSH-LOCK BS-5050933X3YP
...
18
HOSE, 5/8, PUSH-LOCK, 2.50 BS-5050933X2P5YP
...
19
HOSE BS-84009598
...
20
HOSE BS-5050933X20FS
...
21
ARM, TRANS RELEASE BS-5104436YP
...
22
WASHER,WAVE,M10 BS-5023202SM
...
23
PIN, COTTER, 3/32X.75 BS-703312
