Ferris 5901391 - IS2100Z Series w/ 61" Mower Deck & ROPS (IS2100ZBV2661 CAL) Zero-Turn Riding Mower

Model: 5901391-IS2100ZSeriesw&ROPS(IS2100ZBV2661CAL)

Back To Assemblies

Save Part Not Listed?
product name

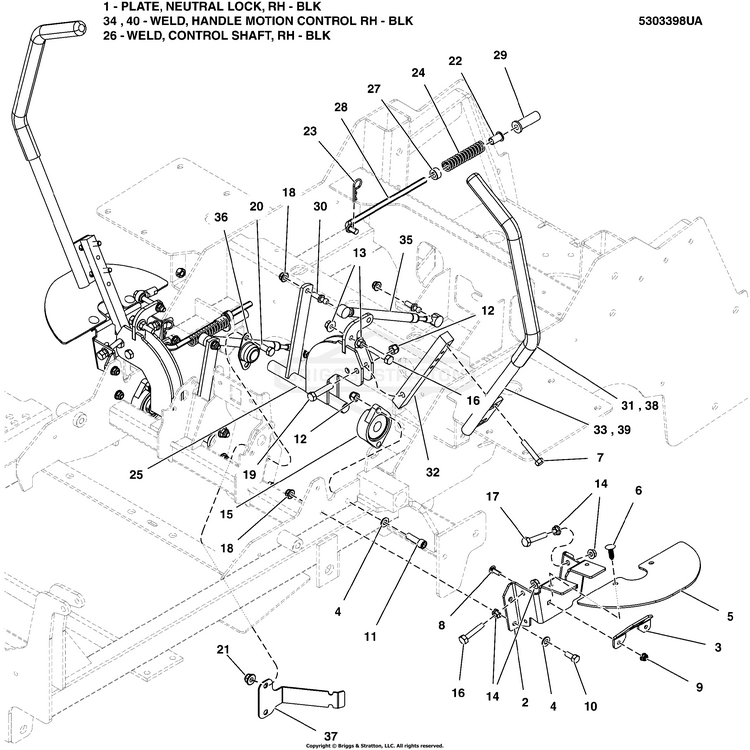

Motion Control Group - Handles & Dampeners

...
...
1
PLATE, NEUT LOCK, RH BS-5411451AYP
...
2
PLATE, NEUT LOCK, LH BS-5411452AYP
...
3
BRACKET, SWITCH MOUNT BS-5409984AYP
...
4
WASHER BS-703350
...
5
GUARD, RUBBER MOTION BS-5401248SM
...
6
PUSH RIVET (TREE TYPE BS-5025431SM
...
7
SCREW, 5/16-18 BS-703354
...
8
BOLT,1/4-20X.75 BS-703101
...
9
NUT BS-5025391FS
...
10
BOLT, 5/16-18 X 3/4" BS-5025011X6SM
...
11
BOLT, 3/8-16 X 1-1/4 BS-5025327SM
...
12
NUT, 3/8-16 HEX NYLON BS-5025096SM
...
13
NUT, 5/16-18 HEX SERR BS-5025139SM
...
14
NUT, 5/16-18 HEX SERR BS-5025127SM
...
15
BEARING, FLANGE BS-5021499SM
...
16
BOLT, 5/16-18 X 1-1/4 BS-5025055X10YP
...
17
BOLT, 5/16-18 X 1-3/4 BS-5025055X14SM
...
18
NUT BS-703115
...
19
BOLT, 3/8-16 X 1-3/4" BS-5025013X14SM
...
20
BOLT, 3/8-16 X 3/4" G BS-5025013X6SM
...
21
NUT, 3/8-16 HEX NYLOCK BS-5025394SM
...
22
BUSHING, NYLON BS-5023260SM
...
23
PIN, HAIR, .0915 X 1-7/8 BS-5025210YP
...
24
SPRING, REVERSE RETUR BS-5022645SM
...
25
WELD, CONTROL SHAFT, LH - BLK BS-5411446AYP
...
26
WELD, CONTROL SHAFT, RH - BLK BS-5411445AYP
...
27
COLLAR, 3/8" SET BS-5010546SM
...
28
ROD, NEUTRAL BS-5100947SM
...
29
BUSHING, FLANGED, 3/8 BS-5104375YP
...
30
10MM BALL STUD, 5/16- BS-5101307SM
...
31
GRIP, Handle (S/N: 2017515463 & Below) BS-7100051YP
...
32
MOUNT, CONTROL ARM - BLK (9.0" Total Length, 4 Adjustment Holes) BS-5047004A
...
33
WELD, HANDLE MOTION CONTROL LH - BLK (S/N: 2017515463 & Below) BS-5400636AYP
...
34
WELD, HANDLE MOTION CONTROL RH - BLK (S/N: 2017515463 & Below) BS-5400637AYP
...
35
DAMPNER, CONTROL BS-5100940SM
...
36
BEARING, BRONZE FLANG BS-5021098SM
...
37
BRACKET, HARNESS MOUNT, 2100 - BLK BS-5413137A
...
38
GRIP, FOAM, 1" ID, 16" LONG (S/N: 2017515464 & Above) BS-5104722YP
...
39
CONTROL, HANDLE (S/N: 2017515464 & Above) BS-84004629
...
40
CONTROL, HANDLE (S/N: 2017515464 & Above) BS-84004630
