Ferris 5901391 - IS2100Z Series w/ 61" Mower Deck & ROPS (IS2100ZBV2661 CAL) Zero-Turn Riding Mower

Model: 5901391-IS2100ZSeriesw&ROPS(IS2100ZBV2661CAL)

Back To Assemblies

Save Part Not Listed?
product name

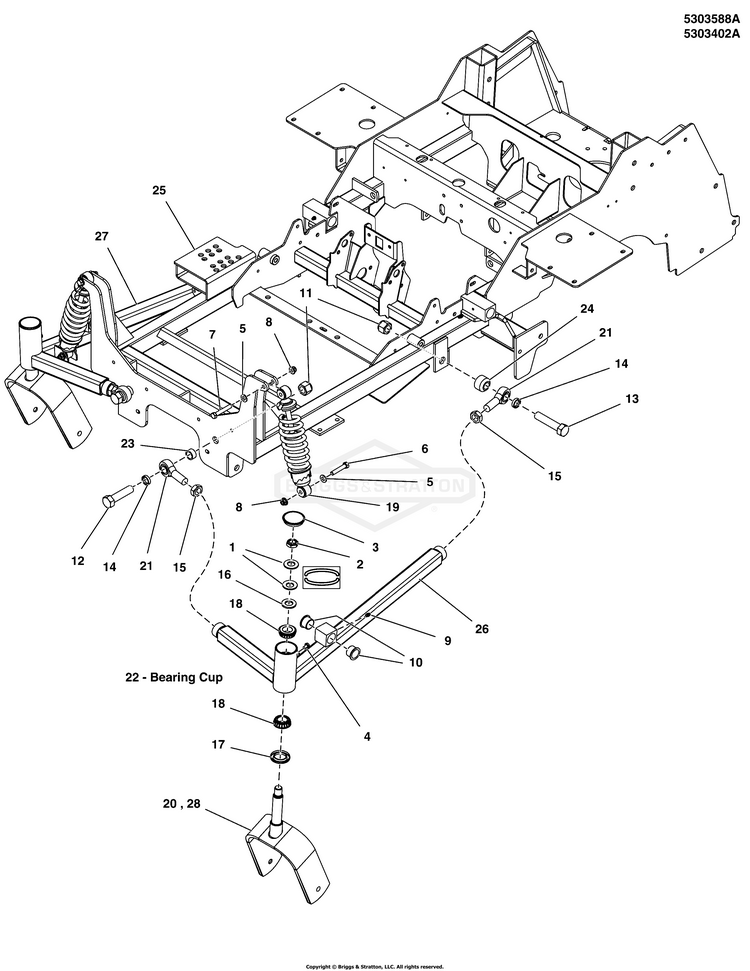

Main Frame & Front Suspension Group

...
...
1
WASHER, BELLEVILLE BS-5025449SM
...
2
NUT - 3/4-16 HEX JAM BS-5025448SM
...
3
CAP BS-5109845FS
...
4
BOLT - 1/4-28 X 1/2 BS-5025457SM
...
5
WASHER BS-5025156FS
...
6
CAPSCREW, 3/8-16X2 BS-703589
...
7
BOLT, 3/8-16 X 2-1/4" BS-5025013X18SM
...
8
NUT, 3/8-16 HEX NYLOCK BS-5025394SM
...
9
GREASE FITTING, 1/4-2 BS-5020095SM
...
10
BUSHING, 1.00X1.13X.7 BS-5023356SM
...
11
NUT, 3/4-16 HEX NYLON BS-5025284SM
...
12
BOLT, 3/4-16 X 3" YZ BS-5025265X24SM
...
13
BOLT, 3/4-16 X 3-1/2" BS-5025265X28SM
...
14
SPACER, .76 X 1.00 X BS-5047461SM
...
15
NUT, 3/4-16 HEX JAM BS-5025093SM
...
16
WASHER, 3/4" SAE BS-5025160SM
...
17
SEAL, GREASE BS-5021072SM
...
18
BEARING, TAPERED ROLL BS-5020884SM
...
19
SHOCK / SPRING ASSM BS-5104052YP
...
20
KIT, YOKE (61" Models) BS-84009794
...
21
BALL JOINT, 3/4-16, M BS-5022039SM
...
22
BEARING CUP BS-5020883SM
...
23
SPACER, .76 X 1.00 X BS-5046092SM
...
24
SPACER, .75 X 1.50 X BS-5046093SM
...
26
ARM ASSEMBLY BS-5411433BFS
...
27
ARM ASSEMBLY BS-5411432BFS
...
28
YOKE, CASTER (52" Models S/N: 4000795111 and below) BS-5402208BFS
...
28
YOKE, CASTER (52" Models S/N: 4000795112 and above) BS-5419196BFS
