Ferris 5901391 - IS2100Z Series w/ 61" Mower Deck & ROPS (IS2100ZBV2661 CAL) Zero-Turn Riding Mower

Model: 5901391-IS2100ZSeriesw&ROPS(IS2100ZBV2661CAL)

Back To Assemblies

Save Part Not Listed?
product name

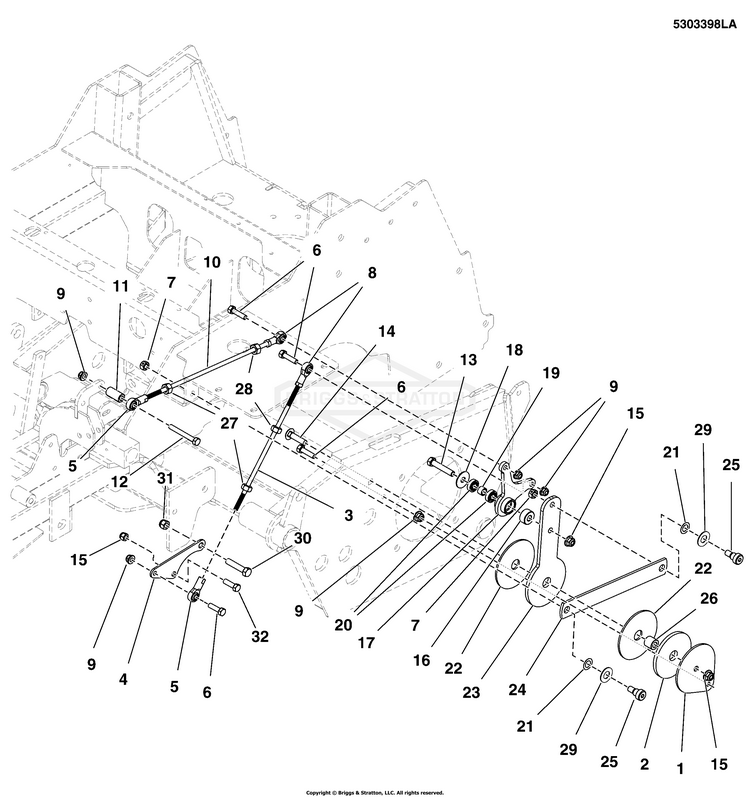

Motion Control Group - Control System

...
...
1
PLATE, CTRL SYSTEM LK BS-5410271AYP
...
2
PAD, .77 X 3.50 X .25 BS-5103704YP
...
3
ROD, 5/16-24 BS-5104053YP
...
4
PLATE, CONTROL MOUNT BS-5411301AYP
...
5
BALL JOINT 5/16-24 RH BS-5104493YP
...
6
BOLT, 5/16-18 X 1-1/4 BS-5025055X10YP
...
7
NUT, 3/8-16 HEX SIDE BS-5025100SM
...
8
BALL JOINT 5/16-24 LH BS-5104494YP
...
9
NUT BS-703115
...
10
ROD, HYDRO LINKAGE BS-5102255YP
...
11
SPACER, .33X.63X1.25 BS-5102599YP
...
12
SCREW BS-703868
...
13
BOLT BS-84007037
...
14
BOLT, 3/8-16 X 1-1/2 BS-5025146X12YP
...
15
NUT, 3/8-16 HEX NYLOCK BS-5025394SM
...
16
SPACER BS-5046860SM
...
17
PIVOT, CONTROL SYSTEM BS-5103718YP
...
18
WASHER, 3/8" FENDER BS-5025165SM
...
19
SPACER, .39X.55X.38 BS-5103676YP
...
20
BEARING, .375ID BS-5102003YP
...
21
WAVE WASHER BS-5103784YP
...
22
PAD, CONTROL SYSTEM BS-5103672YP
...
23
PLATE, CTRL SYST ARM BS-5410268YP
...
24
LINK, Control BS-5411375AYP
...
25
BOLT, 3/8-16 X 3/8", BS-5025356SM
...
26
SPACER, .39X.75X.69 BS-5103705YP
...
27
NUT BS-5025033FS
...
28
NUT, 5/16-24 HEX, LH BS-5023212SM
...
29
WASHER, 1/2" YELLOW BS-5025440SM
...
30
BOLT, 7/16-14 BS-5025015X6SM
...
31
NUT, 7/16-14 HEX BS-5025044SM
...
32
BOLT, 3/8-16 X 1" GD5 BS-5025013X8SM
