Ferris 5901391 - IS2100Z Series w/ 61" Mower Deck & ROPS (IS2100ZBV2661 CAL) Zero-Turn Riding Mower

Model: 5901391-IS2100ZSeriesw&ROPS(IS2100ZBV2661CAL)

Back To Assemblies

Save Part Not Listed?
product name

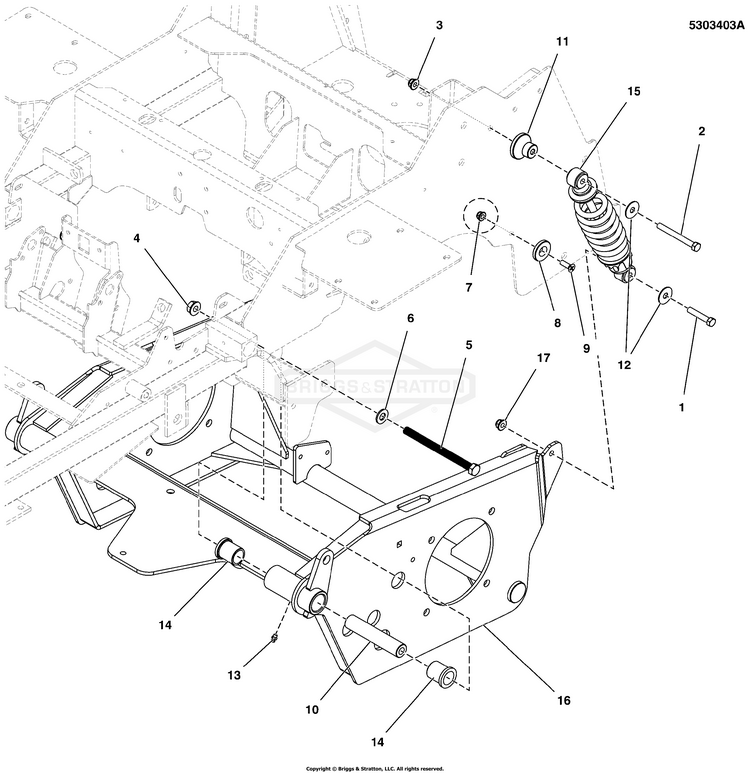

Rear Suspension Group

...
...
1
CAPSCREW, 3/8-16X2 BS-703589
...
2
BOLT, 3/8-16 X 3-1/2" BS-5025013X28SM
...
3
NUT, 3/8-16 HEX NYLOCK BS-5025394SM
...
4
NUT BS-770225
...
5
BOLT, 1/2-13 X 6-1/2" BS-5025017X52SM
...
6
WASHER, 1/2" SAE BS-5025158SM
...
7
NUT BS-703115
...
8
SPACER BS-5102701YP
...
9
SCREW, 5/16-18 X 1 BS-5025594YP
...
10
SPACER, .52 X 1.00 X BS-5100194SM
...
11
SPACER BS-5104704YP
...
12
WASHER, 3/8" FENDER BS-5025165SM
...
13
GREASE FITTING, 1/4-2 BS-5020095SM
...
14
BUSHING, FLANGE BS-5021541SM
...
15
SHOCK / SPRING ASSM BS-5104060YP
...
16
CRADLE, Suspension BS-84007760
...
17
NUT, 3/8-16 HEX NYLOCK BS-5025394SM
