Ferris 5901391 - IS2100Z Series w/ 61" Mower Deck & ROPS (IS2100ZBV2661 CAL) Zero-Turn Riding Mower

Model: 5901391-IS2100ZSeriesw&ROPS(IS2100ZBV2661CAL)

Back To Assemblies

Save Part Not Listed?
product name

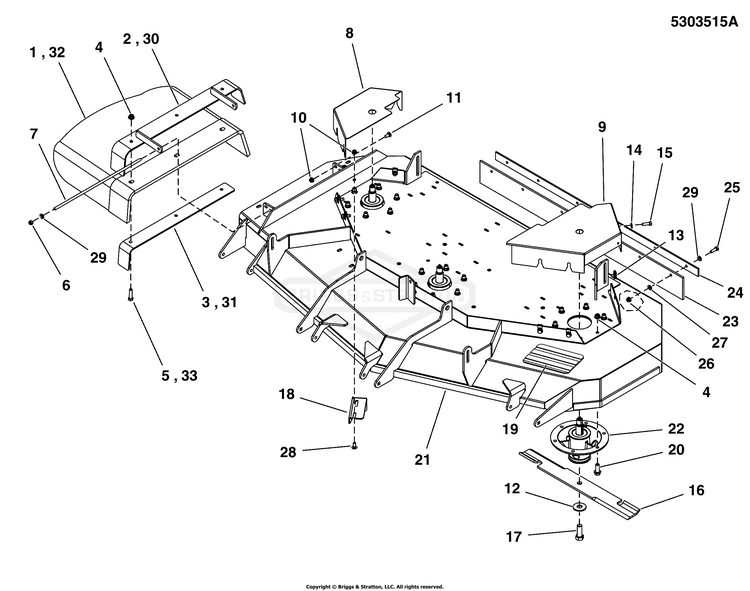

61" Mower Deck - Housing, Covers, Spindles, & Blades

...
...
1
CHUTE, Discharge (S/N: 2017094785 & Below) BS-5404834YP
...
2
FRAME CHUTE, 61 (S/N: 2017094785 & Below) BS-5404716AYP
...
3
FRAME, CHUTE (S/N: 2017094785 & Below) BS-5408018AFS
...
4
NUT, 3/8-16 HEX NYLOCK BS-5025394SM
...
5
CAPSCREW,3/8-16X1.5 (S/N: 2017094785 & Below) BS-703406
...
6
NUT, 5/16-24 HEX NYLO BS-5025045SM
...
7
MOUNT, Chute BS-5061300SM
...
8
GUARD, PULLEY BS-5400791BFS
...
9
GUARD, PULLEY BS-5405484BFS
...
10
NUT BS-703115
...
11
BOLT, 5/16-18 X 3/4" BS-5025011X6SM
...
12
WASHER, 5/8" YZ BS-5025477SM
...
13
PLATE, Cover BS-84013247
...
14
WASHER, 5/16" GD.9 FL BS-5025292SM
...
15
BOLT, 5/16-18 X 3/4" BS-5025011X6SM
...
16
BLADE SET, 61 DECK (3) (SV)(Set of 3 blades) BS-5101755S
...
17
BOLT BS-5025320X14FS
...
18
DEFLECTOR BS-84003247
...
19
SAFETY WALK BS-5101005SM
...
20
SCREW BS-704038
...
21
DECK SHELL W/DECALS (5413082B)(Domestic Models Only) BS-84009269
...
21
DECK SHELL W/ DECALS, 61, IS2100Z EXP (SV) (5413082B)(Export Models Only) BS-5600801
...
22
SPINDLE ASSY BS-5100993SM
...
23
FLAP BS-5102036YP
...
24
PLATE, SUPPORT BS-5405322AYP
...
25
BOLT BS-5025011X8FS
...
26
NUT BS-703115
...
27
RETAINER, GR5, 5/16 BS-703297
...
28
BOLT, 5/16-18 X 3/4", BS-5025145X6SM
...
29
WASHER BS-703350
...
30
MOUNT (S/N: 2017094786 & Above) BS-84008171
...
31
PLATE, SUPPORT (S/N: 2017094786 & Above) BS-84003245
...
32
CHUTE, RUBBER DISCHARGE (5104442) (S/N: 2017094786 & Above) BS-84011105
...
33
BOLT, 3/8-16 X 1-1/2 (S/N: 2017094786 & Above) BS-5025146X12YP
