Ferris 5901391 - IS2100Z Series w/ 61" Mower Deck & ROPS (IS2100ZBV2661 CAL) Zero-Turn Riding Mower

Model: 5901391-IS2100ZSeriesw&ROPS(IS2100ZBV2661CAL)

Back To Assemblies

Save Part Not Listed?
product name

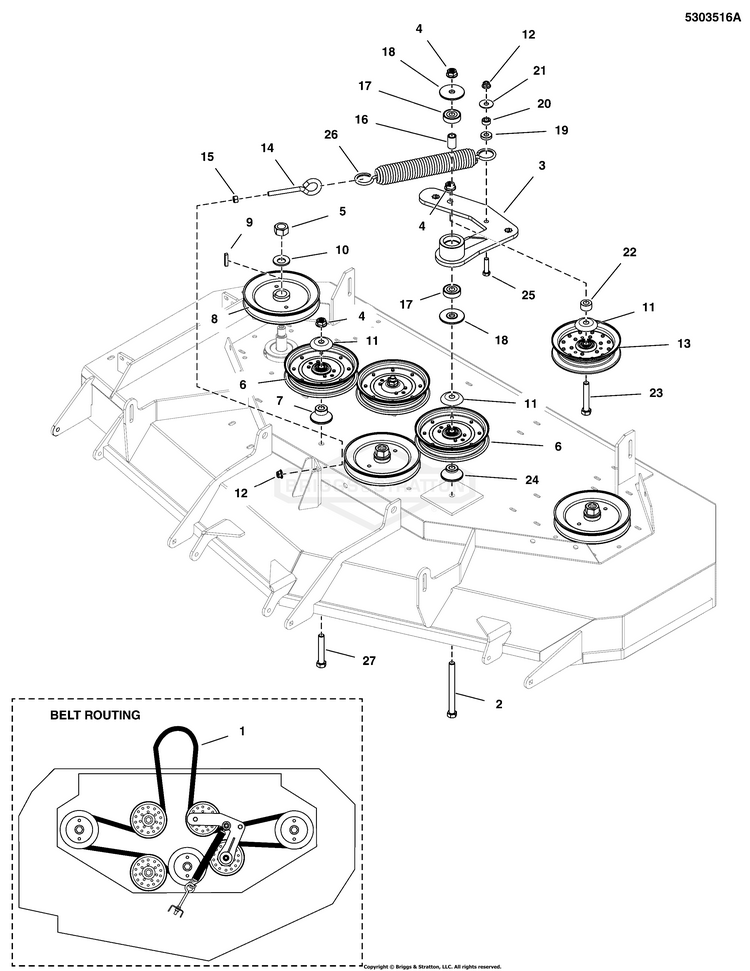

61" Mower Deck - Pulleys, Belt, & Idler Arm

...
...
1
BELT, 5V-SEC, 178.25" BS-5103616YP
...
2
BOLT, 1/2-13 X 5-1/2" BS-5025017X44SM
...
3
IDLER, Arm BS-5415907AYP
...
4
NUT BS-770225
...
5
NUT, 3/4-16 HEX BS-5025405SM
...
7
IDLER MNT BS-5103430YP
...
8
PULLEY, 6.5 EOD X 25M BS-5100700SM
...
9
KEY, 1/4 SQ X 1-1/4 BS-5050407X10YP
...
10
WASHER, Belleville, 3/4 BS-770223
...
11
SHIELD, PULLEY BS-5101103SM
...
12
NUT, 3/8-16 HEX NYLOCK BS-5025394SM
...
14
EYE BOLT, 3/8-16 X 5" BS-5023497SM
...
15
NUT, HEX, 3/8-16 BS-703577
...
16
SPACER, .51 X .84 X 1 BS-5104456YP
...
17
BEARING BS-5104383YP
...
18
SPACER BS-5104379YP
...
19
SPACER, .39 X 1.00 X BS-5044960SM
...
20
SPACER, .39 X .75 X . BS-5044933SM
...
21
WASHER, 3/8" FENDER BS-5025165SM
...
22
SPACER BS-5101162YP
...
23
BOLT, 1/2-13 X 2-1/2 BS-5025017X20SM
...
24
IDLER MOUNT BS-5104342YP
...
25
CAPSCREW,3/8-16X1.5 BS-703406
...
26
SPRING BS-5104166YP
...
27
BOLT, 1/2-13 X 3" GD5 BS-5025017X24SM
