Ferris 5901391 - IS2100Z Series w/ 61" Mower Deck & ROPS (IS2100ZBV2661 CAL) Zero-Turn Riding Mower

Model: 5901391-IS2100ZSeriesw&ROPS(IS2100ZBV2661CAL)

Back To Assemblies

Save Part Not Listed?
product name

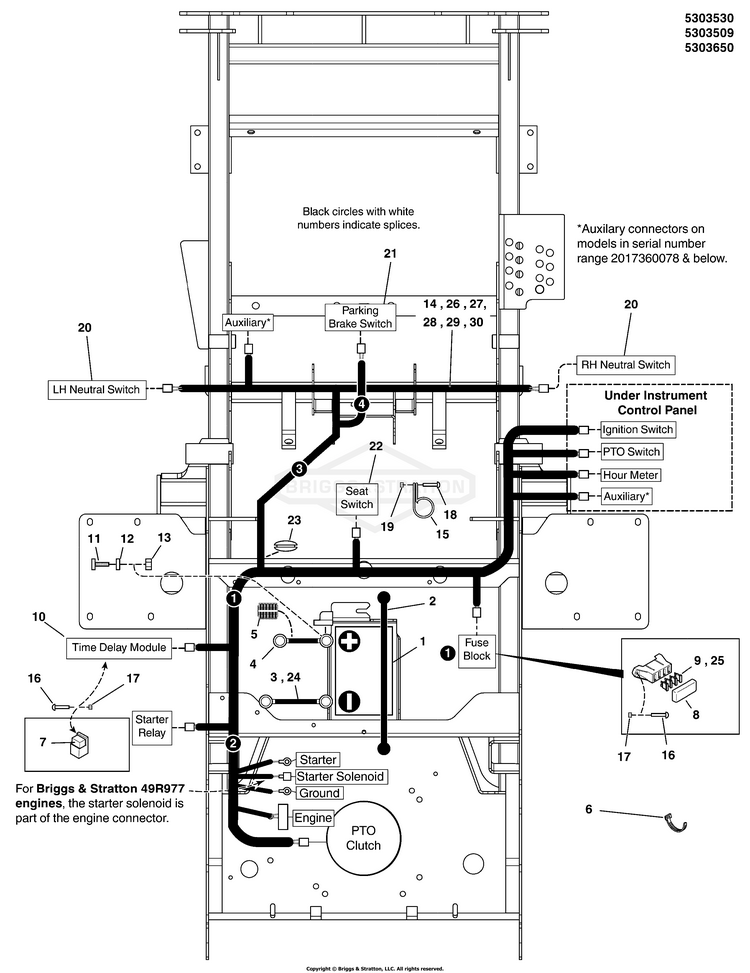

Electrical Group - Briggs & Stratton and Kawasaki Engines

...
...
2
STRAP, Rubber, 13” BS-1722009SM
...
3
BATTERY CABLE (Briggs & Stratton Engines) BS-5047690SM
...
4
BATTERY CABLE, POSITI BS-5021405SM
...
5
WIRE LOOM BS-5050927X16YP
...
6
TIE, Cable 11" Long BS-5021029SM
...
7
RELAY, 12V, 40A (SV) BS-5021766SM
...
8
COVER, VINYL FUSEBLOC BS-5022805SM
...
9
FUSE, ATO, 20 AMP (SV) BS-5021603SM
...
10
MODULE, TIME DELAY BS-5023310SM
...
11
BOLT, 1/4-20 X 3/4" G BS-5025010X6SM
...
12
WASHER BS-703332
...
13
NUT BS-5025126FS
...
14
WIRE HARNESS, M49 VANGUARD, IS2100Z (B&S 49R977 Engines - S/N: 201360078 & Below) BS-5411967YP
...
15
CLAMP BS-5021500FS
...
16
SCREW - #10-24 BS-5025179X6SM
...
17
NUT BS-5025271FS
...
18
SCREW, 1/4-20 X 1, ALLEN BH, CZ BS-5025299X8
...
19
NUT BS-5025126FS
...
20
SWITCH BS-84006599
...
21
SWITCH, LOW PROF, NC/ BS-5101280YP
...
22
SWITCH, PLUNGER, N.C. BS-5021769SM
...
23
GROMMET, 1-1/2" ID FOR 1/4" METAL BS-5102677
...
24
BATTERY CABLE, NEGATI (Kawasaki Engines) BS-5021406SM
...
25
FUSE, ATO 15 AMP (SV) BS-5101935YP
...
26
HARNESS, WIRING (Kawasaki Engines - S/N: 2017360078 & Below) BS-84010772
...
27
WIRE HARNESS, BV32, IS2100Z (B&S 543777 Engines - S/N: 2017360078 & Below) BS-5411975YP
...
28
HARNESS, WIRING (B&S 49R977 Engines - S/N: 2017360079 & Above) BS-84010776
...
29
HARNESS, WIRING (Kawasaki Engines - S/N: 2017360079 & Above) BS-84010773
...
30
HARNESS, WIRING (B&S 543777 Engines - S/N: 2017360079 & Above) BS-84010760
