Ferris 5901391 - IS2100Z Series w/ 61" Mower Deck & ROPS (IS2100ZBV2661 CAL) Zero-Turn Riding Mower

Model: 5901391-IS2100ZSeriesw&ROPS(IS2100ZBV2661CAL)

Back To Assemblies

Save Part Not Listed?
product name

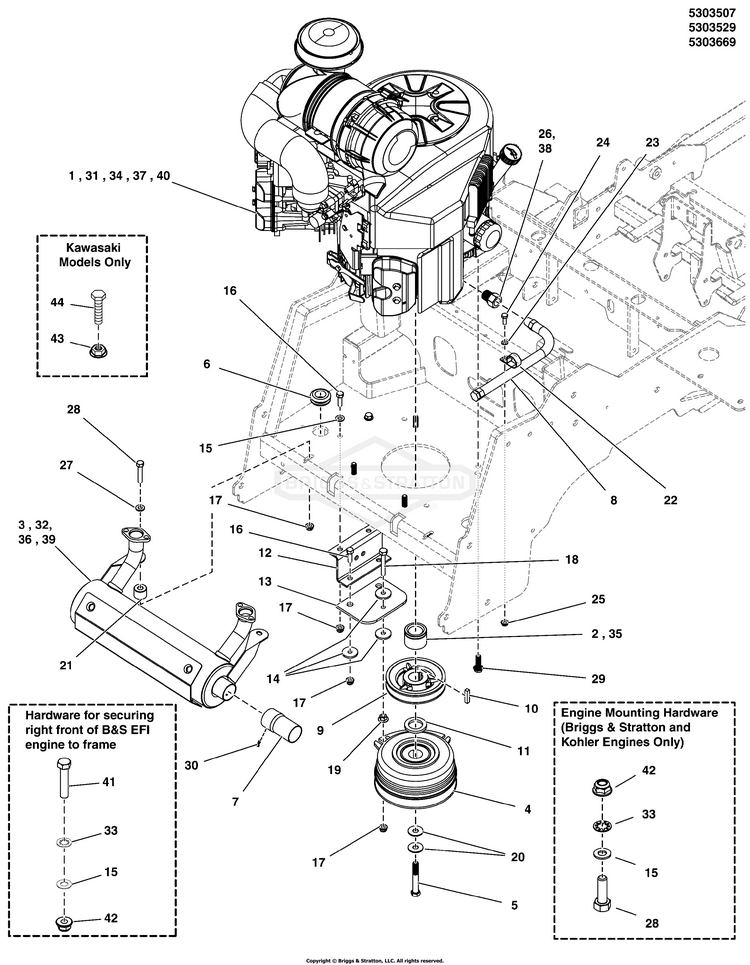

Engine & PTO Group

...
...
2
SPACER, 1.13 X 1.75 X BS-5100926YP
...
3
MUFFLER (Kawasaki Models Only)(Replacement Muffler does not require components to secure muffler to engine deck) BS-5105069YP
...
4
CLUTCH BS-5105090YP
...
5
BOLT, CRANKSHAFT, 7/1 BS-5102866YP
...
6
GROMMET, 7/8"ID BS-5103944YP
...
7
EXTENSION, TAILPIPE (Kawasaki and B&S Commercial Turf Models Only) BS-5104348YP
...
8
HOSE, OIL DRAIN BS-5048681SM
...
9
PULLEY, 4.75 OD X 1-1 BS-5021682YP
...
10
KEY, 1/4 SQ X 1-1/4 BS-5050407X10YP
...
11
SPACER, 1.13 X 1.75 (Kawasaki & Briggs & Stratton Models Only) BS-5046904YP
...
12
ANCHOR, CLUTCH BS-5410367AYP
...
13
CLUTCH ANCHOR PAD BS-5043636SM
...
14
WASHER, .34 X 1.25 X BS-5044617SM
...
15
WASHER (Qty: 2 Kawasaki Models Only) BS-703350
...
16
BOLT BS-5025011X8FS
...
17
NUT (Qty: 8 Kawasaki Models Only) BS-703115
...
18
BOLT, 5/16-18 X 2-1/4 BS-5025055X18YP
...
19
NUT, 5/16-18 HEX SERR BS-5025139SM
...
20
BELLEVILLE WASHER BS-5025585YP
...
21
SPACER, .39 X 1.00 X (Kawasaki Models Only) BS-5046446SM
...
22
CLAMP BS-5021500FS
...
23
WASHER BS-703332
...
24
BOLT, 1/4-20 X 3/4" G BS-5025010X6SM
...
25
NUT BS-5025126FS
...
26
ADAPTER, OIL DRAIN (Kawasaki Models Only) BS-5022234SM
...
27
WASHER, 5/16" GD.9 FL (Kawasaki Models Only) BS-5025292SM
...
28
BOLT (Qty: 2 Kawasaki & B&S EFI Models Only) BS-5025025X14YP
...
29
BOLT, FLANGE (Kawasaki Models Only) BS-84003591
...
30
SCREW,SELF-TAP,#8-32 (Kawasaki and B&S Commercial Turf Models Only) BS-5025470YP
...
32
MUFFLER, RIGHT OUTLET (Briggs & Stratton 49R977 Only) BS-706900
...
33
WASHER, 5/16" INT. TO (Briggs & Stratton 49R977 Only) BS-5025188SM
...
35
SPACER (Kohler Models Only) BS-84010230
...
38
METRIC ADAPTER, M14-1 (Briggs & Stratton 543777 Only) BS-5100366SM
...
39
MUFFLER (Briggs & Stratton 543777 Only) BS-846819
...
41
BOLT (Briggs & Stratton 49E877 Only) BS-5025025X12YP
...
42
NUT (Briggs & Stratton Models) BS-5025616YP
...
43
NUT, M8-1.25 SERR. FL (Kawasaki Models Only) BS-5025355SM
...
44
CAPSCREW, M8-1.25X16 (Kawasaki Models Only) BS-703987
