Ferris 5901391 - IS2100Z Series w/ 61" Mower Deck & ROPS (IS2100ZBV2661 CAL) Zero-Turn Riding Mower

Model: 5901391-IS2100ZSeriesw&ROPS(IS2100ZBV2661CAL)

Back To Assemblies

Save Part Not Listed?
product name

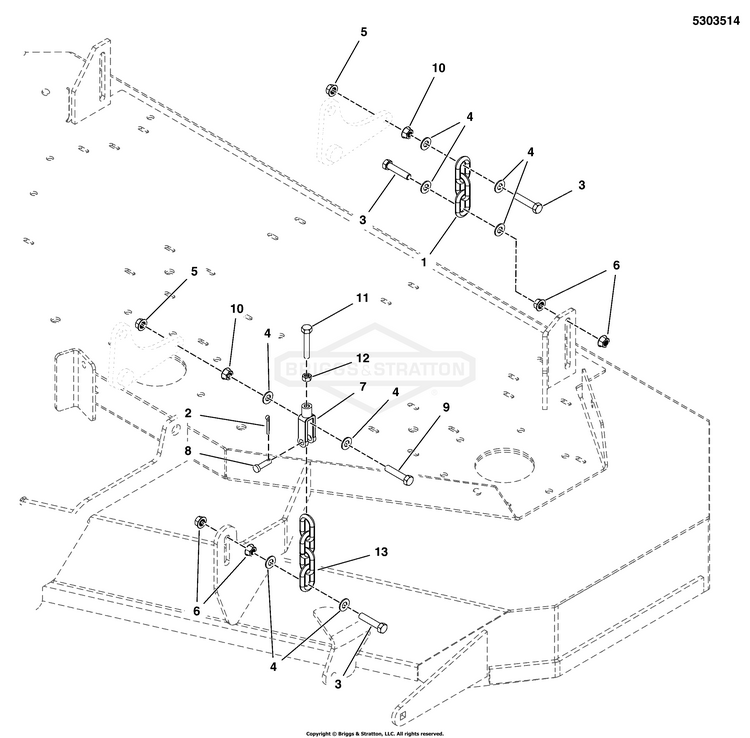

61" Mower Deck - Hanger Chains

...
...
1
CHAIN, 5/16" GD30, 3 BS-5050878X3SM
...
2
PIN, COTTER, 3/32X.75 BS-703312
...
3
BOLT, 3/8-16 X 1-3/4" BS-5025013X14SM
...
4
WASHER BS-5025156FS
...
5
NUT, 3/8-16 HEX NYLOCK BS-5025394SM
...
6
NUT, 3/8-16 HEX SERRA BS-5025128SM
...
7
CLEVIS, 5/16-18, 3/8 BS-5100375YP
...
8
PIN - CLEVIS BS-5025214X9SM
...
9
CAPSCREW, 3/8-16X2 BS-703589
...
10
NUT, HEX, 3/8-16 BS-703577
...
11
BOLT, 5/16-18 X 1-3/4 BS-5025055X14SM
...
12
NUT, 5/16-18 HEX BS-5025032SM
...
13
CHAIN, 5/16", 4 LINKS BS-5050878X4YP
