Ferris 5901391 - IS2100Z Series w/ 61" Mower Deck & ROPS (IS2100ZBV2661 CAL) Zero-Turn Riding Mower

Model: 5901391-IS2100ZSeriesw&ROPS(IS2100ZBV2661CAL)

Back To Assemblies

Save Part Not Listed?
product name

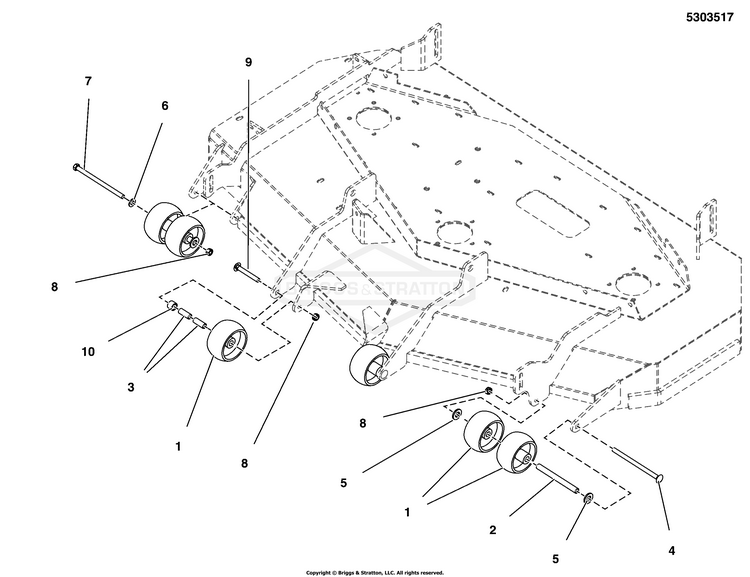

52" & 61" Mower Deck Group - Rollers S/N: 2017954955 & Below

...
...
1
GAUGE WHEEL BS-1714760SM
...
2
SPACER, .38 X .50 X 5 BS-5046586SM
...
3
SPACER, .38 X .50 X 1 BS-5041931SM
...
4
BOLT,CARR, 3/8-16X6 BS-5025146X48YP
...
5
WASHER, 1/2" YELLOW BS-5025440SM
...
6
WASHER BS-5025156FS
...
7
BOLT, 3/8-16 X 6" GD5 BS-5025013X48SM
...
8
NUT, 3/8-16 HEX SIDE BS-5025100SM
...
9
BOLT, 3/8-16 X 3-1/2 BS-5025146X28YP
...
10
SPACER, .51 X .75 X . BS-5047027SM
