Ferris 5901391 - IS2100Z Series w/ 61" Mower Deck & ROPS (IS2100ZBV2661 CAL) Zero-Turn Riding Mower

Model: 5901391-IS2100ZSeriesw&ROPS(IS2100ZBV2661CAL)

Back To Assemblies

Save Part Not Listed?
product name

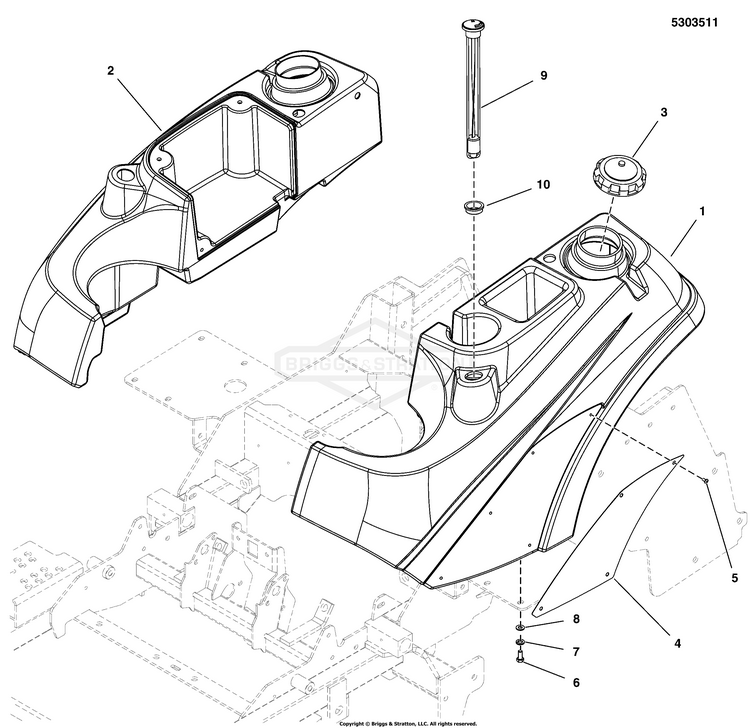

Fuel Tank & Mount Group

...
...
1
TANK, FUEL, LH BS-5103178YP
...
2
TANK, FUEL, RH BS-5103177YP
...
3
CAP, FUEL TANK BS-84005958
...
4
BADGE BS-5401095BFS
...
5
CAPSCREW BS-84010142
...
6
BOLT, 5/16-18 X 3/4" BS-5025011X6SM
...
7
WASHER, 5/16" LOCK BS-5025170SM
...
8
WASHER, 5/16" GD.9 FL BS-5025292SM
...
9
GAUGE, FUEL, 12 BS-5022917SM
...
10
GROMMET, FUEL GAUGE BS-5022917X1SM
Schematic Image Zoomed
