Ferris 5901391 - IS2100Z Series w/ 61" Mower Deck & ROPS (IS2100ZBV2661 CAL) Zero-Turn Riding Mower

Model: 5901391-IS2100ZSeriesw&ROPS(IS2100ZBV2661CAL)

Back To Assemblies

Save Part Not Listed?
product name

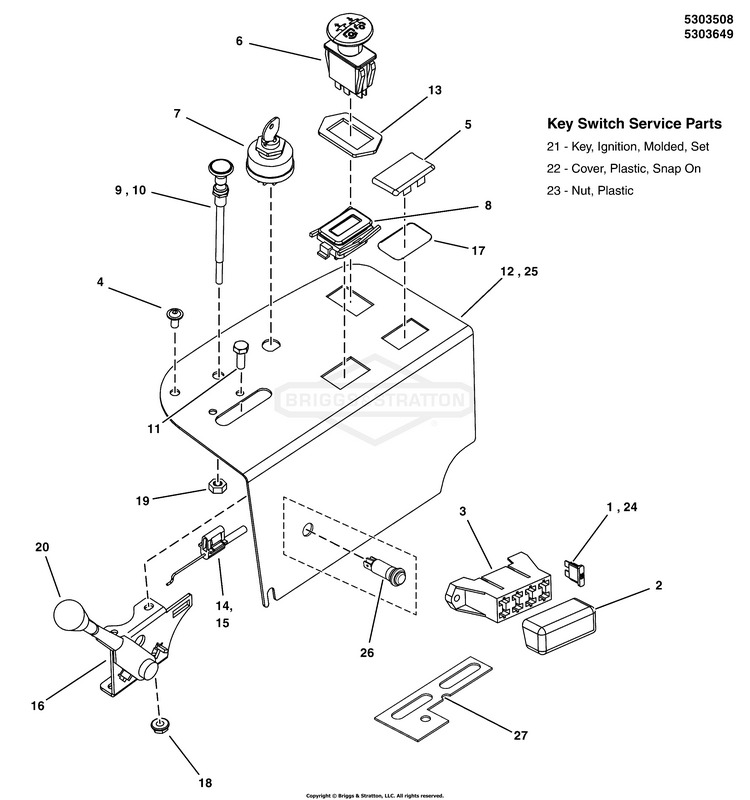

Instrument Control Panel Group

...
...
1
FUSE, ATO, 20 AMP BS-5021603SM
...
2
COVER, VINYL FUSEBLOC BS-5022805SM
...
3
FUSE BLOCK BS-5021518SM
...
4
SCREW, FLANGE BS-84002228
...
5
PLUG, BLACK PLASTIC BS-1709188SM
...
6
SWITCH-PTO PUSH BS-1722887SM
...
7
SWITCH, IGNITION BS-5020927FS
...
9
CABLE, CHOKE CONTROL, (Kawasaki and Briggs & Stratton 49R977 Engines) BS-5046501SM
...
10
CABLE, CHOKE CTRL (Briggs & Stratton 543777 Engines Only) BS-5047779SM
...
11
SCREW - #10-24 BS-5025179X6SM
...
12
PANEL, Control (Carbuerated models only) BS-5411933AAFS
...
13
RING, SWITCH RETAINER BS-5022222SM
...
14
CABLE, THROTTLE, 42 (All other models) BS-5101073SM
...
15
CABLE, THROTTLE 47" (Briggs & Stratton 543777 Engines Only) BS-5101076SM
...
16
LEVER, THROTTLE CONTR BS-5101537SM
...
17
O-RING, 7/8" ID X 1/1 BS-5022269SM
...
18
NUT BS-5025271FS
...
19
NUT, HEX, 3/8-24 BS-703895
...
20
KNOB, Throttle Control BS-5046360X1SM
...
21
KEY-IGNITION INDAK BS-1717163SM
...
22
BOOT, Ignition Switch BS-1704346SM
...
23
NUT, PLASTIC (SV) BS-5022791SM
...
24
FUSE, ATO 15 AMP BS-5101935YP
...
25
PANEL, CONTROL, IS2100Z - BLK (EFI models only) BS-5412044AYP
...
26
LIGHT, INDICATOR (EFI models only) BS-5106974FS
