Ferris 5901391 - IS2100Z Series w/ 61" Mower Deck & ROPS (IS2100ZBV2661 CAL) Zero-Turn Riding Mower

Model: 5901391-IS2100ZSeriesw&ROPS(IS2100ZBV2661CAL)

Back To Assemblies

Save Part Not Listed?
product name

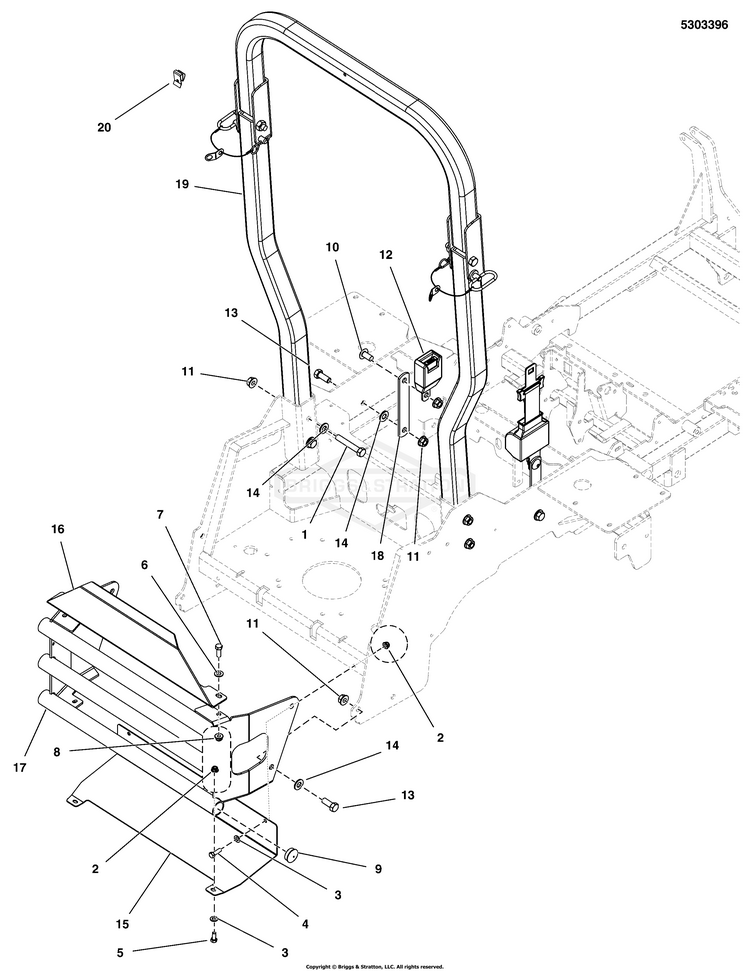

Rear Bumper & ROPS

...
...
1
BOLT, 1/2-13 X 3" GD5 BS-5025017X24SM
...
2
NUT BS-703115
...
3
WASHER BS-703350
...
4
BOLT BS-5025011X8FS
...
5
BOLT, 5/16-18 X 3/4" BS-5025011X6SM
...
6
WASHER, 3/8" BS-5025293SM
...
7
BOLT, 3/8-16 X 1" GD5 BS-5025013X8SM
...
8
NUT, 3/8-16 HEX NYLOCK BS-5025394SM
...
9
PLUG, PANEL, 1.25 - B BS-5023484SM
...
10
SCREW, 1/2-13 X 1.00, BS-5100267SM
...
11
NUT BS-770225
...
12
SEAT BELT, RETRACTING BS-5100139SM
...
13
BOLT, 1/2-13 X 1-1/4 BS-5025017X10YP
...
14
WASHER, 1/2" SAE BS-5025158SM
...
15
PLATE, HEAT SHIELD (All other models) BS-5410485AYP
...
15
PLATE, HEAT SHIELD, IS2100, KOH - BLK (Kohler models only) BS-5412045A
...
16
PLATE, CARBURETOR COVER BS-5410486BFS
...
17
BUMPER (All other models) BS-5410483BFS
...
17
BUMPER (Kohler models only) BS-84010484
...
18
PLATE, SEAT BLT ANCH. BS-5410295AYP
...
20
ANTI-RATTLE SPRING, FEMCO #230328972 (SV) (SV) BS-5103403X1YP
