Ferris 5901391 - IS2100Z Series w/ 61" Mower Deck & ROPS (IS2100ZBV2661 CAL) Zero-Turn Riding Mower

Model: 5901391-IS2100ZSeriesw&ROPS(IS2100ZBV2661CAL)

Back To Assemblies

Save Part Not Listed?
product name

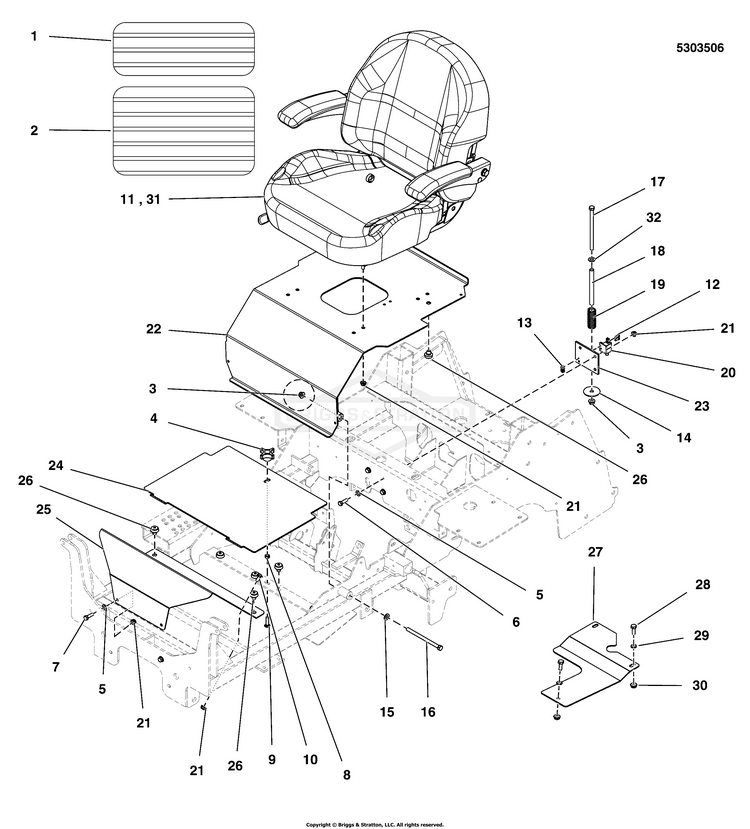

Seat Plate & Floor Group

...
...
1
SAFETY WALK, FLOOR RE BS-5101374YP
...
2
SAFETY WALK, FLOOR PL BS-5101333YP
...
3
NUT, 3/8-16 HEX NYLOCK BS-5025394SM
...
4
KNOB-INT THR .312-18 BS-1670578SM
...
5
WASHER BS-703350
...
6
BOLT BS-5025011X8FS
...
7
BOLT, 5/16-18 X 3/4" BS-5025011X6SM
...
8
NUT BS-703164
...
9
BOLT, 5/16-18 X 1-1/4 BS-5025145X10YP
...
10
BOLT, 5/16-18 X 3/4", BS-5025145X6SM
...
11
SEAT ASSEMBLY (S/N: 2017192382 & Below) BS-5108191FS
...
12
SCREW - #10-24 BS-5025179X6SM
...
13
NUT BS-592578
...
14
WASHER, .39 X 2.00 X BS-5025326SM
...
15
WASHER BS-5025156FS
...
16
BOLT, 3/8-16 X 5-1/2" BS-5025013X44SM
...
17
BOLT, 3/8-16 X 6" GD5 BS-5025013X48SM
...
18
SPACER, .38 X .50 X 5 BS-5046586SM
...
19
SPRING, .688 ID X .13 BS-5100356SM
...
21
NUT BS-703115
...
22
SEAT PLATE ASSEMBLY (5411749B)(USA Models Only) BS-84008921
...
22
ASSM, SEAT PLATE W/ DECALS, IS2100Z EXP (SV) (5411749B)(Export Models Only) BS-5600733
...
23
WELD, SEAT SWITCH BS-5410583AYP
...
24
PLATE, FLOOR BS-5410296BFS
...
25
PLATE, FLOOR BS-5410763BFS
...
26
MOUNT-VIBRATION BS-197546GS
...
27
GUARD, DEBRIS BS-5411984AYP
...
28
BOLT, 1/4-20 X 3/4" G BS-5025010X6SM
...
29
WASHER BS-703332
...
30
NUT BS-5025126FS
...
31
SEAT (S/N: 2017192383 & Above) BS-84003661
...
32
WASHER, 3/8 USS BS-5025401YP
