Ferris 5901391 - IS2100Z Series w/ 61" Mower Deck & ROPS (IS2100ZBV2661 CAL) Zero-Turn Riding Mower

Model: 5901391-IS2100ZSeriesw&ROPS(IS2100ZBV2661CAL)

Back To Assemblies

Save Part Not Listed?
product name

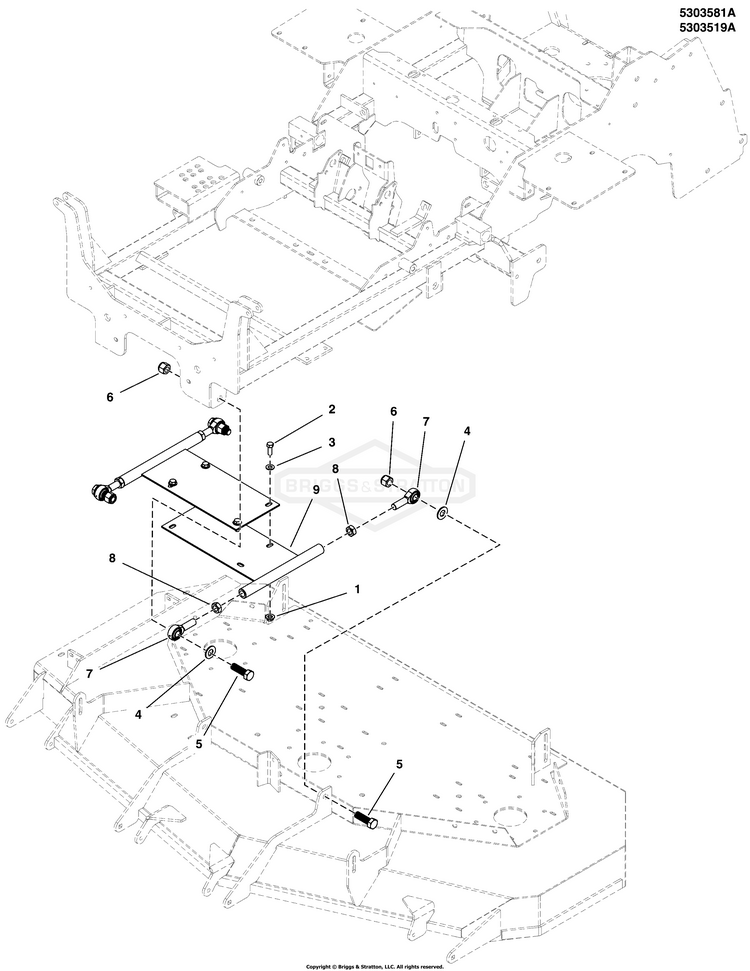

Deck Lift Group - Puller Bar

...
...
1
NUT, 3/8-16 HEX SERRA BS-5025128SM
...
2
BOLT, 3/8-16 X 1" GD5 BS-5025013X8SM
...
3
WASHER, 3/8" BS-5025293SM
...
4
WASHER, 5/8" SAE BS-5025281SM
...
5
BOLT, 5/8-11 X 2 BS-5025019X16YP
...
6
NUT,5/8-11 HEX NYLON BS-5025403YP
...
7
BALL JOINT, 5/8-18 BS-5102683YP
...
8
NUT, 5/8-18 HEX JAM BS-5025454SM
...
9
WELD, DECK STABILIZER BS-5411858AYP
