Ferris 5901391 - IS2100Z Series w/ 61" Mower Deck & ROPS (IS2100ZBV2661 CAL) Zero-Turn Riding Mower

Model: 5901391-IS2100ZSeriesw&ROPS(IS2100ZBV2661CAL)

Back To Assemblies

Save Part Not Listed?
product name

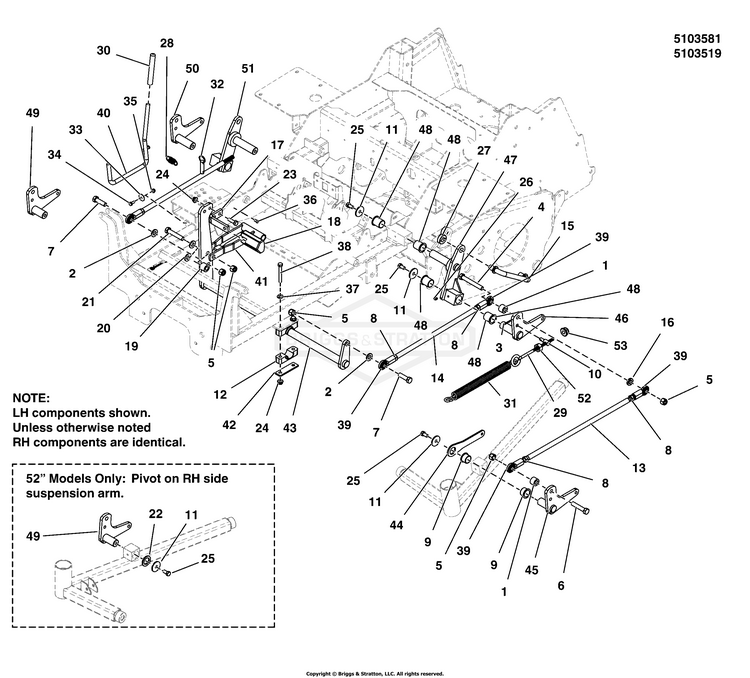

Deck Lift Group S/N: 2017954955 & Below

...
...
1
SPACER, .52 X 1.00 X BS-5045178SM
...
2
WASHER, 1/2" YELLOW BS-5025440SM
...
3
PIN - COTTER (Qty: 1 on 52" Models) BS-5025203X6SM
...
4
BOLT, 1/2-13 X 3-1/2" BS-5025017X28SM
...
5
NUT BS-5025056FS
...
6
BOLT, 1/2-13 X 2-1/2 BS-5025017X20SM
...
7
BOLT, 1/2-13 X 1-3/4 BS-5025017X14YP
...
8
NUT, 1/2-20 HEX JAM BS-5025089SM
...
9
BUSHING, 1.00X1.13X.7 BS-5023356SM
...
10
ADJUSTER - DECK (Qty: 1 on 52" Models) BS-5100380SM
...
11
WASHER - .39X1.50 BS-5100548SM
...
12
PIVOT BLOCK, PLASTIC BS-5100634SM
...
13
ROD, 1/2-20 X 24.50 BS-5104004YP
...
14
ROD, DECK LIFT, 19.25 BS-5103758YP
...
15
ROD, SUSPENSION LINK BS-5103703YP
...
16
SPACER .515X1.00X.218 BS-5100520SM
...
17
PEDAL, FOOT BS-5061569AYP
...
18
PEDAL, RUBBER BS-5104262YP
...
19
SPACER, .52 X 1.00 X BS-5044673SM
...
20
WASHER, 1/2" SAE BS-5025158SM
...
21
BOLT, 1/2-13 X 2-3/4" BS-5025017X22SM
...
22
BUSHING (1 X 10GA, MACHINED, YZ) (52" Models Only) BS-84005968
...
23
BOLT, 3/8-16 X 1-1/4" BS-5025013X10SM
...
24
NUT, 3/8-16 HEX NYLOCK BS-5025394SM
...
25
BOLT - 3/8-16 X 3/4 BS-5025443SM
...
26
GREASE FITTING, 1/4-2 BS-5020095SM
...
27
COLLAR, 5/8" SPLIT BS-5020441SM
...
28
SPRING-EXT, .740 ODX2 BS-5010213YP
...
29
EYE BOLT, 3/8-16 X 8" (Qty: 1 on 52" Models) BS-5021811SM
...
30
GRIP, FOAM BS-5021880SM
...
31
SPRING, DECK LIFT ASS (Qty: 1 on 52" Models) BS-5023355SM
...
32
PIN, HITCH, 1/2 X 2.0 BS-5023498SM
...
33
WASHER, 1/4 FENDER BS-5025288YP
...
35
NUT BS-5025391FS
...
36
PIN, CLEVIS, 1/4 X 1/ BS-5025212X4SM
...
37
WASHER BS-5025156FS
...
38
BOLT, 3/8-16 X 2-3/4" BS-5025013X22SM
...
39
JOINT-BALL .500-20 TH BS-1702779SM
...
40
ROD, Lift BS-5410317AAFS
...
41
ARM-LINK BS-5104133YP
...
42
PLATE, Support BS-84012634
...
43
SHAFT BS-5410897BFS
...
44
MOUNT, SPRING, DECK LIFT - BLK (Qty: 1 on 52" Models) BS-84002186
...
45
LEVER, Lift BS-5401661BFS
...
46
DECK LIFT LEVER, LH BS-5401671AYP
...
47
ARM, LINK BS-5105172YP
...
48
BUSHING, 1.00 X 1.13 BS-5023343SM
...
49
LEVER, LIFT BS-5401662BFS
...
50
DECK LIFT LEVER, RH BS-5401672AYP
...
51
ARM, LINK BS-5105173YP
...
52
NUT, HEX, 3/8-16 (Qty: 1 on 52" Models) BS-703577
...
53
NUT, 3/8-16 HEX NYLON (Qty: 1 on 52" Models) BS-5025096SM
