Ferris 5901391 - IS2100Z Series w/ 61" Mower Deck & ROPS (IS2100ZBV2661 CAL) Zero-Turn Riding Mower

Model: 5901391-IS2100ZSeriesw&ROPS(IS2100ZBV2661CAL)

Back To Assemblies

Save Part Not Listed?
product name

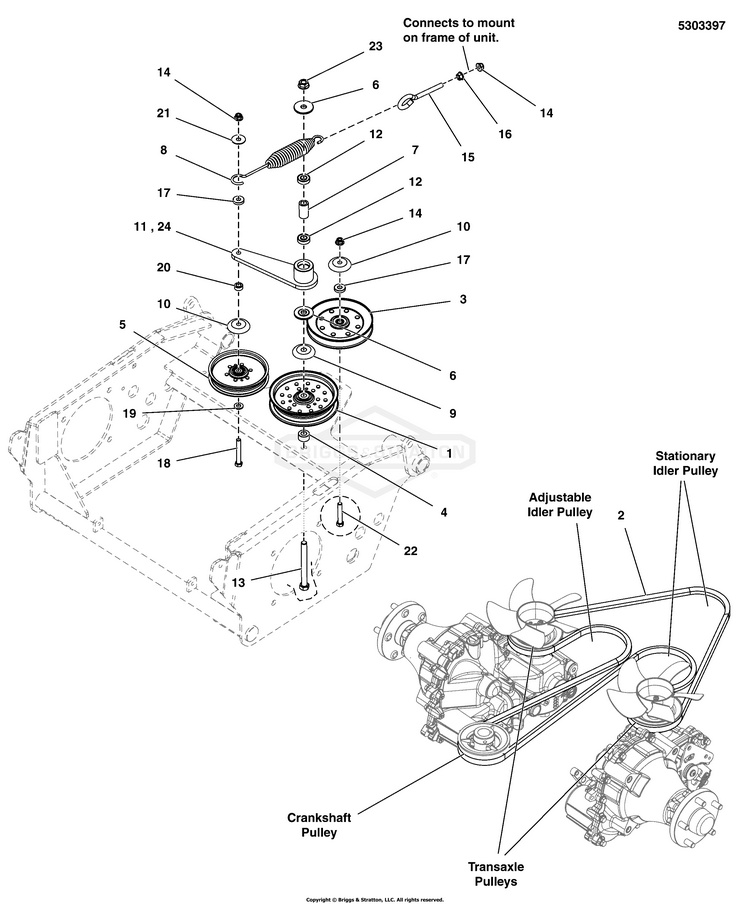

Transaxle Drive Group

...
...
1
PULLEY w/Shield BS-84012672
...
2
BELT, B-SEC, 123"EL BS-5103907YP
...
3
PULLEY-IDLER-V BS-5102093YP
...
4
SPACER BS-5101162YP
...
5
PULLEY w/ Shield BS-84012665
...
6
SPACER, IDLER ARM BS-5103262YP
...
7
SPACER, .52 X .84 X 1 BS-5103812YP
...
8
SPRING, EXTENSION (Coil-to-coil measurement: 6-3/4") BS-5100632YP
...
9
SHIELD, PULLEY BS-5101103SM
...
10
SHIELD, BRNG PULLEY BS-5103787YP
...
12
BEARING, BALL, AXLE BS-7078243YP
...
13
BOLT, 1/2-13 X 5" GD5 BS-5025017X40SM
...
14
NUT, 3/8-16 HEX NYLOCK BS-5025394SM
...
15
EYE BOLT, 3/8-16 X 5" BS-5023497SM
...
16
NUT, 3/8-16 HEX SERRA BS-5025128SM
...
17
SPACER, .39 X 1.00 X BS-5044960SM
...
18
BOLT, 3/8-16 X 2-3/4" BS-5025013X22SM
...
19
WASHER, 3/8" BS-5025293SM
...
20
SPACER BS-5046860SM
...
21
WASHER, 3/8" FENDER BS-5025165SM
...
22
BOLT, 3/8-16 X 2-1/4" BS-5025013X18SM
...
23
NUT BS-770225
...
24
ARM, PUMP DRIVE IDLER (S/N: 2016777878 & Above) BS-5412787AYP
