Ferris 5901391 - IS2100Z Series w/ 61" Mower Deck & ROPS (IS2100ZBV2661 CAL) Zero-Turn Riding Mower

Model: 5901391-IS2100ZSeriesw&ROPS(IS2100ZBV2661CAL)

Back To Assemblies

Save Part Not Listed?
product name

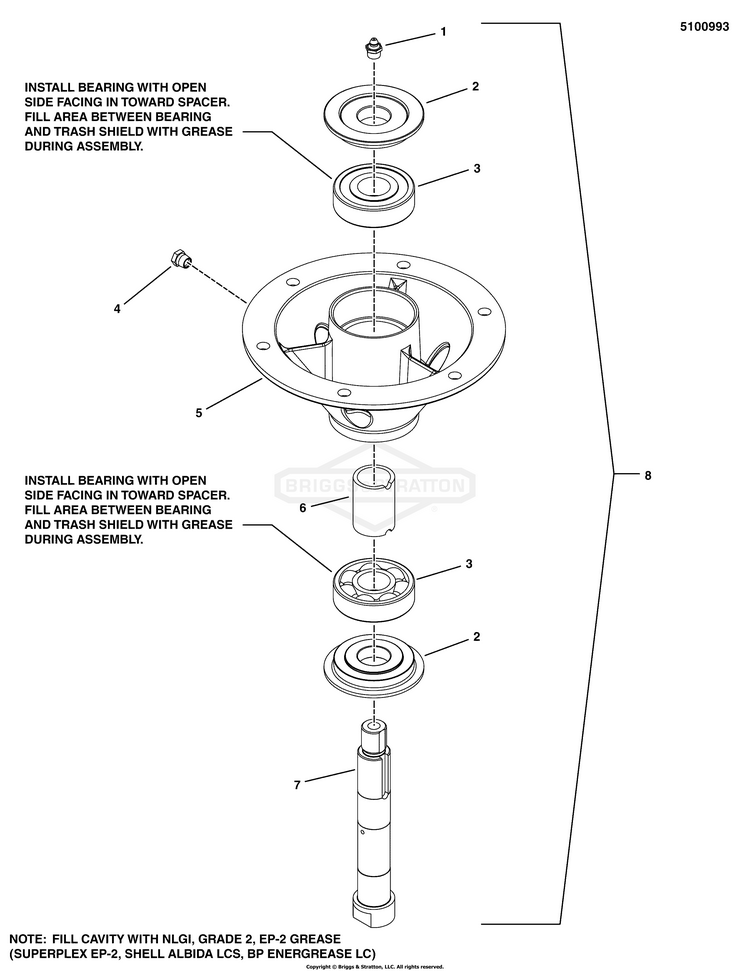

Spindle Service Parts - 5100993

...
...
1
FITTING BS-5023329SM
...
2
SHIELD, TRASH BS-5049793SM
...
3
BEARING, .98 X 2.44 X BS-5023330SM
...
4
FITTING, RELIEF, 1-5 BS-5023296SM
...
5
HOUSING, SPINDLE BS-5101048SM
...
6
SPACER BS-5061099SM
...
7
SHAFT, SPINDLE BS-5061098SM
...
8
SPINDLE ASSY (Includes Ref No. 1 - 7) BS-5100993SM
