Ferris 5901335 - TURBO-Pro MAX Blower Attachment

Model: 5901335 - TURBO-Pro MAX Blower

Back To Assemblies

Save Part Not Listed?
product name

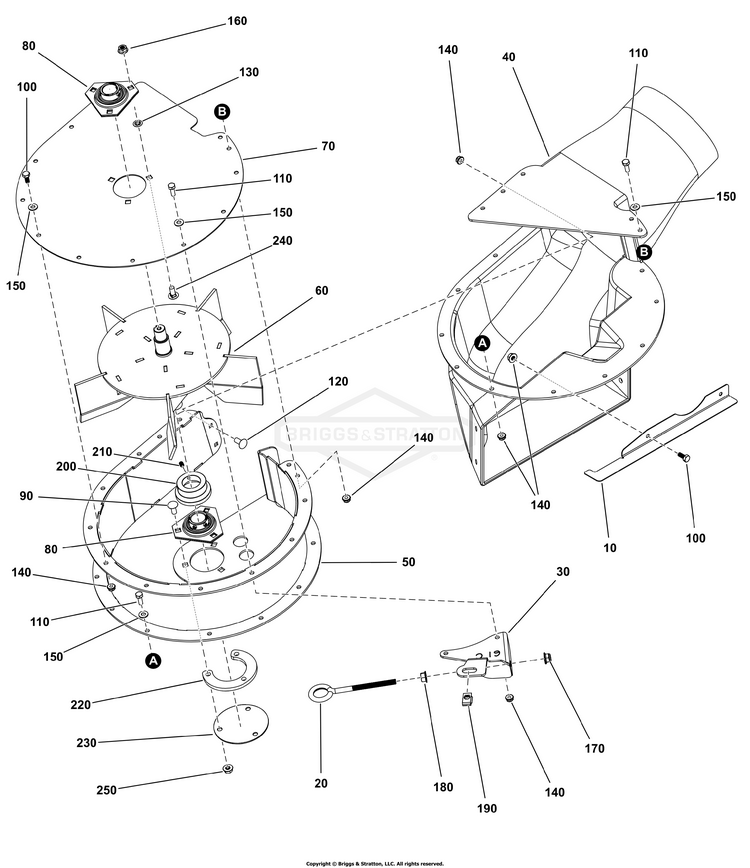

Blower Group, TURBO-Pro MAX S/N: 11/04/2021 and Later

...
...
10
BRACKET, ADAPTER SEAL, COM BLOWER - BLK BS-5412471AA
...
20
EYE BOLT, 3/8-16 X 4- BS-5021812SM
...
30
WELD, SPRING ANCHOR, COM - BLK BS-5411115AA
...
40
HOUSING, Blower BS-84008103
...
50
WELD, FAN CAGE, BLOWER - BLK BS-5411079AA
...
60
IMPELLER BS-84007864
...
70
PLATE, FAN, TOP - BLK BS-5411077AA
...
80
BEARING, FLANGE (Torque set screws to 87 in-lbs (9.8 Nm). Use Loctite 271 Threadlocker on threads). BS-5110099FS
...
90
BOLT, 5/16-18 X 1", C BS-5025145X8SM
...
100
BOLT, 1/4-20 X 1", GD BS-5025010X8SM
...
110
BOLT, 1/4-20 X 3/4" G BS-5025010X6SM
...
120
BOLT, 1/4-20X.750, SQ BS-703575
...
130
RETAINER, GR5, 5/16 BS-703297
...
140
NUT BS-5025391FS
...
150
WASHER BS-703332
...
160
NUT, 5/16-18 HEX SERR BS-5025127SM
...
170
NUT, 3/8-16 HEX NYLOCK BS-5025394SM
...
180
NUT, 3/8-16 HEX SERRA BS-5025128SM
...
190
BODY CLIP, 5/16-18 X BS-5022308SM
...
200
GUARD BS-84008050
...
210
SET SCREW, 1/4-20 X 3/8, KNURLED CUP (Torque to 87 in-lbs (9.8 Nm). Use Loctite 271 Threadlocker on threads). BS-5110109
...
220
PLATE, SPACER BS-84008052
...
230
PLATE, COVER BS-84008053
...
240
BOLT, Round Head, Short Square Neck BS-703185
...
250
NUT BS-703115
