Ferris 5901335 - TURBO-Pro MAX Blower Attachment

Model: 5901335 - TURBO-Pro MAX Blower

Back To Assemblies


product name

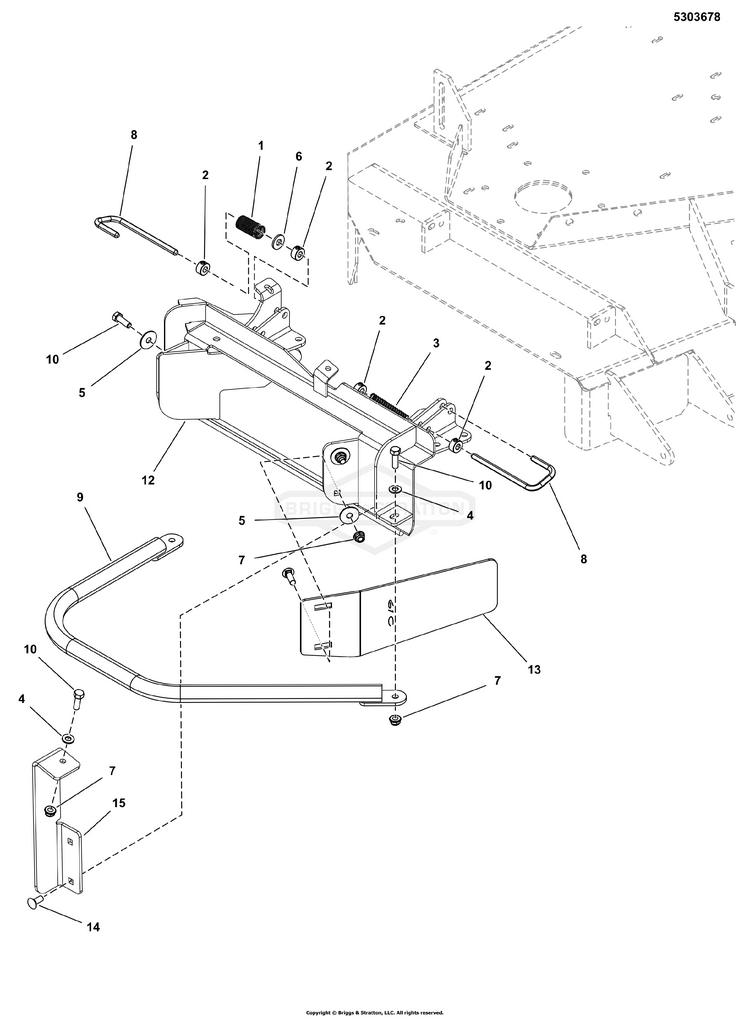

Blower Mount Group - 61" Mower Decks, TURBO-Pro MAX

...
...
1
SPRING-COMP 0.880ODX (Date of Manufacture: Before 11/02/2021) BS-1709660SM

...
1
SPRING-COMP, .375IDX2 (Date of Manufacture: After 11/03/2021) BS-5020637YP

...
2
COLLAR, 5/16" SET BS-5020047SM

...
3
SPRING-COMP, .375IDX2 BS-5020637YP

...
4
WASHER (Qty: 4 - Date of Manufacture: Before 11/02/2021) BS-703350

...
5
WASHER, 5/16" FENDER BS-5025164SM

...
6

...
7
NUT (Qty: 5 - Date of Manufacture: Before 11/02/2021) BS-703115


...
9
WELD, NERF BAR, 61" T-MAX - BLK BS-5412625AA

...
10
BOLT (Qty: 5 - Date of Manufacture: Before 11/02/2021) BS-5025011X8FS

...
11
BOLT, 5/16-18 X 1", C BS-5025145X8SM

...
12
WELD, ADAPTER, 61" COM - BLK (Date of Manufacture: Before 11/02/2021) BS-5411112AA

...
12
WELD, ADAPTER, 61" TMAX-BLK (Date of Manufacture: After 11/03/2021) BS-5422377AA

...
13
BAFFLE, Front (Date of Manufacture: Before 11/02/2021) BS-84008397

...
13
BAFFLE, Front (Date of Manufacture: After 11/03/2021) BS-84008397

...
14
BOLT, 5/16-18 X 3/4", (Date of Manufacture: After 11/03/2021) BS-5025145X6SM

...
15
BRACKET (Date of Manufacture: After 11/03/2021) BS-84008034
Schematic Image Zoomed
