Ferris 5901335 - TURBO-Pro MAX Blower Attachment

Model: 5901335 - TURBO-Pro MAX Blower

Back To Assemblies

Save Part Not Listed?
product name

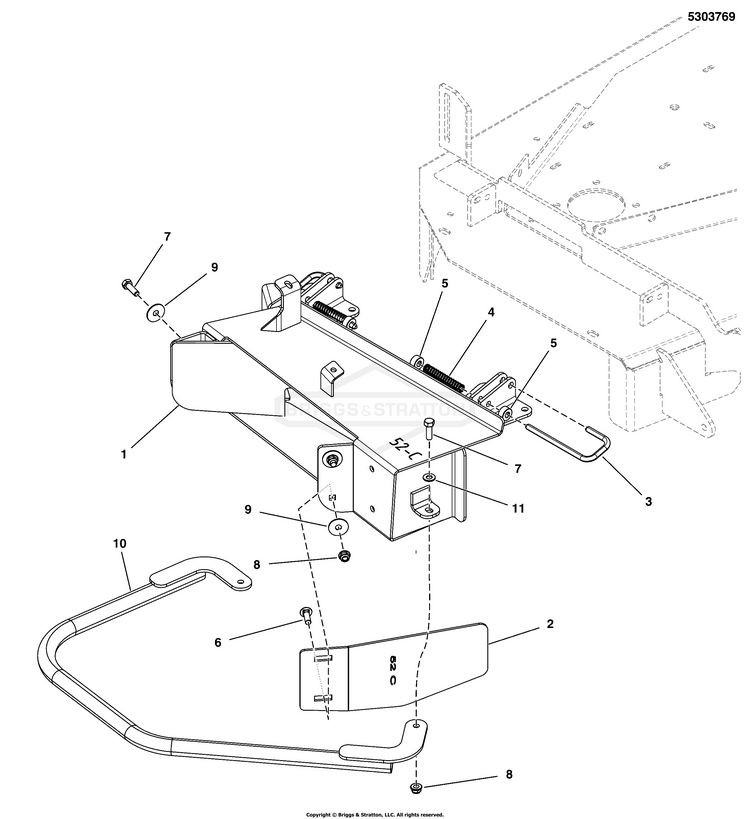

Blower Mount Group - 52" Mower Decks, TURBO-Pro MAX

...
...
1
ADAPTER BS-84008099
...
2
PLATE, Baffle BS-84008100
...
3
ROD BS-5104203FS
...
4
SPRING-COMP, .375IDX2 BS-5020637YP
...
5
COLLAR, 5/16" SET BS-5020047SM
...
6
BOLT, 5/16-18 X 1", C BS-5025145X8SM
...
7
BOLT BS-5025011X8FS
...
8
NUT BS-703115
...
9
WASHER, 5/16" FENDER BS-5025164SM
...
10
BAR BS-84008101
...
11
WASHER BS-703350
