Ferris 5901250 - TURBO-Pro Blower Attachment

Model: 5901250 - TURBO-Pro Blower

Back To Assemblies

Save Part Not Listed?
product name

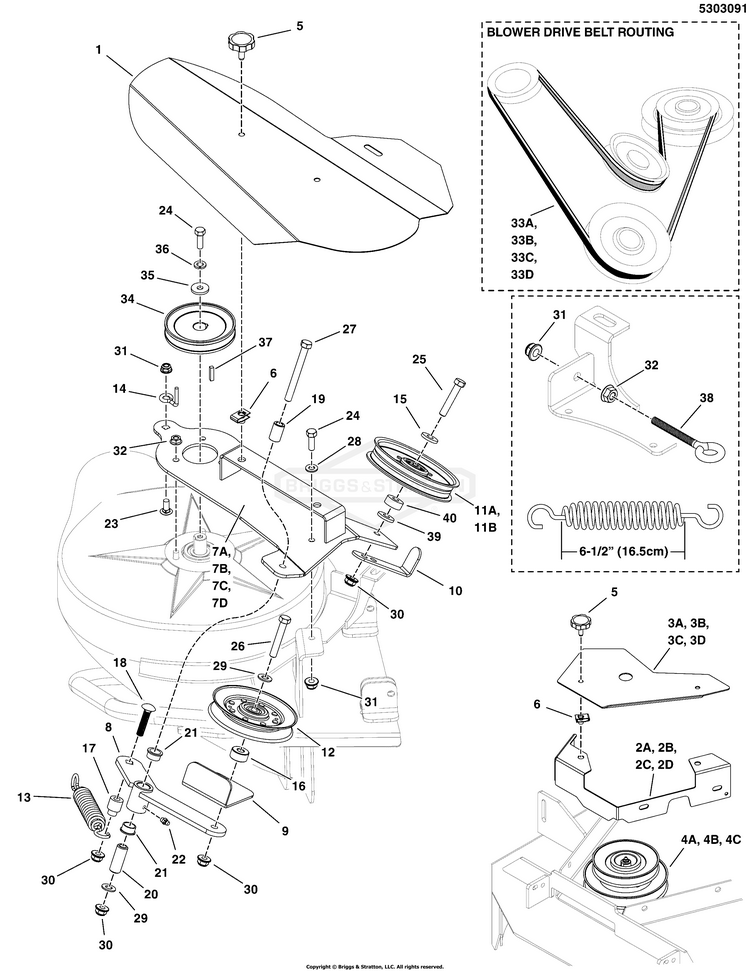

Blower Pulley Group, TURBO-Pro

...
...
1
HOOD ASSEMBLY BS-5600614YP
...
2a
GUARD (All 48" Decks; All other 52" Decks) BS-5409534AYP
...
2b
GUARD (S175XY20-52"; IS1500ZX-52"; IS2000Z-52", IS2500ZY20-52"; IS2100Z-52") BS-5409633AYP
...
2c
GUARD (44" Mower Decks) BS-5409545AYP
...
2d
GUARD, PULLEY (61" Mower Decks) BS-84012937
...
3a
PLATE (All 48" Decks; All other 52" Decks) BS-5409536AYP
...
3b
PLATE, GUARD (S175XY20-52"; IS1500ZX-52"; IS2000Z-52", IS2500ZY20-52"; IS2100Z-52") BS-5409634AYP
...
3c
PLATE, GUARD (44" Mower Decks) BS-5409546AYP
...
3d
PLATE, TOP GUARD, 61" - BLK (61" Mower Decks) BS-5410223AA
...
4a
PULLEY, DOUBLE (52" Mower Decks) BS-5103468YP
...
4b
PULLEY, BLOWER 48" DE (48" & 44" Mower Decks) BS-5023176SM
...
4c
PULLEY, Double (61" Mower Decks) BS-5103682FS
...
5
KNOB, 5/616-18 X 1 BS-5101731YP
...
6
NUT, SPEED, 5/16-18 L BS-1935255SM
...
7a
PULLEY ASSEMBLY (52" Mower Decks) BS-84008881
...
7b
PULLEY ASSEMBLY (48" Mower Decks) BS-84008880
...
7c
ASSEMBLY, PULLEY PLATE, 44" (44" Mower Decks) BS-5409886
...
7d
PULLEY ASSEMBLY (61" Mower Decks) BS-84008882
...
8
ARM-IDLER (Includes Bushings and Fitting) BS-5409892YP
...
9
RETAINER BS-5409609AFS
...
10
RETAINER (Refer to Note: *) BS-5409610AFS
...
11a
PULLEY, FLAT IDLER, 5 (52" Mower Decks) BS-5101193YP
...
11b
PULLEY, Idler (48", 44", & 61" Mower Decks) BS-1725408SM
...
12
PULLEY-IDLER-V, 4.85OB, .38ID BS-5103456YP
...
13

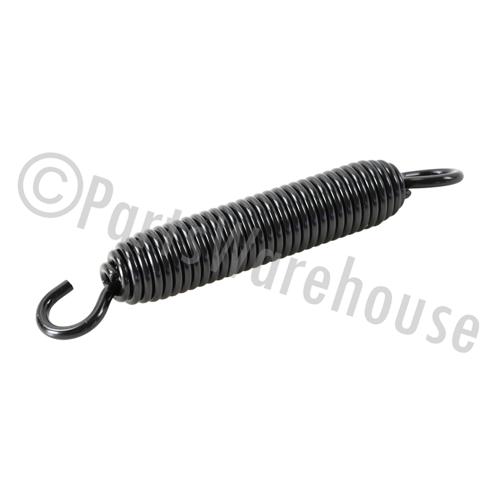

SPRING, EXTENSION, SW BS-5022847SM
...
14
KEEPER BS-5103488YP
...
15
WASHER BS-704128
...
16
SPACER BS-5046860SM
...
17
SPACER,3/8X3/4X15/16 BS-1706644SM
...
18
BOLT, 3/8-16X1.75 BS-703858
...
19
SPACER BS-5101933YP
...
20
SPACER BS-5102322YP
...
21
BUSHING-0.628IDX BS-1676148SM
...
22
GREASE FITTING, 1/4-2 BS-5020095SM
...
23
BOLT, 5/16-18 X 3/4", BS-5025145X6SM
...
24
BOLT BS-5025011X8FS
...
25
CAPSCREW, 3/8-16X2 BS-703589
...
26
BOLT, 3/8-16 X 2-1/4" BS-5025013X18SM
...
27
BOLT, 3/8-16 X 3-1/2" BS-5025013X28SM
...
28
WASHER BS-703350
...
29
WASHER BS-5025156FS
...
30
NUT, 3/8-16 HEX NYLOCK BS-5025394SM
...
31
NUT BS-703115
...
32
NUT, 5/16-18 HEX SERR BS-5025127SM
...
33a
BELT, #7-7168 (52" Mower Decks) BS-5022931SM
...
33b
BELT (48" Mower Decks) BS-5105189YP
...
33c
BELT, #7-7169 (44" Mower Decks) BS-5022918SM
...
33d
BELT (61" Mower Decks) BS-5103805YP
...
34
PULLEY BS-5103454YP
...
35
WASHER, 5/16 BS-703298
...
36
WASHER, 5/16" LOCK BS-5025170SM
...
37
KEY, SQUARE BS-5050403X4YP
...
38
EYE BOLT, 5/16-18 X 3 BS-5025141X26YP
...
39
WASHER, 3/8" FENDER (48", 44", & 61" Mower Decks) BS-5025165SM
...
40
SPACER (48", 44", & 61" Mower Decks) BS-1667811SM
