Ferris 5900933 - Procut S Series (H2226KAVFS) Wheel Riding Mower

Model: 5900933 - Procut S Series (H2226KAVFS)

Back To Assemblies

Save Part Not Listed?
product name

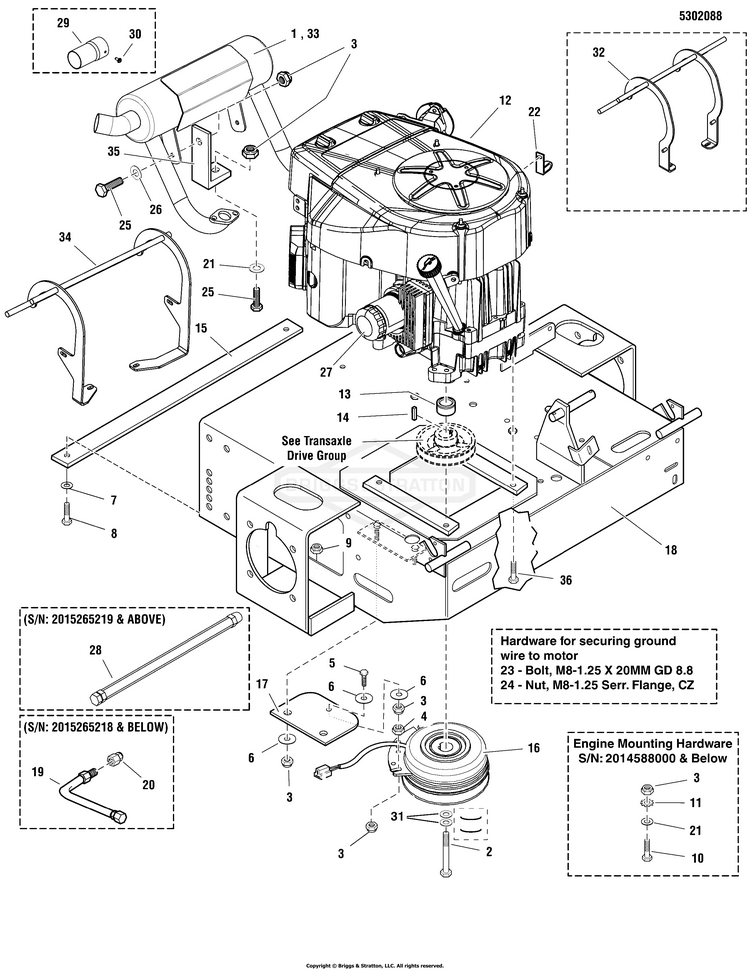

Engine & PTO Group - Kawasaki FS Series

...
...
2
BOLT, CRANKSHAFT, 7/16 (Refer to Note: *) BS-5102865YP
...
3
NUT (Qty: 6 - S/N: 2014588000 & Below) BS-703115
...
4
NUT, 5/16-18 HEX SERR BS-5025139SM
...
5
BOLT, 5/16-18 X 2-1/4 BS-5025055X18YP
...
6
WASHER, .34 X 1.25 X BS-5044617SM
...
7
WASHER, 1/2" YELLOW BS-5025440SM
...
8
BOLT, 1/2-20 X 1-1/4" GD8 CZ BS-5025018X10SM
...
9
NUT, 1/2-20 HEX NYLON BS-5025098SM
...
10
BOLT, FLANGE (S/N: 2014588000 & Below) BS-84003591
...
11
WASHER, 5/16" INT. TO (S/N: 2014588000 & Below) BS-5025188SM
...
13
SPACER, 1.13 X 1.75 X BS-5100926YP
...
14
KEY, 1/4 SQ X 1-1/4 BS-5050407X10YP
...
15
BAR, Tie BS-5401865BFS
...
16
CLUTCH BS-5105090YP
...
17
CLUTCH ANCHOR PAD BS-5043636SM
...
18
WELD, ENGINE DECK, TWR - RED BS-5403916B
...
19
HOSE, OIL DRAIN BS-5048681SM
...
20
ADAPTER, OIL DRAIN BS-5022234SM
...
21
WASHER (Qty: 6 - S/N: 2014588000 & Below) BS-703350
...
22
CLAMP (Mounts to engine) BS-5021500FS
...
23
CAPSCREW M8-1.25X16 BS-703988
...
24
NUT, M8-1.25 SERR. FL BS-5025355SM
...
25
BOLT BS-5025011X8FS
...
26
WASHER, 5/16" GD.9 FL BS-5025292SM
...
27
OIL FILTER (SV) (Not Shown) BS-5102278X1
...
28
FITTING BS-5103346FS
...
29
EXTENSION, TAILPIPE BS-5104348YP
...
30
SCREW,SELF-TAP,#8-32 BS-5025470YP
...
31

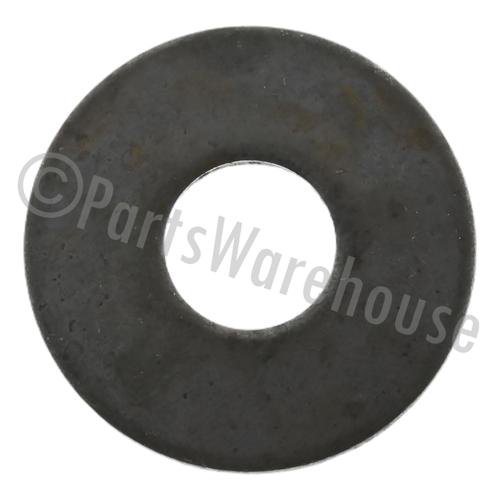

BELLEVILLE WASHER (S/N: 2015745414 & Above) BS-5025585YP
...
32
WELD, MUFFLER GUARD, TWR KAV - BLK (S/N: 2016803539 - 2016879056) BS-5412532A
...
33
MUFFLER (S/N: 2016879057 & Above) BS-5104163FS
...
34
MUFFLER, GUARD (S/N: 2016879057 & Above) BS-5412564AAFS
...
35
BRACKET, MUFFLER (S/N: 2016803538 & Below) BS-5407430BFS
...
36
BOLT, 3/8-16 X 1-3/4, SF, PLT W/PATCH (S/N: 2014588001 & Above) BS-5025570
