Ferris 5900933 - Procut S Series (H2226KAVFS) Wheel Riding Mower

Model: 5900933 - Procut S Series (H2226KAVFS)

Back To Assemblies

Save Part Not Listed?
product name

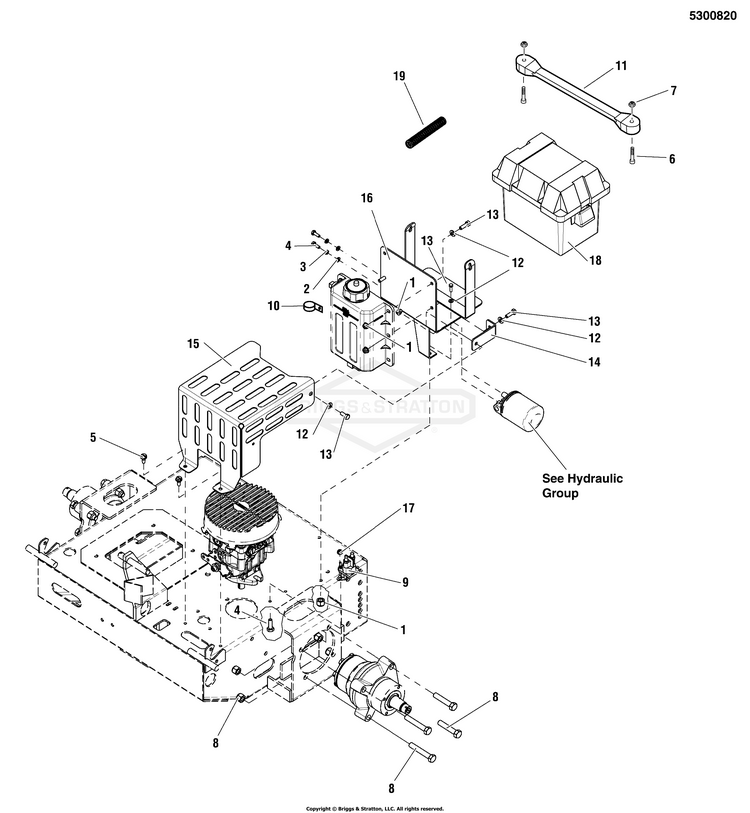

Battery Compartment Group

...
...
1
NUT BS-703115
...
2
WASHER BS-703332
...
3
WASHER BS-5025169FS
...
4
BOLT, 1/4-20 X 3/4" G BS-5025010X6SM
...
5
SCREW, 5/16-18 X .75 BS-703228
...
6
SCREW, #10-24 X 1" RS BS-5025270SM
...
7
NUT BS-5025271FS
...
9
SOLENOID KIT BS-1686981YP
...
10
CLAMP, HOSE, 1.000 DI BS-5023173SM
...
11
STRAP, RUBBER BS-5021670SM
...
12
WASHER BS-703350
...
13
BOLT BS-5025011X8FS
...
14
BRACKET, MUFFLER BS-5407430BFS
...
15
PLATE BS-5402398BFS
...
16
MOUNT BS-5401852BFS
...
17
NUT BS-5025391FS
...
18
BATTERY BOX, W/ DRAIN BS-5100688YP
...
19
WIRE LOOM 1/2 ID X 1 (Installed on positive battery cable that runs from battery to starter) BS-5050833X10YP
