Ferris 5900933 - Procut S Series (H2226KAVFS) Wheel Riding Mower

Model: 5900933 - Procut S Series (H2226KAVFS)

Back To Assemblies

Save Part Not Listed?
product name

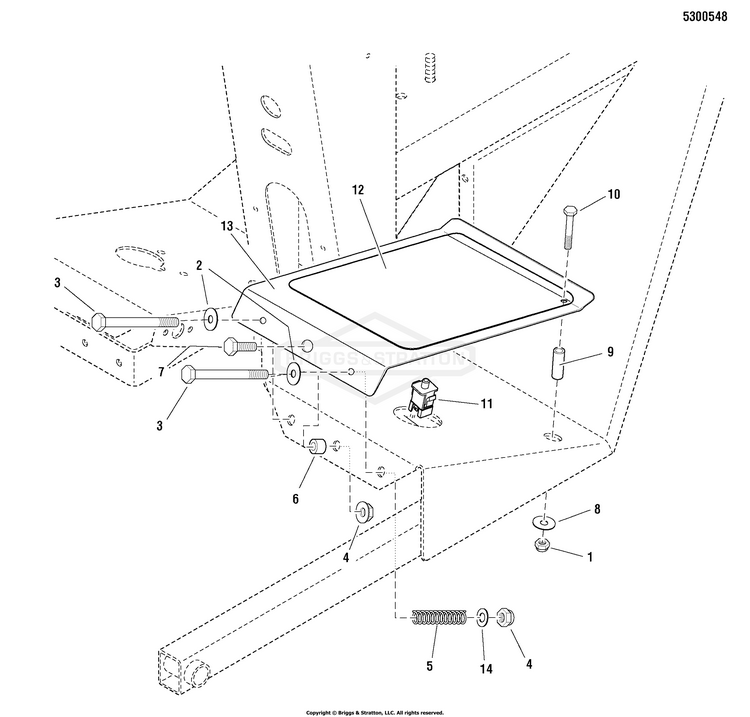

Operator Presence Group

...
...
1
NUT BS-703115
...
2
WASHER BS-5025156FS
...
3
BOLT, 3/8-16 X 3" GD5 BS-5025013X24SM
...
4
NUT, 3/8-16 HEX NYLOCK BS-5025394SM
...
5
SPRING, COMPRESSION BS-5021102SM
...
6
INSERT, BEARING, 17MM BS-5020880SM
...
7
BOLT, 3/8-16 X 1-1/4" BS-5025013X10SM
...
8
WASHER, 5/16" FENDER BS-5025164SM
...
9
BUSHING BS-5043296FS
...
10
BOLT, 5/16-18 BS-5025011X18SM
...
11
SWITCH, DP NO/NC SNAP BS-7022886YP
...
12
WALK, SAFETY BS-5101009FS
...
13
PLATE BS-5401833BFS
...
14
WASHER BS-5025156FS
