Ferris 5900933 - Procut S Series (H2226KAVFS) Wheel Riding Mower

Model: 5900933 - Procut S Series (H2226KAVFS)

Back To Assemblies

Save Part Not Listed?
product name

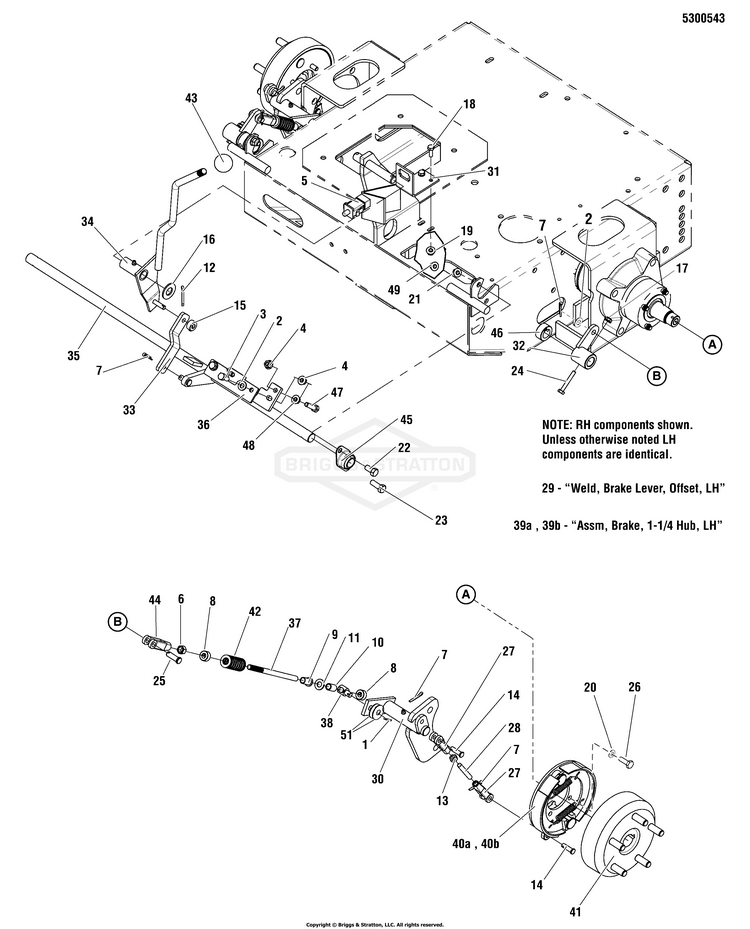

Parking Brake Group

...
...
1
PIN, COTTER, 3/32X.75 BS-703312
...
2
WASHER BS-703350
...
3
BOLT, 5/16-18 X 3/4" BS-5025011X6SM
...
4
NUT, 5/16-18 HEX SERR BS-5025127SM
...
5
SWITCH, DP NO/NC SNAP BS-7022886YP
...
6
NUT, HEX, 3/8-24 BS-703895
...
7
PIN - COTTER BS-5025203X6SM
...
8
COLLAR, 3/8" SET BS-5010546SM
...
9
BUSHING, NYLON BS-5023260SM
...
10
SPACER, .38 X .50 X . BS-5041930SM
...
11
WASHER BS-5025156FS
...
12
PIN, COTTER, 1/8" X 1 BS-5025203X10SM
...
13
NUT BS-5025033FS
...
14
PIN, CLEVIS, 5/16" X BS-5025213X8SM
...
15
COLLAR, 5/16" SET BS-5020047SM
...
16
WASHER, 5/8" SAE BS-5025281SM
...
17
NUT BS-5025391FS
...
18
BOLT, 1/4-20 X 3/4" G BS-5025010X6SM
...
19
NUT BS-5025126FS
...
20
WASHER, 5/16" LOCK BS-5025170SM
...
21
NUT, 3/8-16 HEX NYLOCK BS-5025394SM
...
22
BOLT, 3/8-16 X 3/4" G BS-5025013X6SM
...
23
BOLT, 3/8-16 X 1" GD5 BS-5025013X8SM
...
24
BOLT, 1/4-20 X 1-3/4" BS-5025010X14SM
...
25
PIN - CLEVIS BS-5025214X9SM
...
26

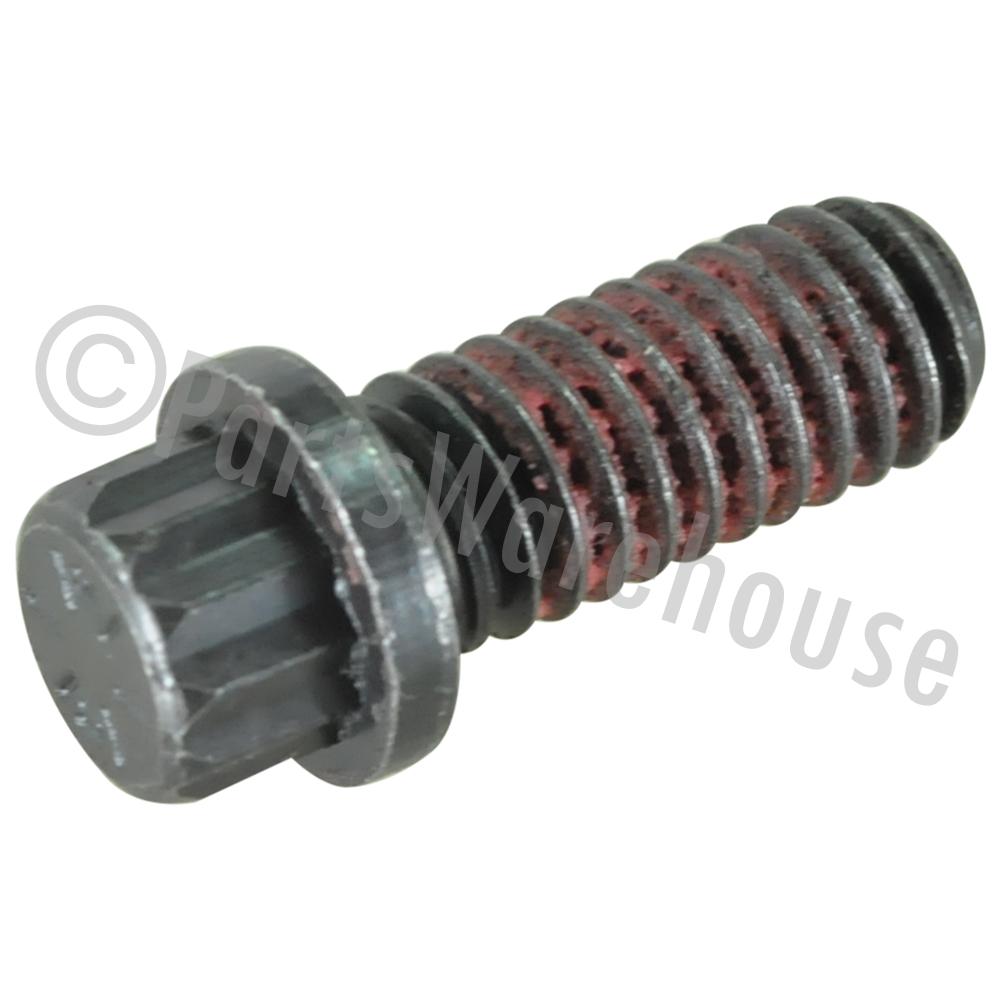

BOLT, 5/16-18 X 3/4 1 BS-5023490SM
...
27
CLEVIS, 5/16-24, STEE BS-5023323SM
...
28
LINK, STUD BS-5047740SM
...
29
LEVER BS-5401849BFS
...
30
LEVER BS-5401848BFS
...
31
BRACKET BS-5400726BFS
...
32
PIVOT BS-5401859BFS
...
33
LINK BS-5044043BFS
...
34
LEVER BS-5030919BFS
...
35
SHAFT, BRAKE BS-5401842BFS
...
36
PLATE BS-5402158BFS
...
37
ROD, Brake BS-5100673FS
...
38
ADJUSTER, BRAKE LINKAGE BS-5100985YP
...
39a
BRAKE SHOE ASM, LH, K (S/N: 2015208612 & Above) BS-5102897YP
...
39b
BRAKE ASSEMBLY, LH (S/N: 2015208611 & Below) BS-5023500SM
...
40a
BRAKE SHOE ASM, RH, K (S/N: 2015208612 & Above) BS-5102898YP
...
40b
BRAKE ASSEMBLY, RH (S/N: 2015208611 & Below) BS-5023501SM
...
41
BRAKE DRUM, 5 BOLT BS-5102896YP
...
42
SPRING, COMPRESSION 2 BS-5022788SM
...
43
KNOB, PLASTIC, 1/2-13 BS-5021733SM
...
44
CLEVIS, 3/8-24 RH BS-5101800YP
...
45
BEARING, BRONZE FLANG BS-5021098SM
...
46
COLLAR BS-5010116FS
...
47
BOLT, 5/16-18 X 1-1/4 BS-5025055X10YP
...
48
NUT, 5/16-18 HEX JAM BS-5025388YP
...
49
NUT, 3/8-16 HEX NYLON BS-5025096SM
...
50
STUD, 30 Tooth Knurl (Not Shown) BS-84010289
...
51
WASHER BS-5100146FS
